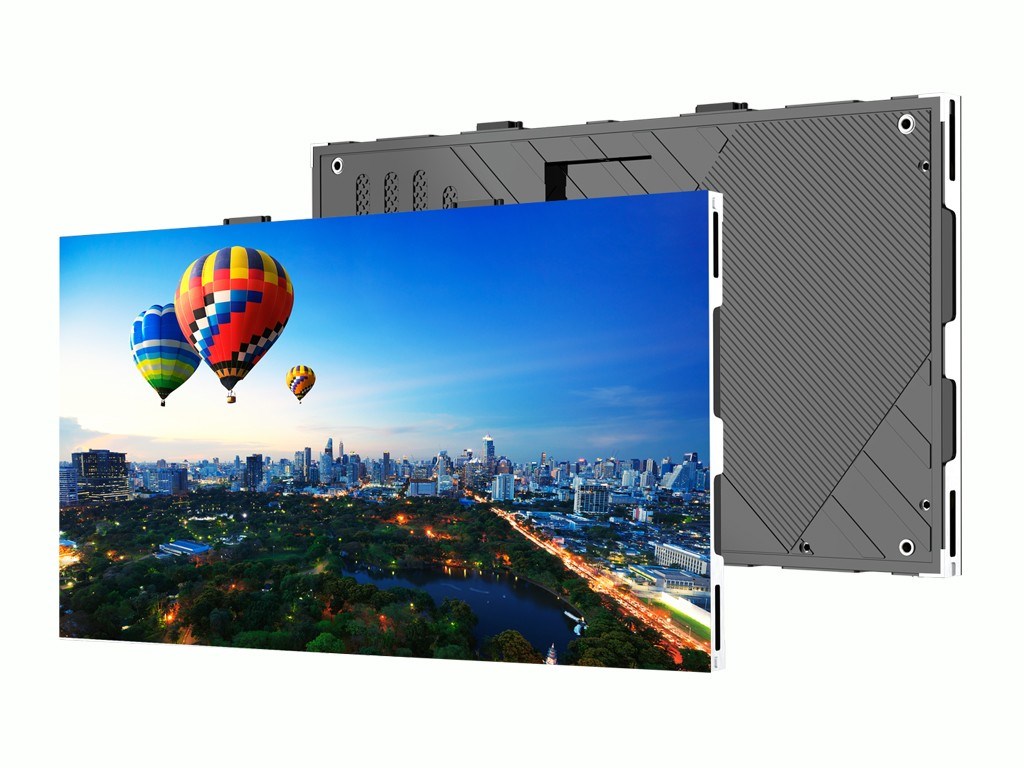

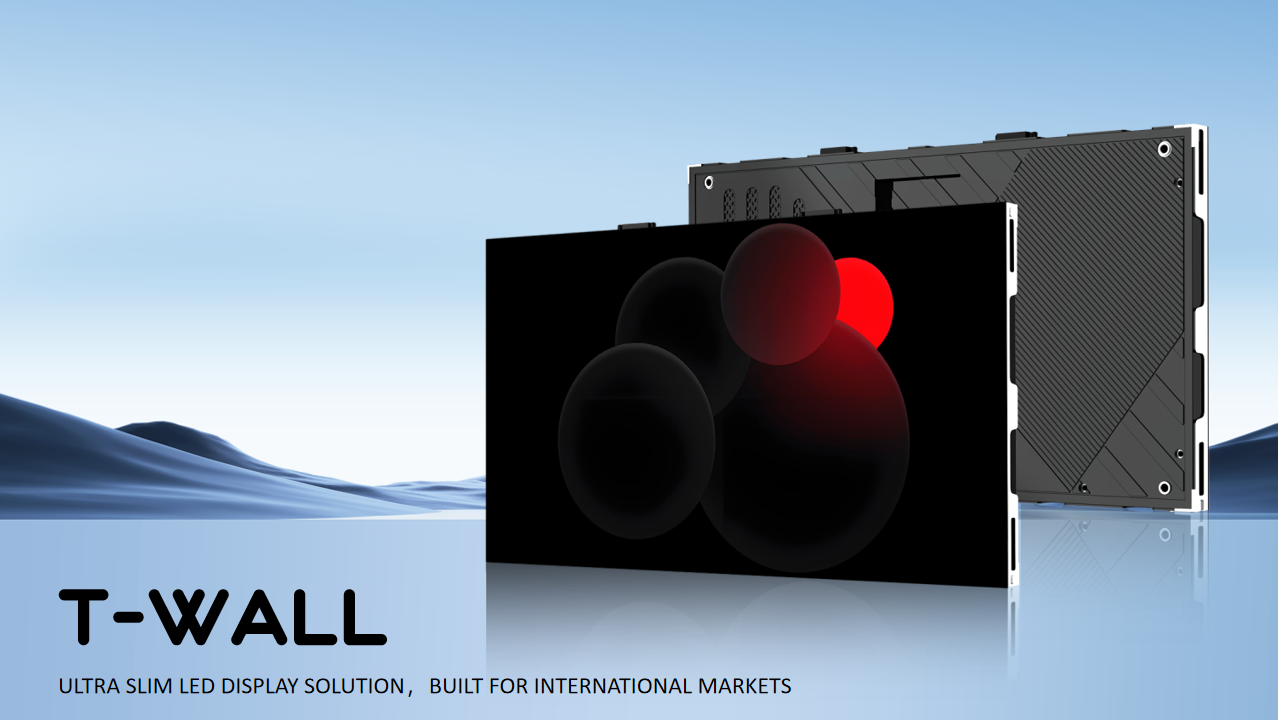

T-Wall Series
P0.78/P0.93/P1.25/P1.56
P0.78/P0.93/P1.25/P1.56

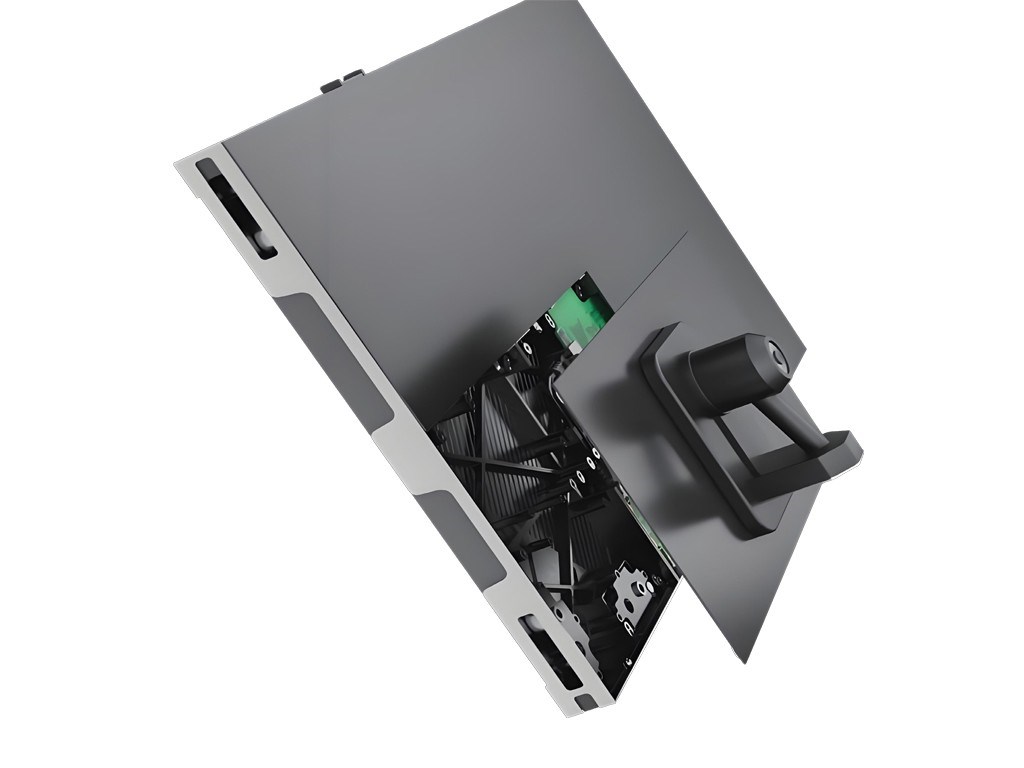

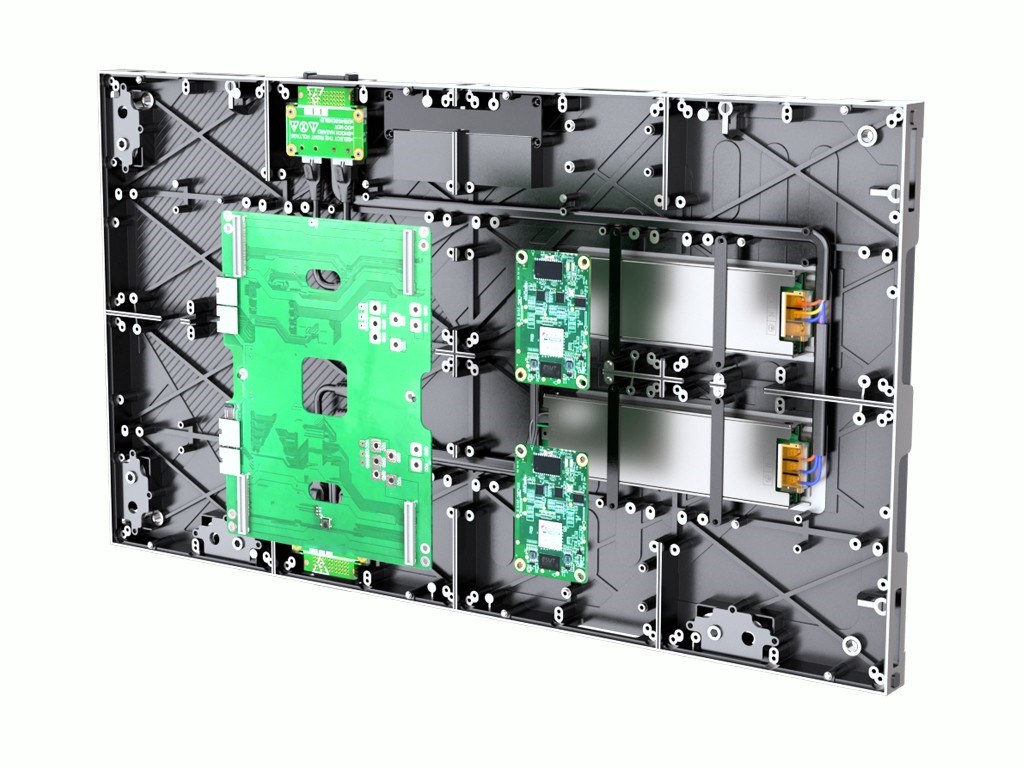

* Full front access design,saving installation space.

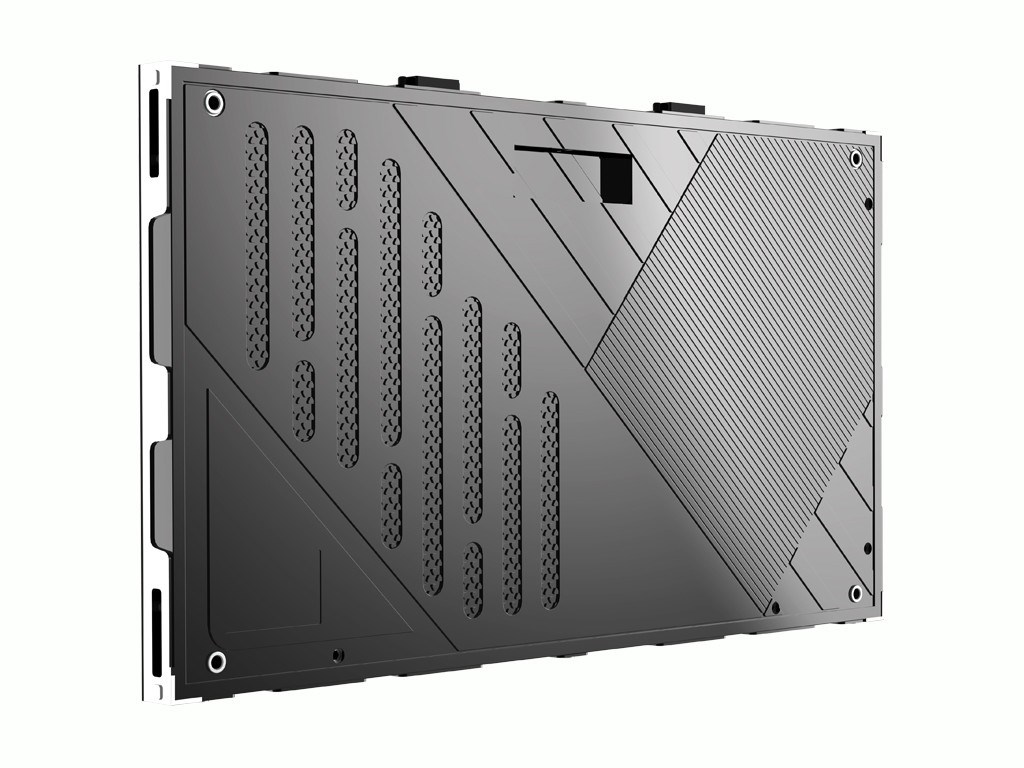

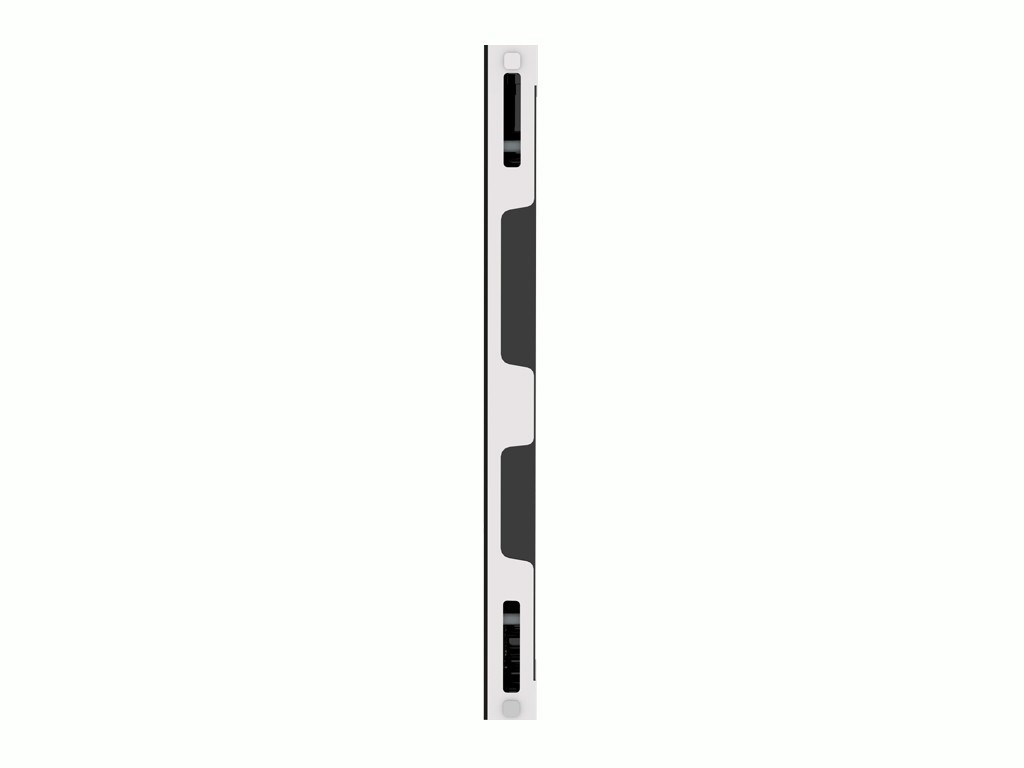

* Ultra-thin cabinet design, only with 28mm thickness.
* Module with magnet, fast installation&uninstallation.
Quantity
-
+
Stock:
0
1
Product Description
Specification download:

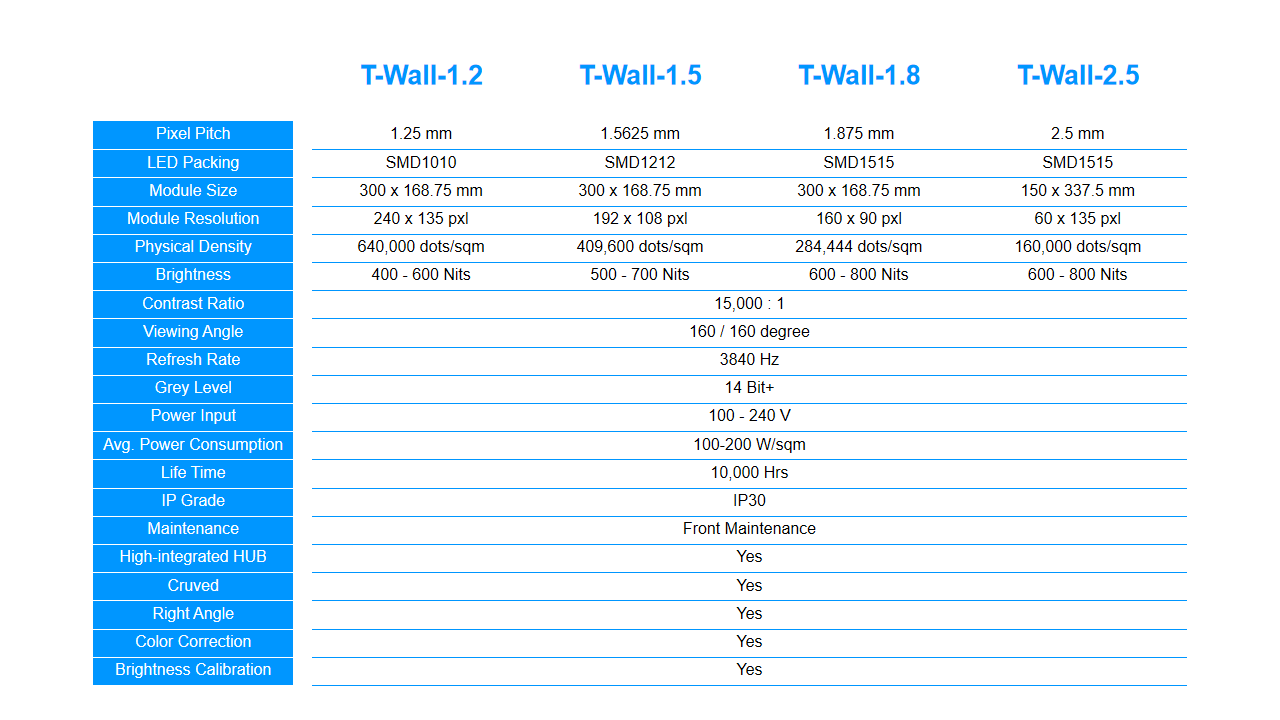

| T wall series LED fine pitch screen | |||||
| Model | T-0.7 | T-0.9 | T-1.2 | T-1.5 | T-1.8 |
| Pixel Pitch | 0.78125 mm | 0.9375 mm | 1.25 mm | 1.5625 mm | 1.875 mm |
| Pixel Density | 1638400 dots/s.qm | 1137778 dots/s.qm | 640000 dots/s.qm | 409600 dots/s.qm | 284444 dots/s.qm |
| LED Type | MIP0606 | MINI 4-in-1 | SMD1010 | SMD1212 | SMD1515 |
| Scan Mode | 1/48 S | 1/30 S | 1/27 S | 1/27 S | 1/45 S |

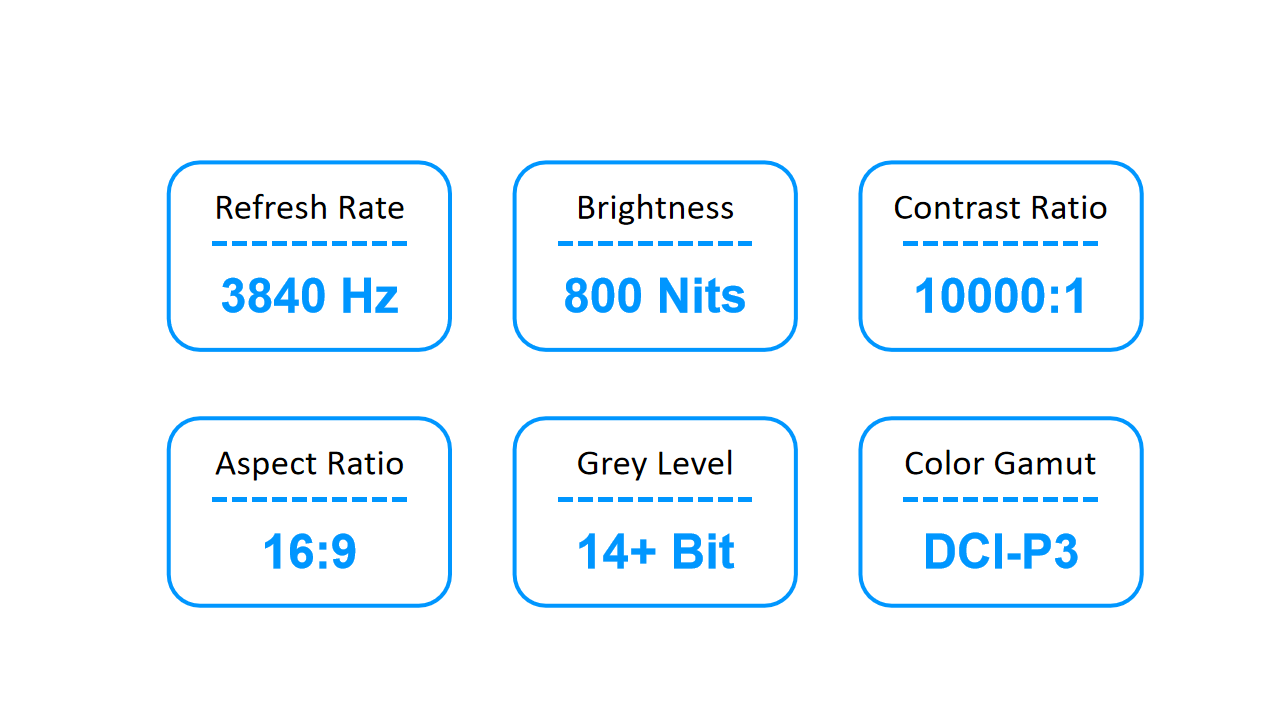

| Refresh Rate | ≥ 3840Hz | ||||
| Module Size | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 150x168.75 mm | 300x168.75 mm |
| Module Resolution | 192x216 pxl | 160x180 pxl | 120x135 pxl | 96x108 pxl | 160x90 pxl |

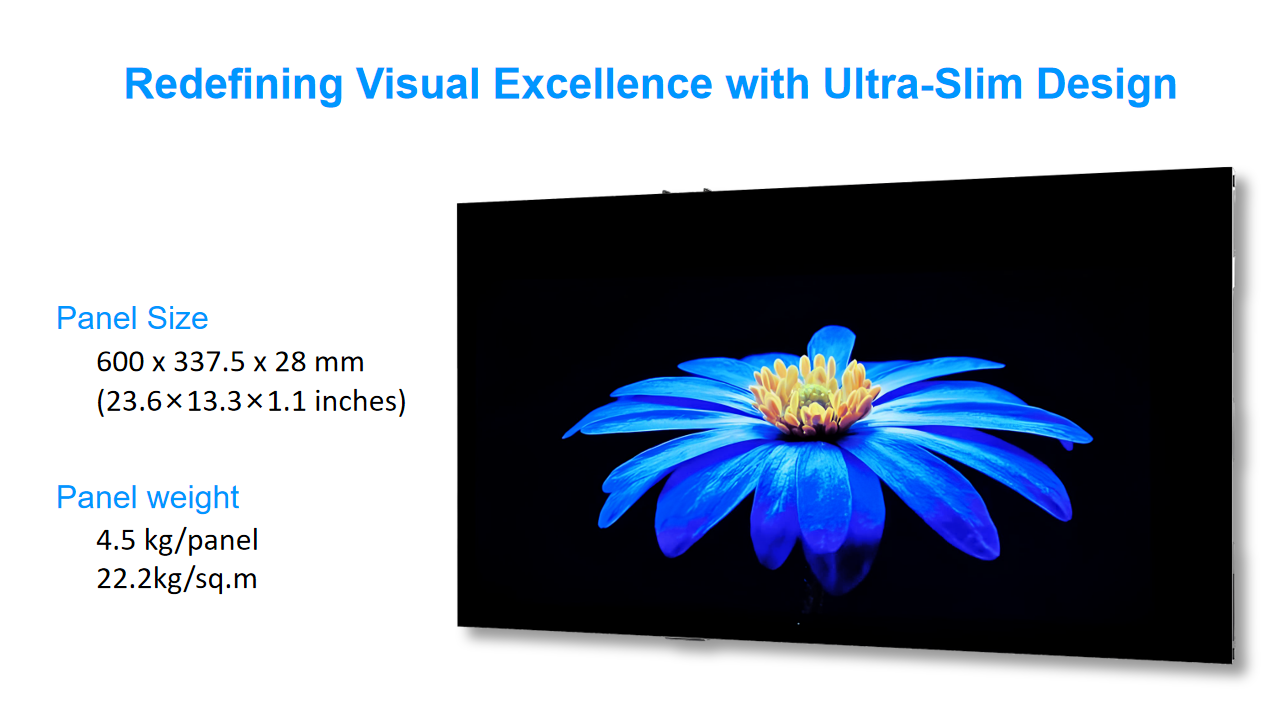

| Cabinet Size | 600x337.5x28 mm | ||||
| Cabinet Resolution | 768x432 pxl | 640x360 pxl | 480x270 pxl | 384x216 pxl | 320x180 pxl |
| Brightness | 300-500 Nits | 300-500 Nits | 400-600 Nits | 400-600 Nits | 500-700 Nits |
| Viewing Angle: (H/V) | 160/160 degree | ||||

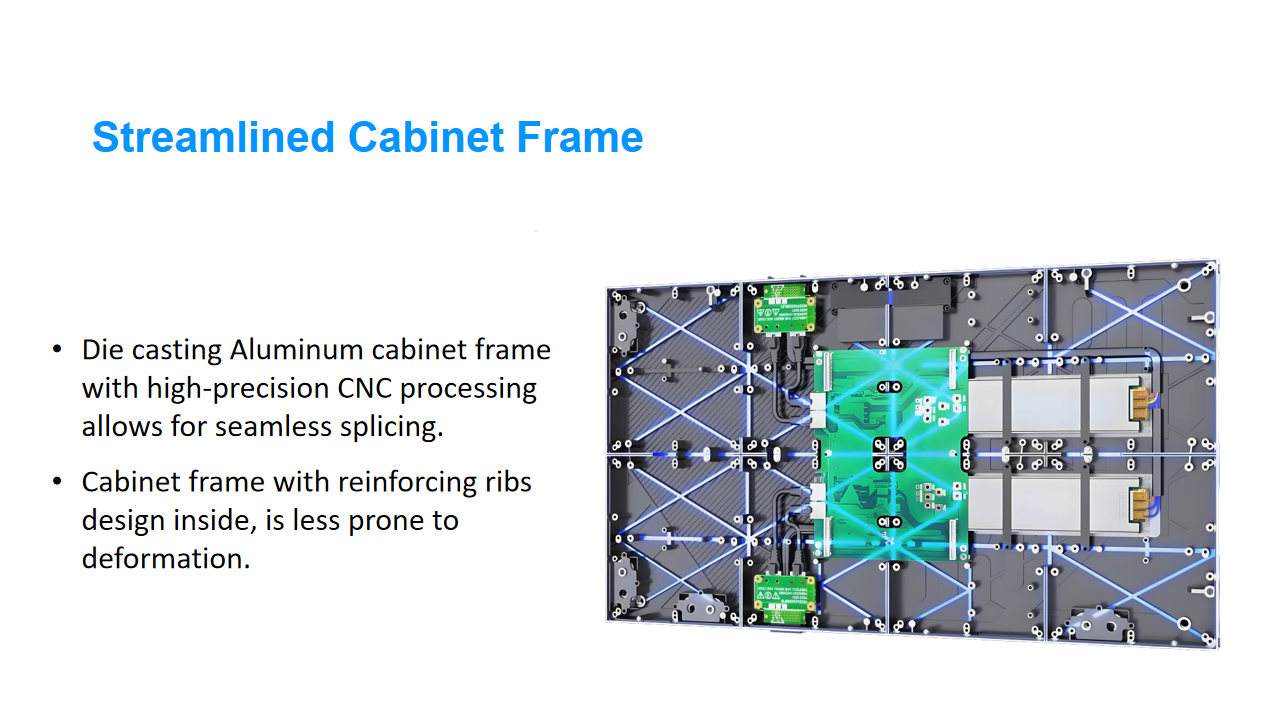

| Cabinet Material | Die-casting Aluminum | ||||
| Cabinet Weight | 4.5 KG | ||||
| Input Voltage: | AC100-240V/50-60Hz | ||||
| Max Power C. | 800 W/s.qm | ||||
| Average Power C. | 150-250 W/s.qm | ||||
| Life Span | ≥ 100,00 Hrs | ||||
| IP Rate | IP63 | ||||

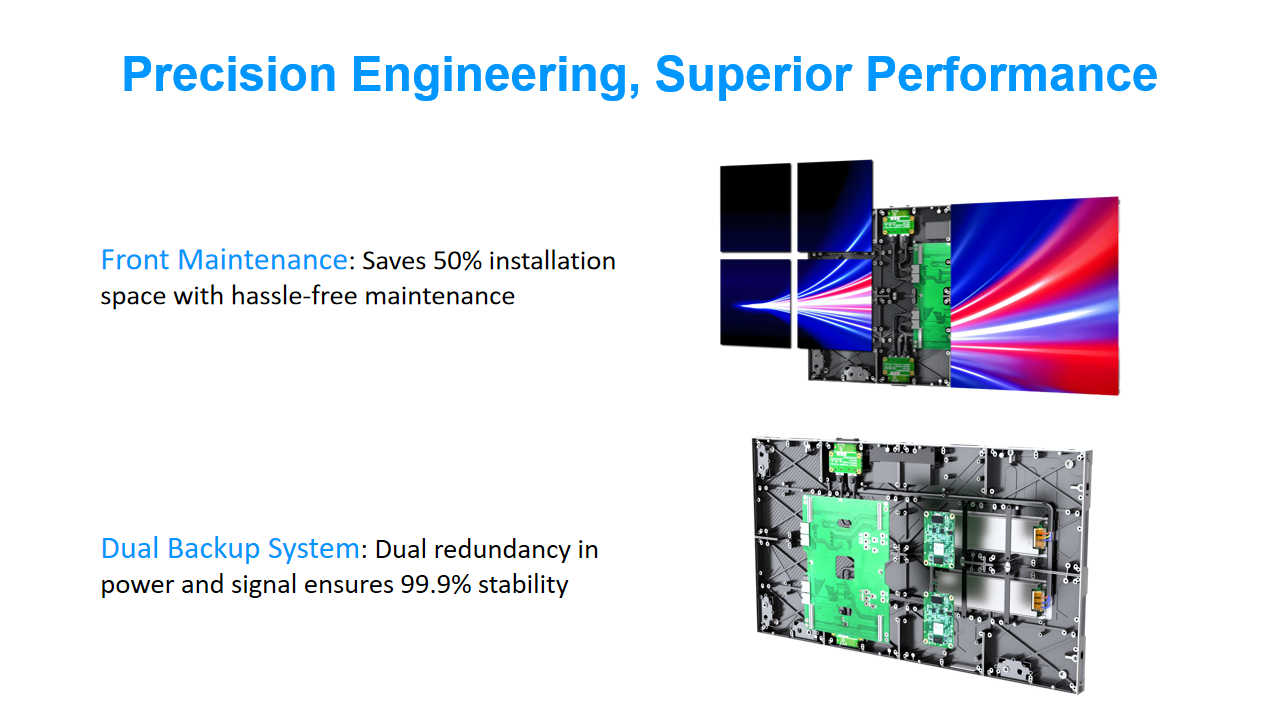

| Maintenance Access | Front access maintenance | ||||
| Max Stacking | 20 panels | ||||

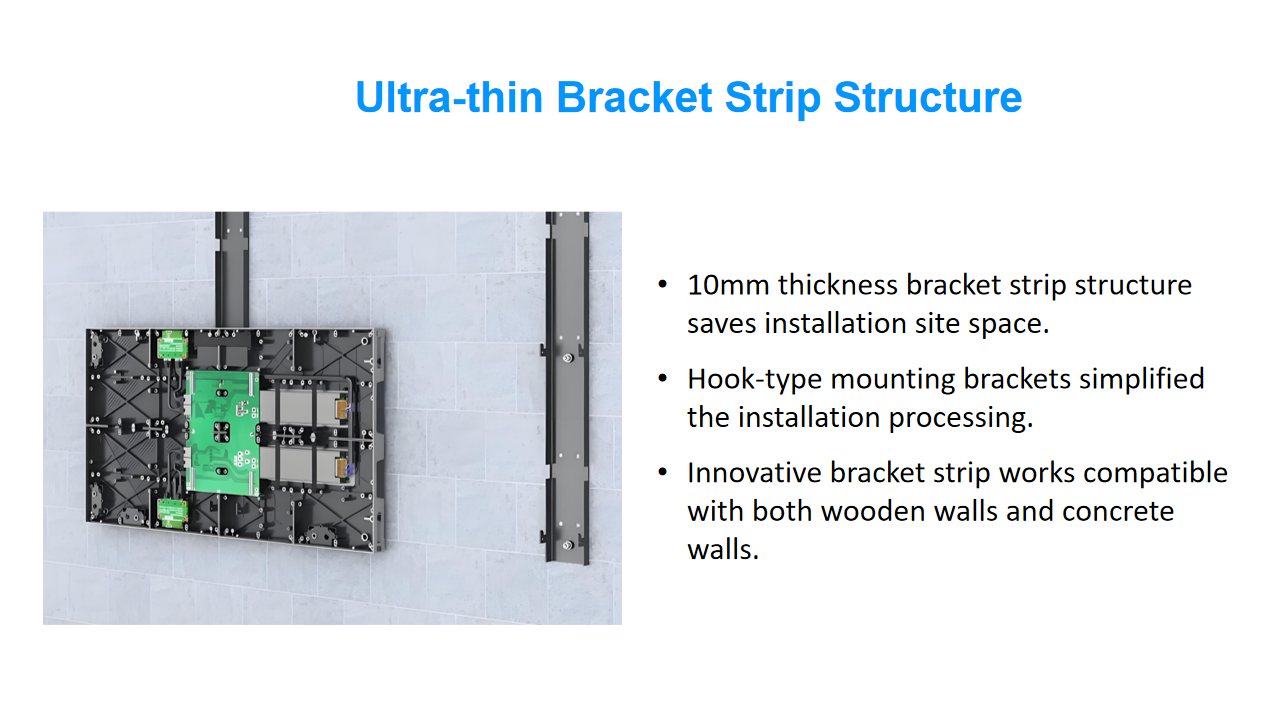

| Installation | Wall-mounting / Stacking / hanging installations | ||||

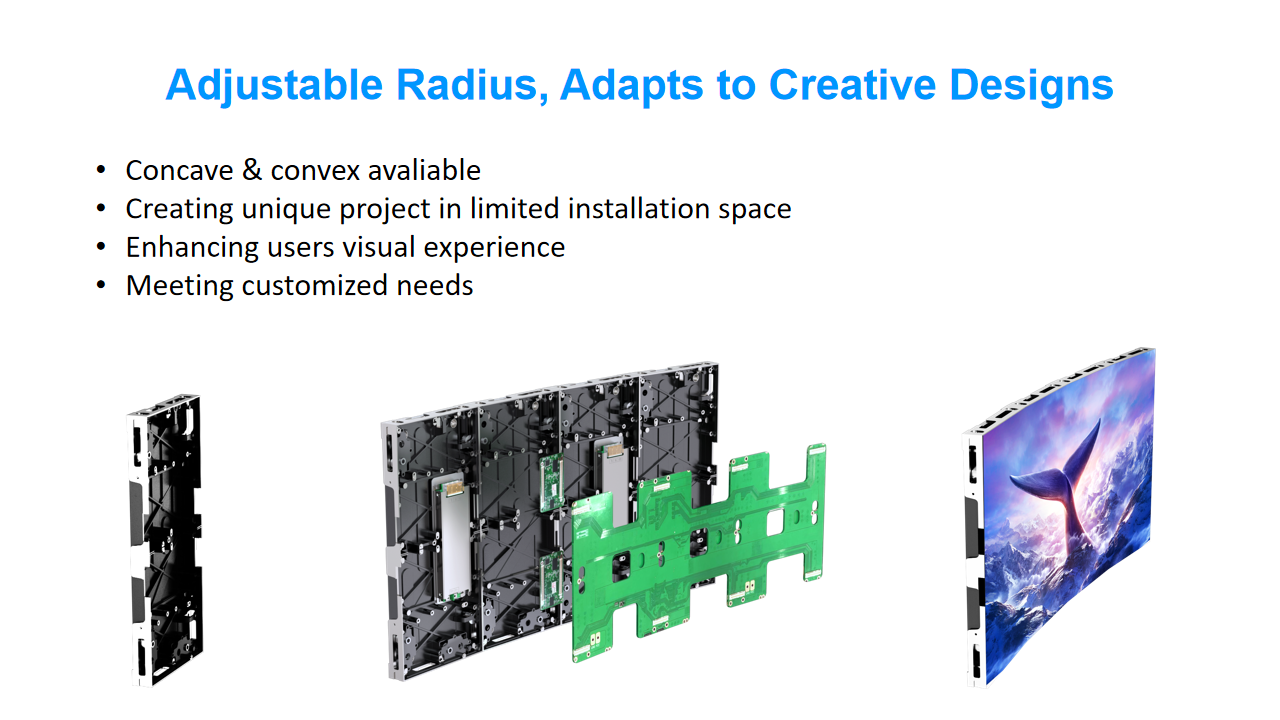

| Screen Shape | straight / curved optional | ||||
| Color Enhancement | Yes | ||||
| Brightness calibration | Yes | ||||
| Hot swapping | Yes | ||||

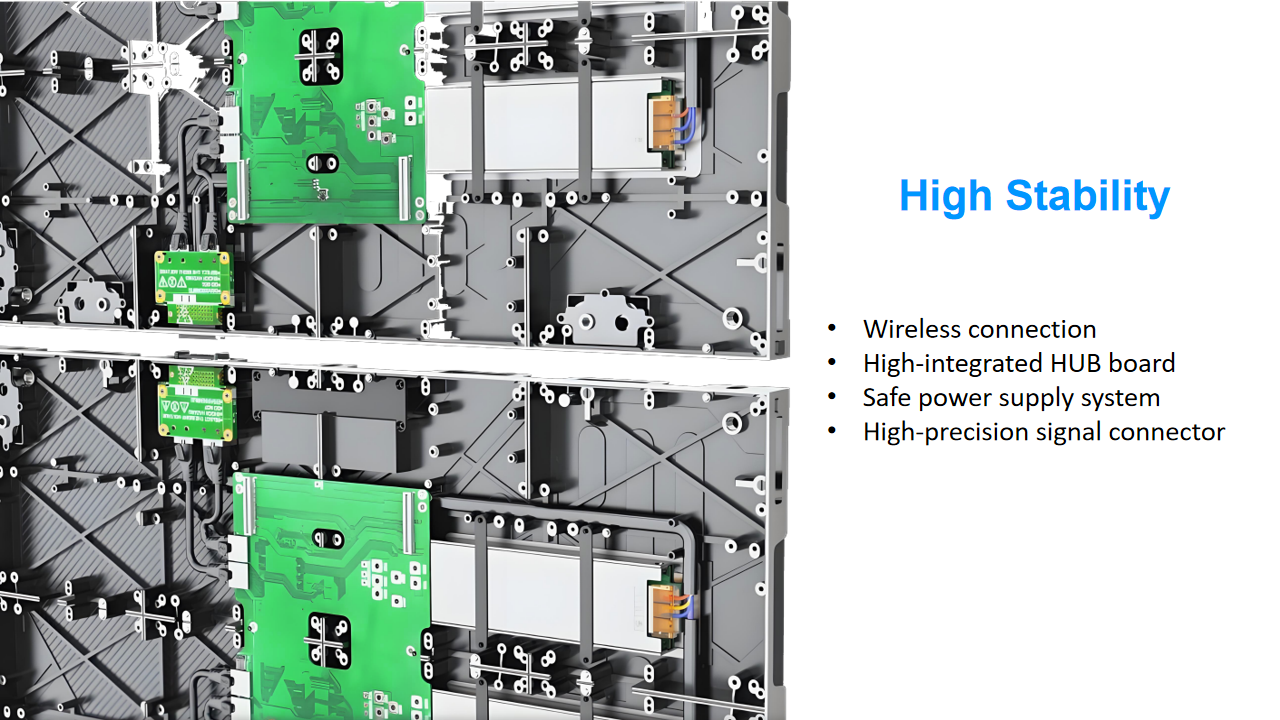

| Wireless connection | Yes | ||||
| Modulization | Yes | ||||
Previous
None
Applications
RGBVISIONLED T-wall LED fine pitch screen in curved application

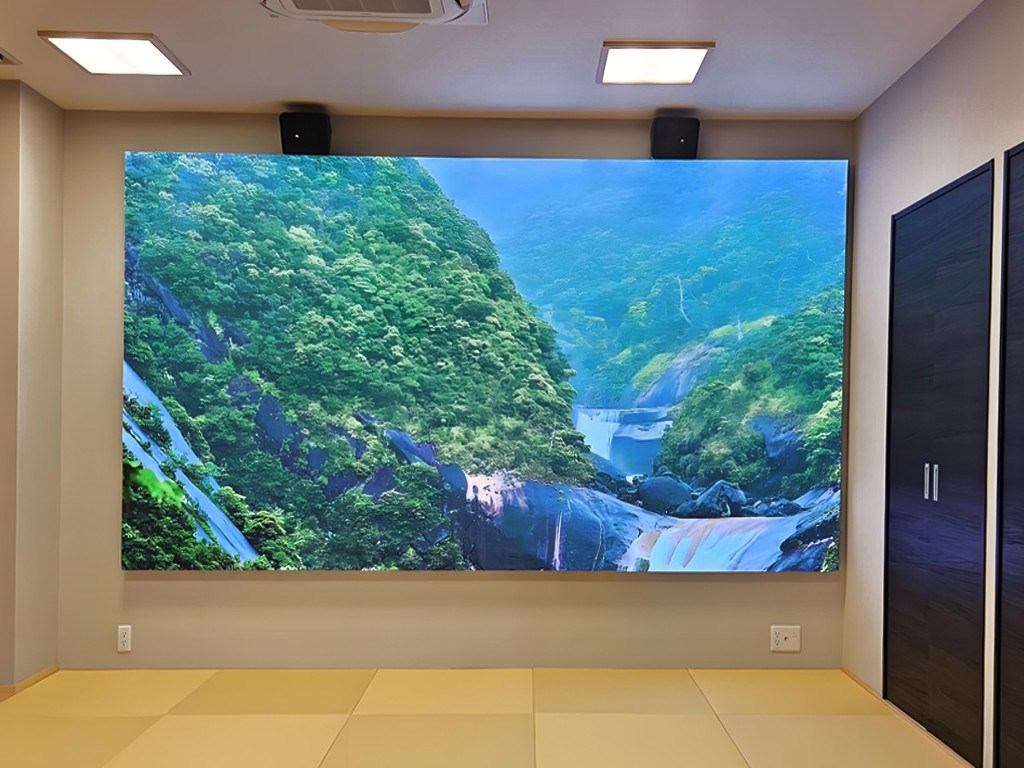

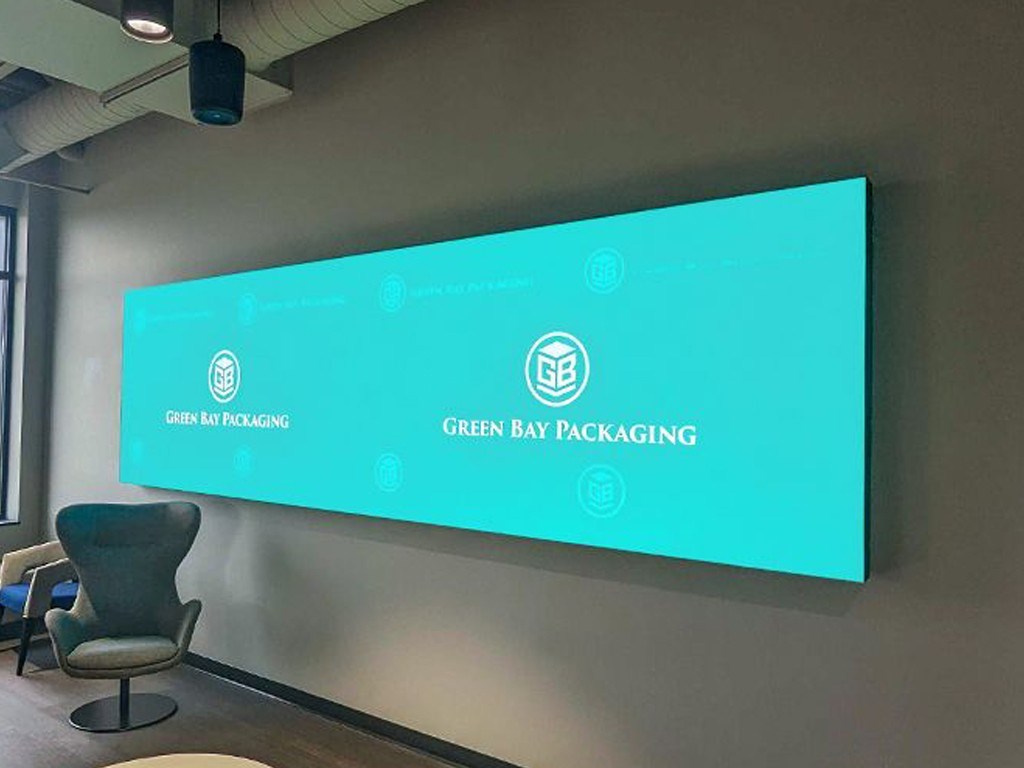

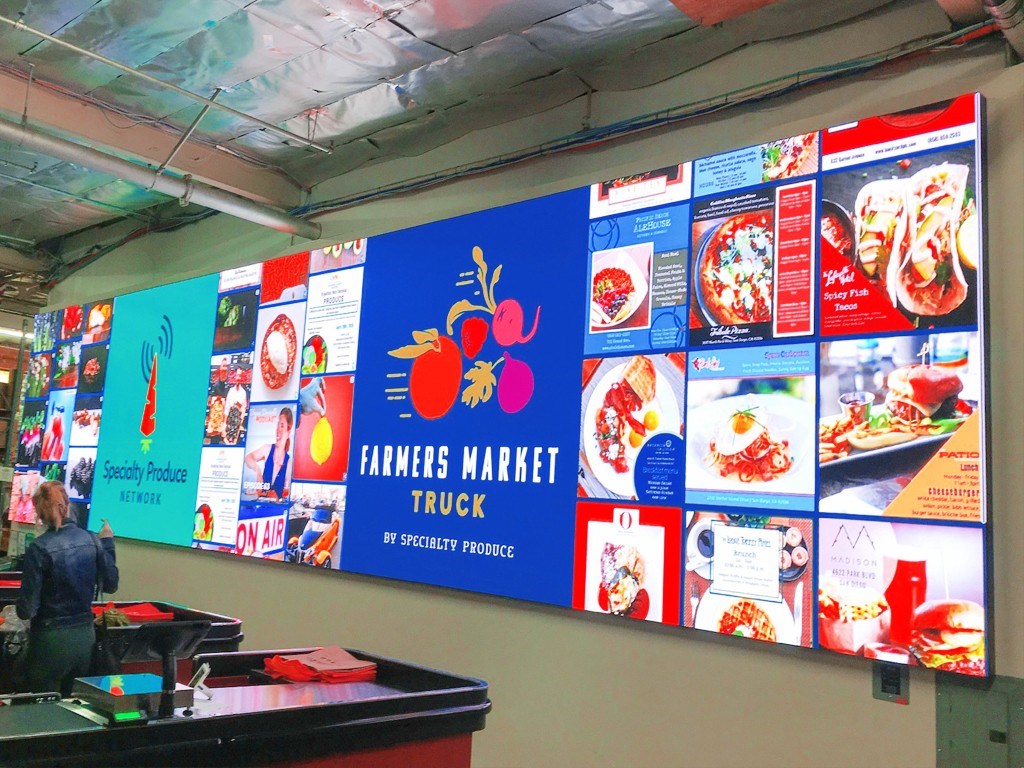

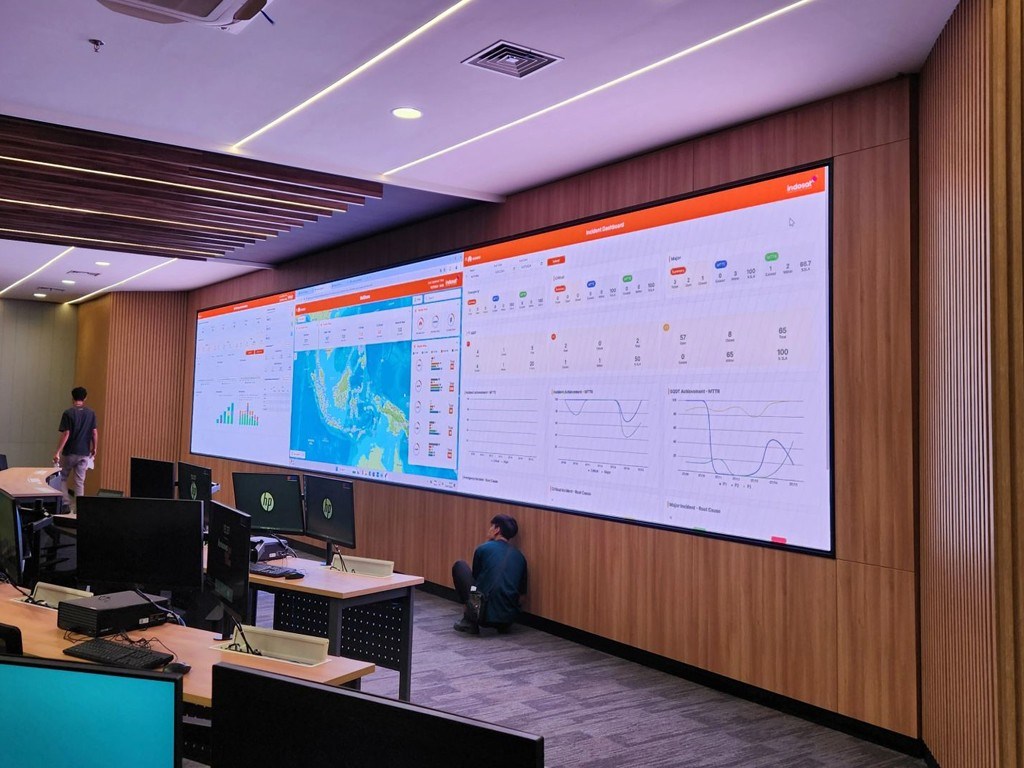

RGBVISIONLED T-wall LED fine pitch screen in straight application

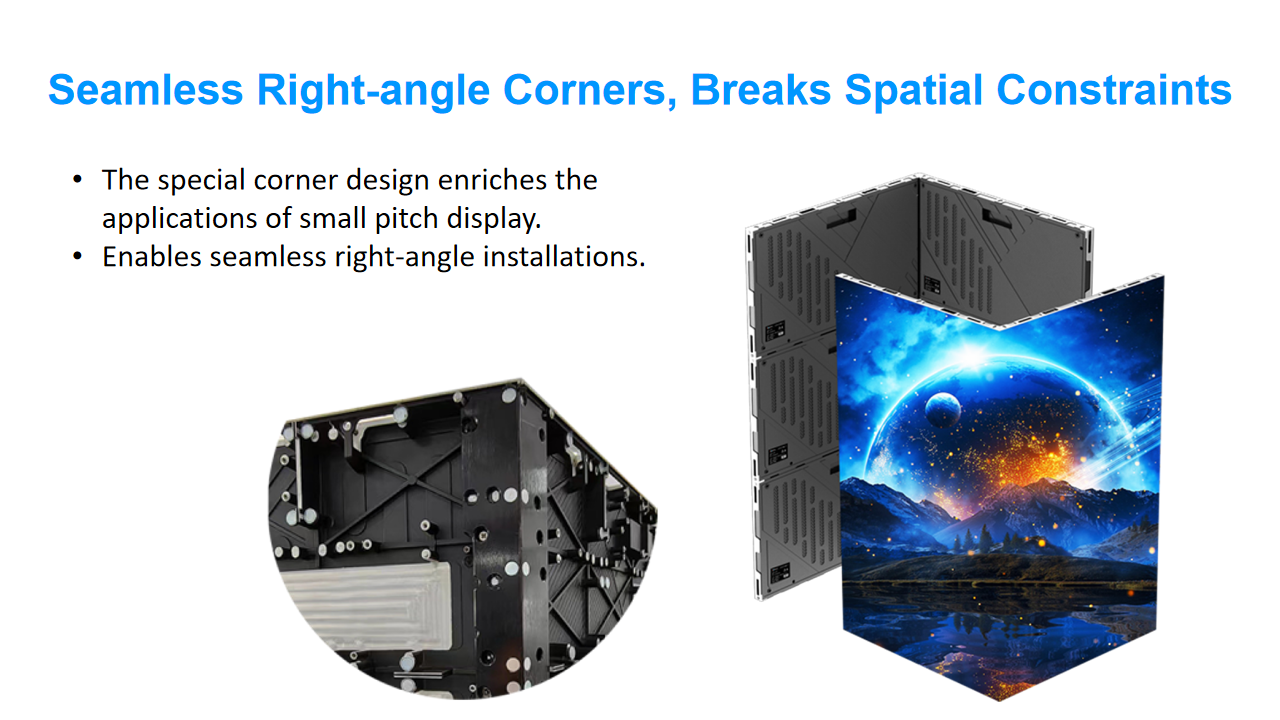

RGBVISIONLED T-wall LED fine pitch screen in 90 degere right angle application
RGBVISIONLED T-wall P1.2mm curved with GOB surface processing
136" RGBVISIONLED T-wall P1.5mm with 1080P resolution
