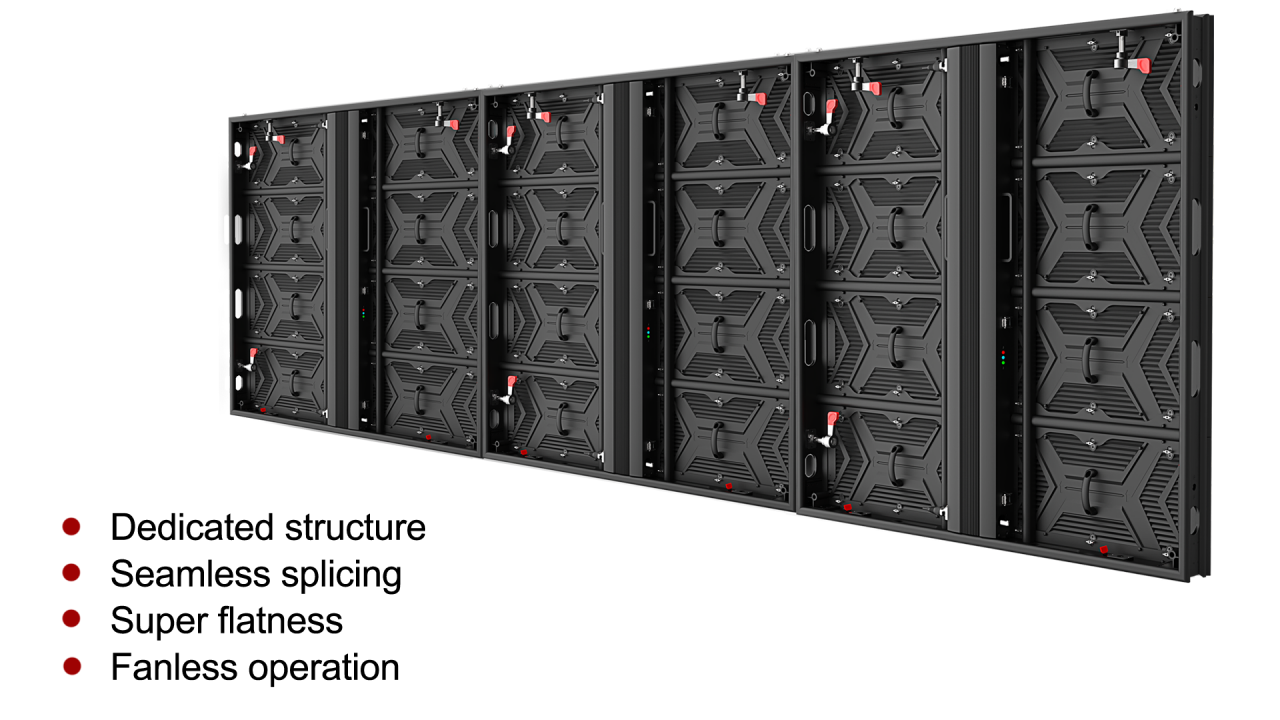

V4 Series
DOOH LED Solution

P3.91 / P4.81 / P6.25 / P8.33 / P10.42.
83mm ultra-thin thickness

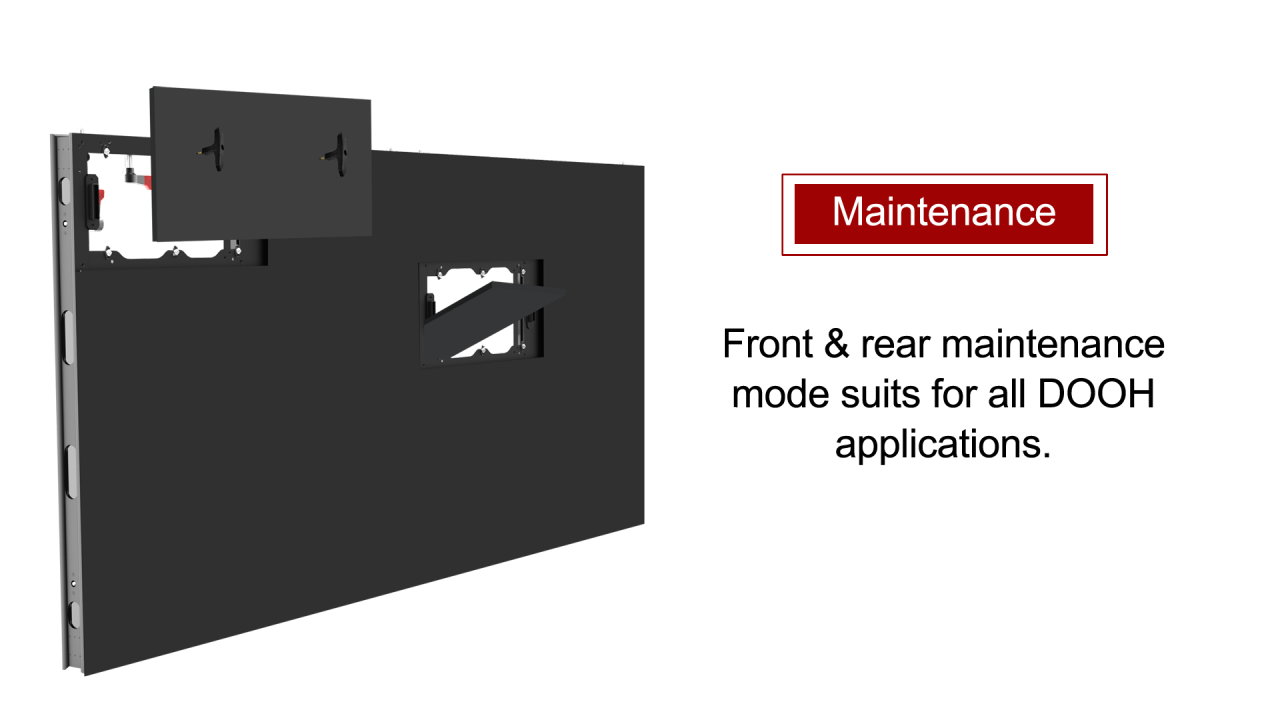

Front&rear maintenance access
IP65 protection
HUB high-integrated connection
Quantity
-
+
Stock:
0
1
Product Description

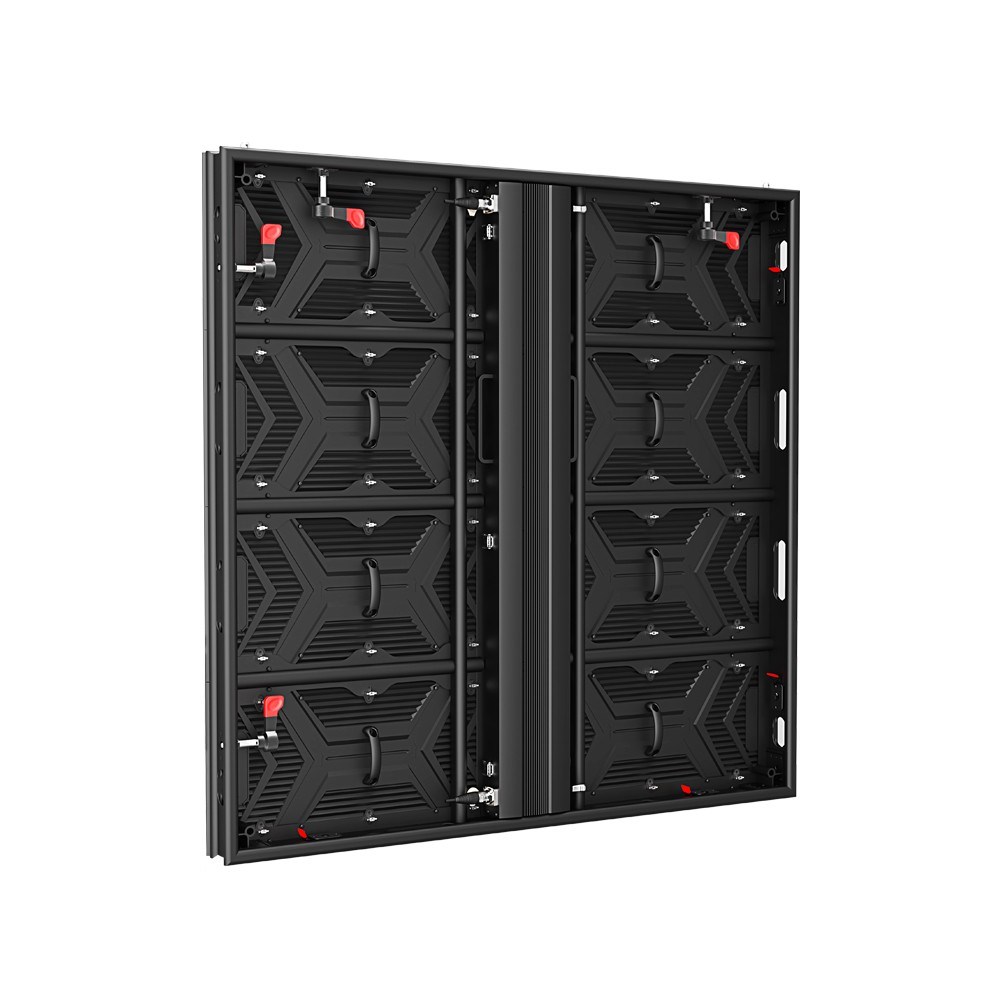

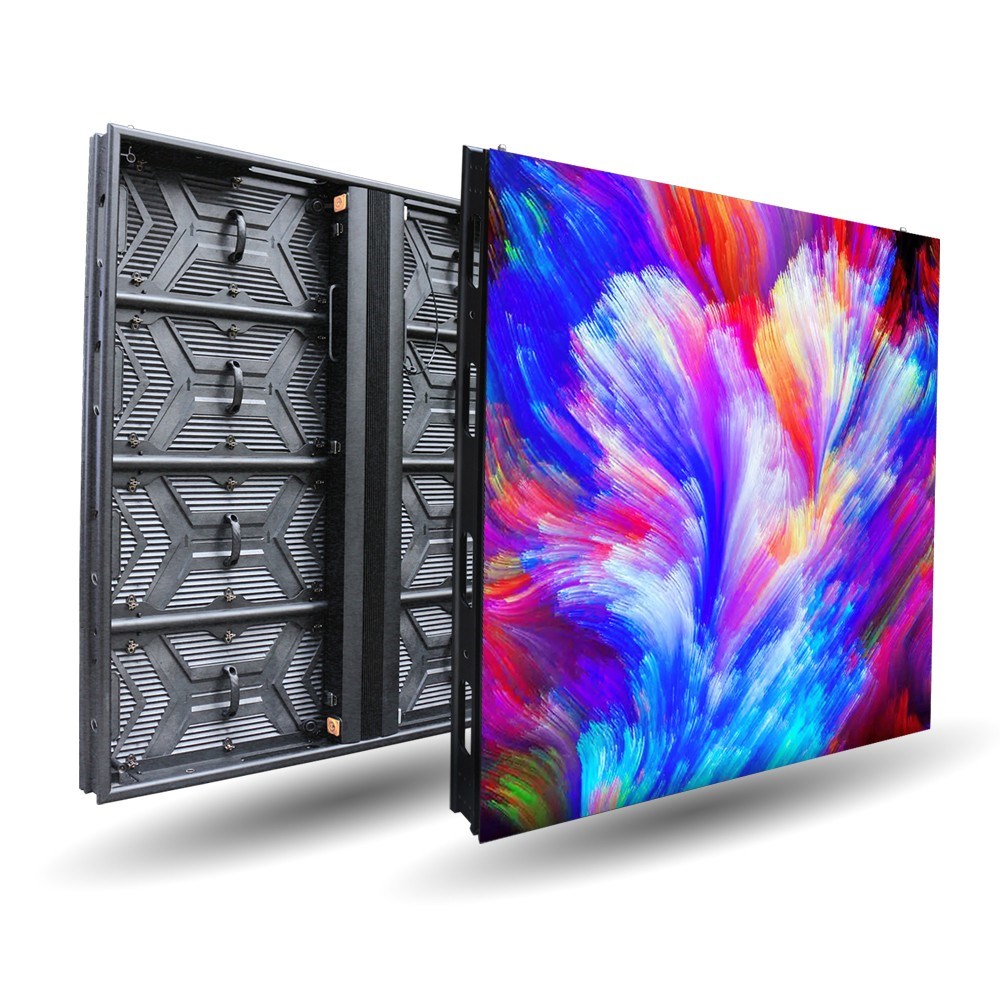

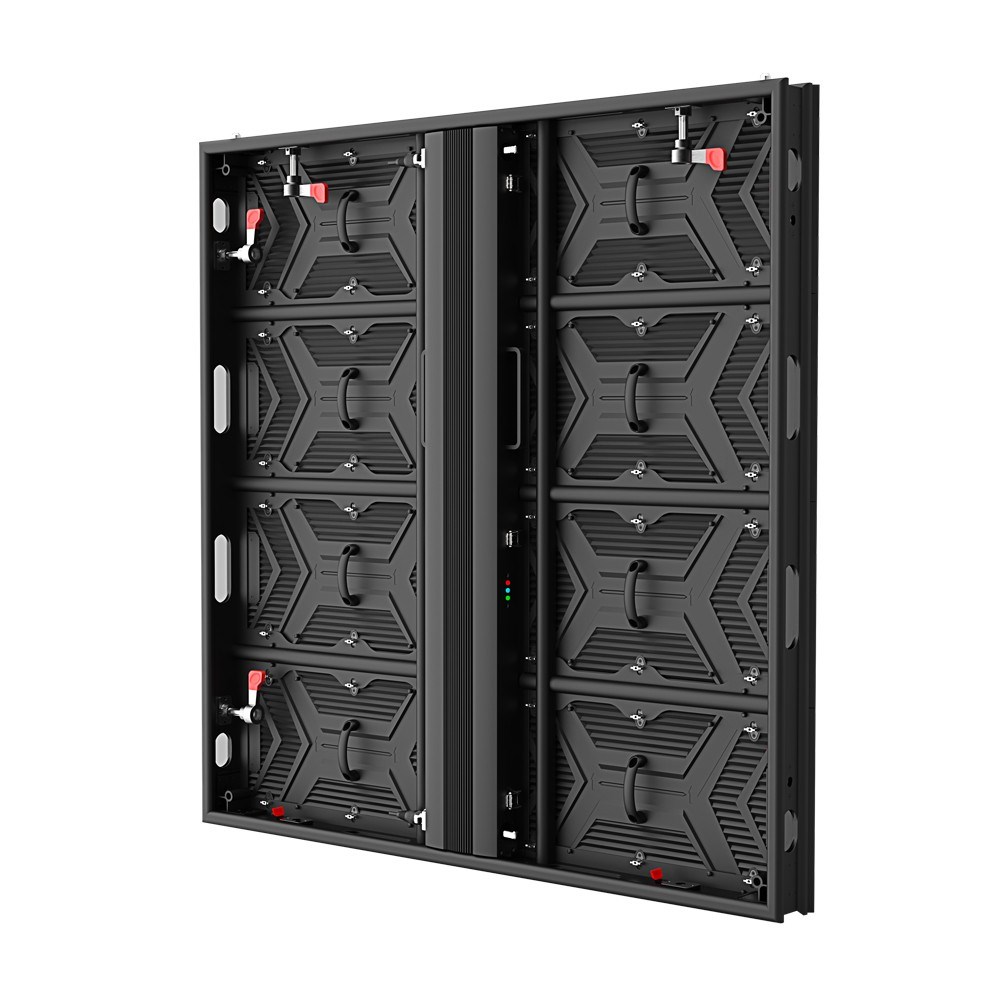

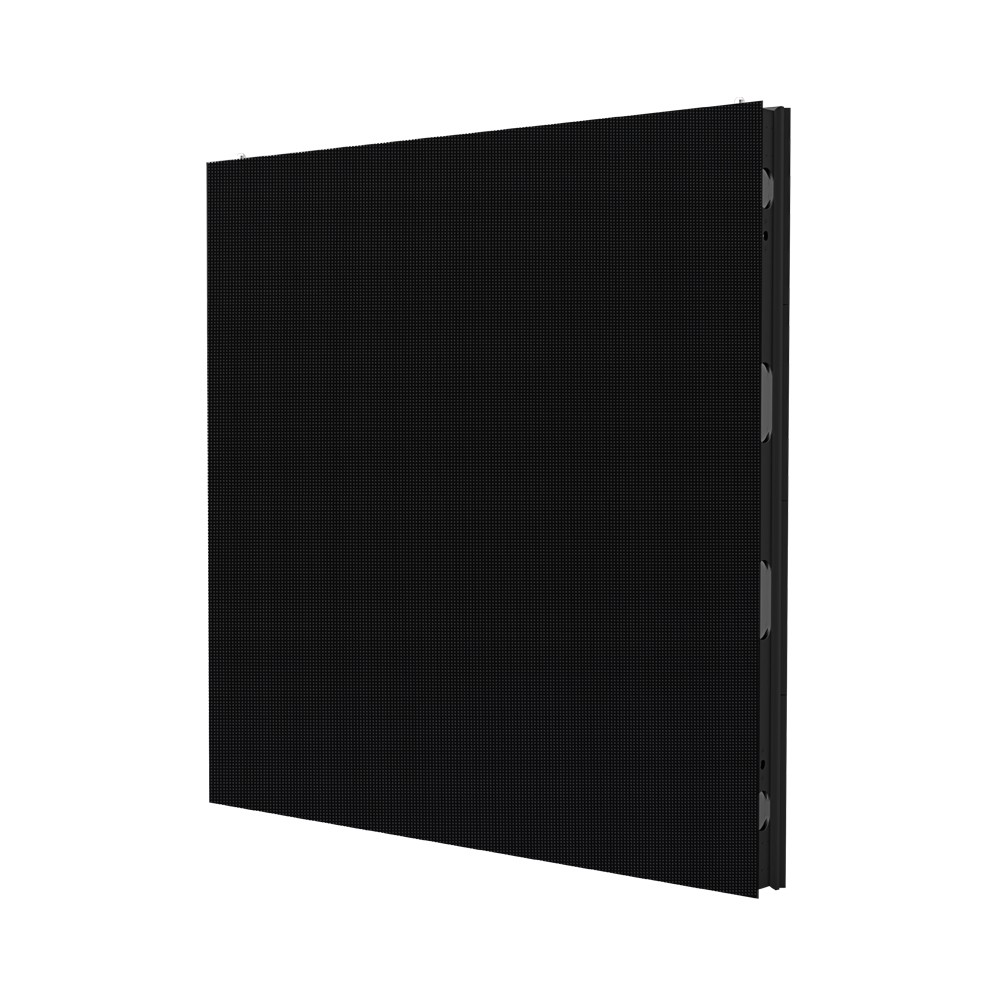

V4 series DOOH screen

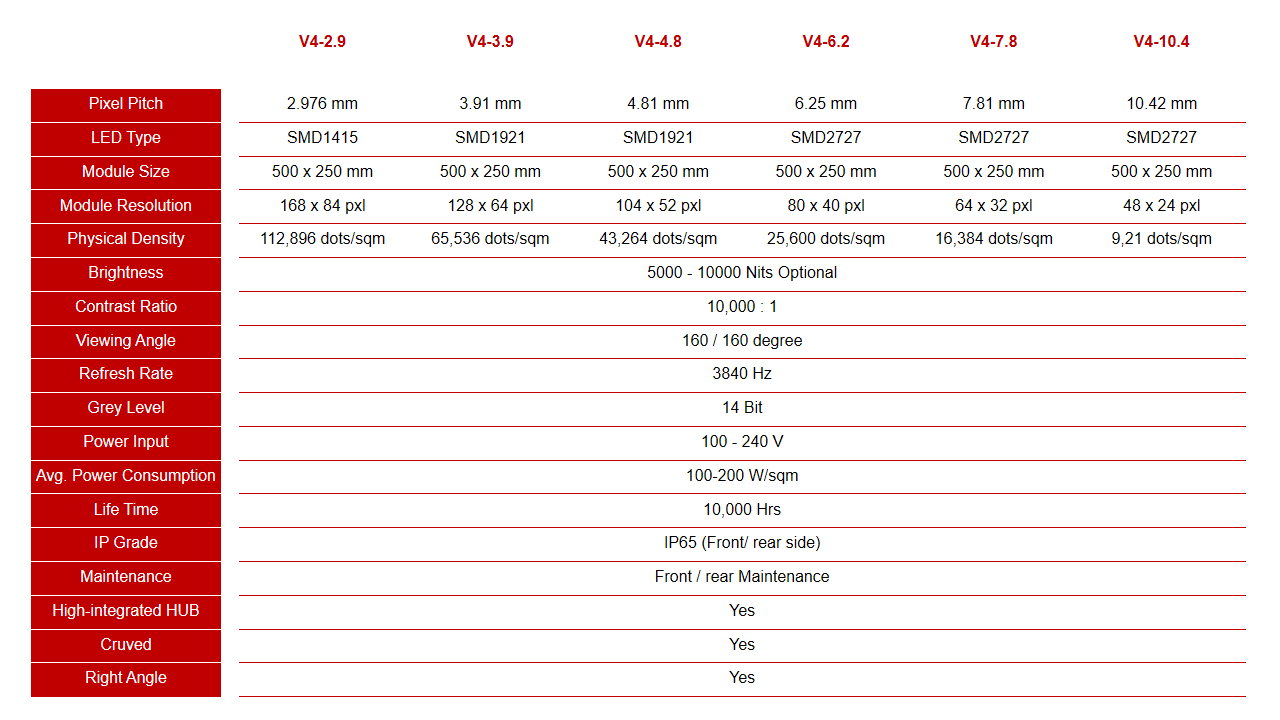

Model V4-3.9 V4-4.8 V4-6.2 V4-7.8 V4-10.4
Pixel Pitch 3.91 mm 4.81 mm 6.25 mm 7.81 mm 10.42 mm
Pixel Density 65536 dots/sq.m 43264 dots/sq.m 25600 dots/sq.m 16384 dots/sq.m 9216 dots/sq.m
LED Type SMD1921 SMD 2727
Scan Mode 1/13 S 1/7 S 1/8 S 1/4 S 1/2S
Refresh Rate ≥ 3840Hz
Module Size 500x250 mm
Module Resolution 128x64 pxl 104x52 pxl 80x40 pxl 64x32 pxl 48x24 pxl

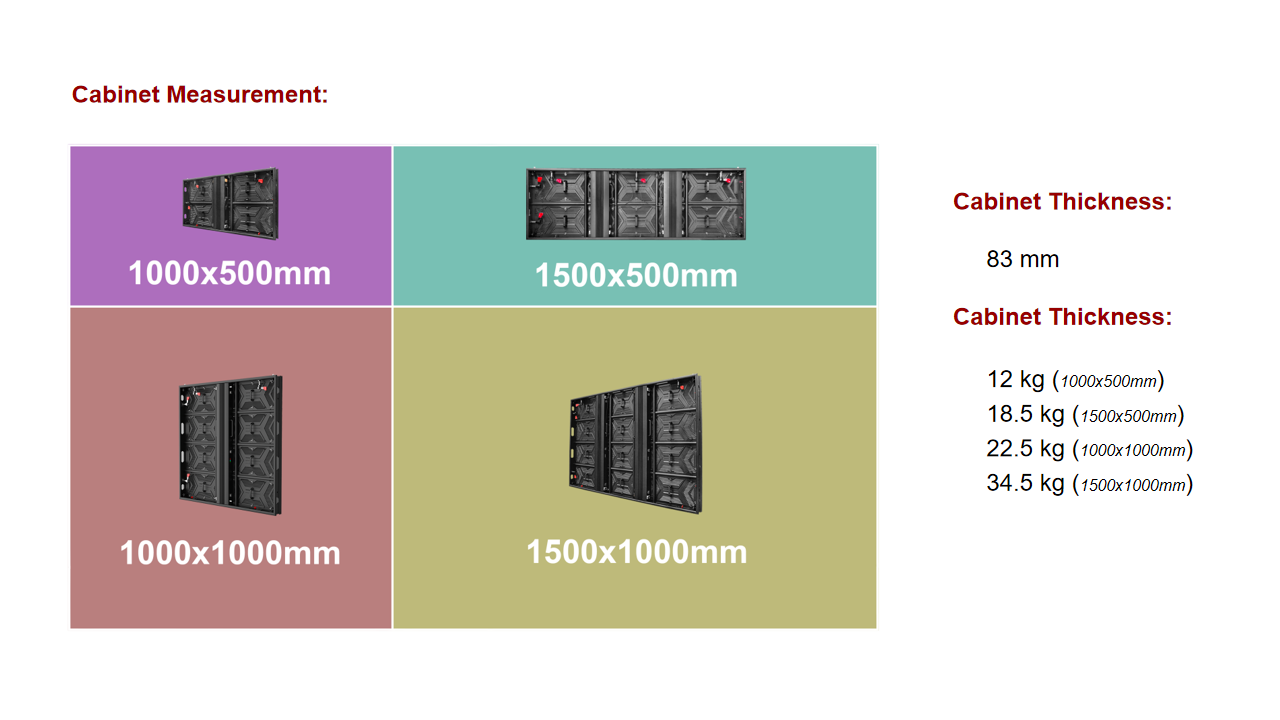

Cabinet Size 1000x1000x83 mm / 1000x500x83mm / 1500x1000x83mm / 1500x1500x83mm
Cabinet Resolution 256x256 pxl 208x208 pxl 160x160 pxl 128x128 pxl 96x96 pxl
Brightness 6000-13000 Nits Optional
Viewing Angle: (H/V) 170/170 degree
Cabinet Material Aluminum
Cabinet Weight 28 KG
Input Voltage:  AC100-240V/50-60Hz
Max Power C. 800 W/s.qm
Average Power C. 150-250 W/s.qm
Life Span ≥ 100,00 Hrs

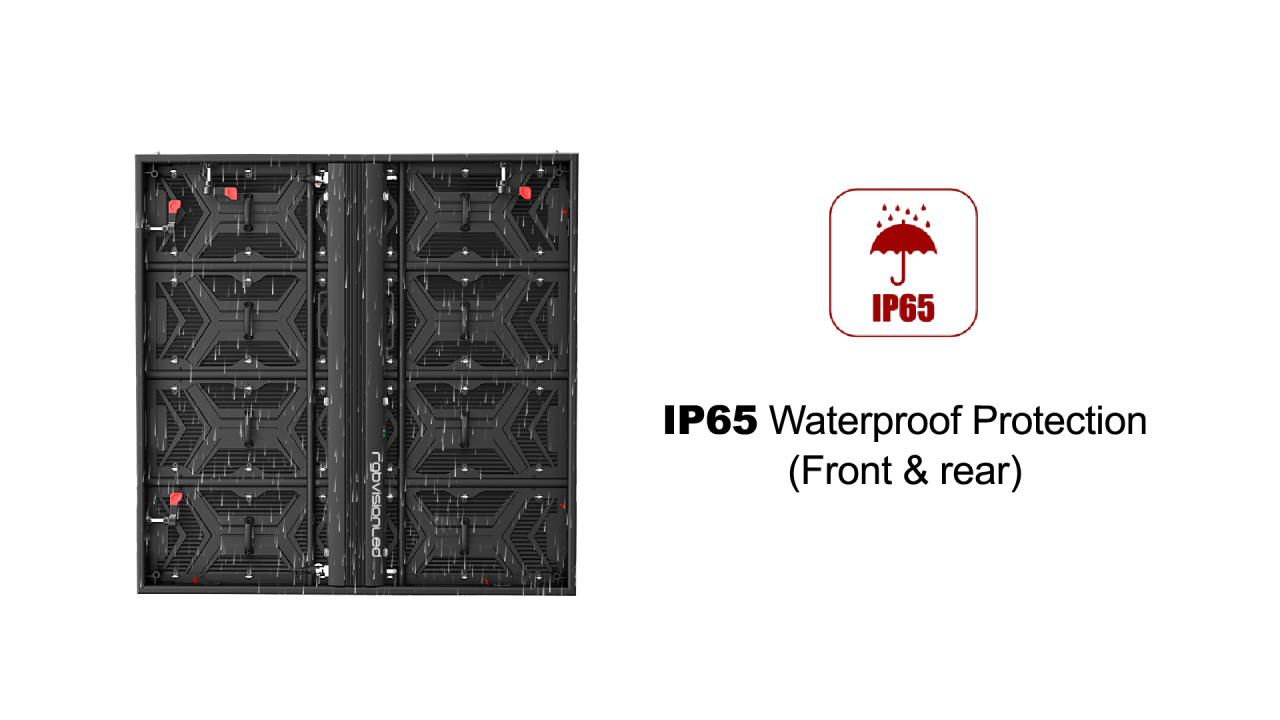

IP Rate IP65

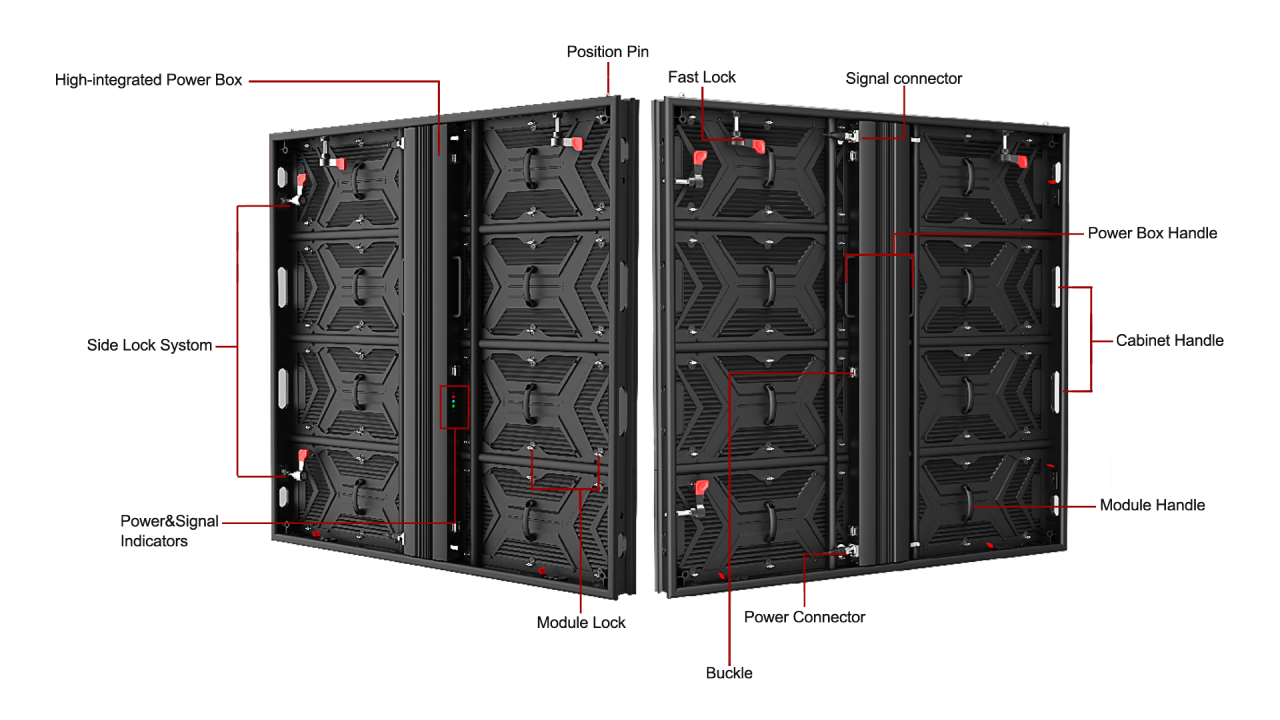

Maintenance Access Front / rear access maintenance
Max Stacking 30 panels
Installation Wall-mounting / Stacking / hanging installations

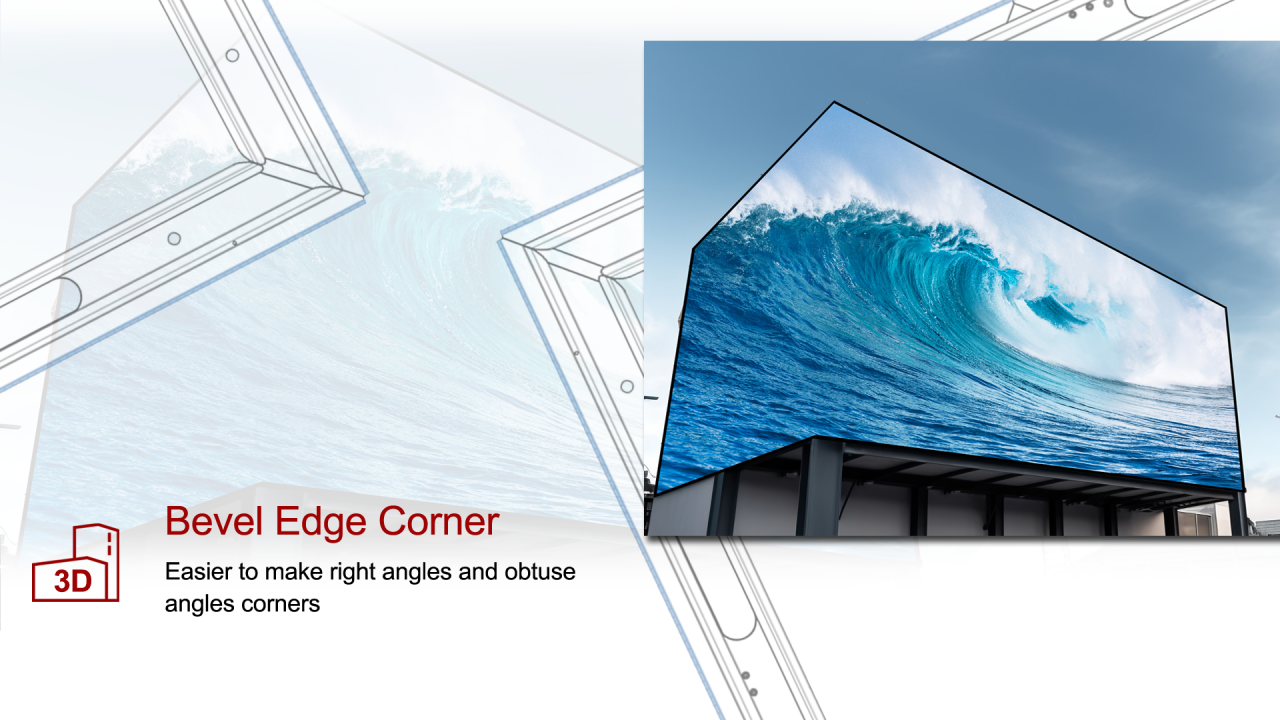

Screen Shape straight / right angle optional

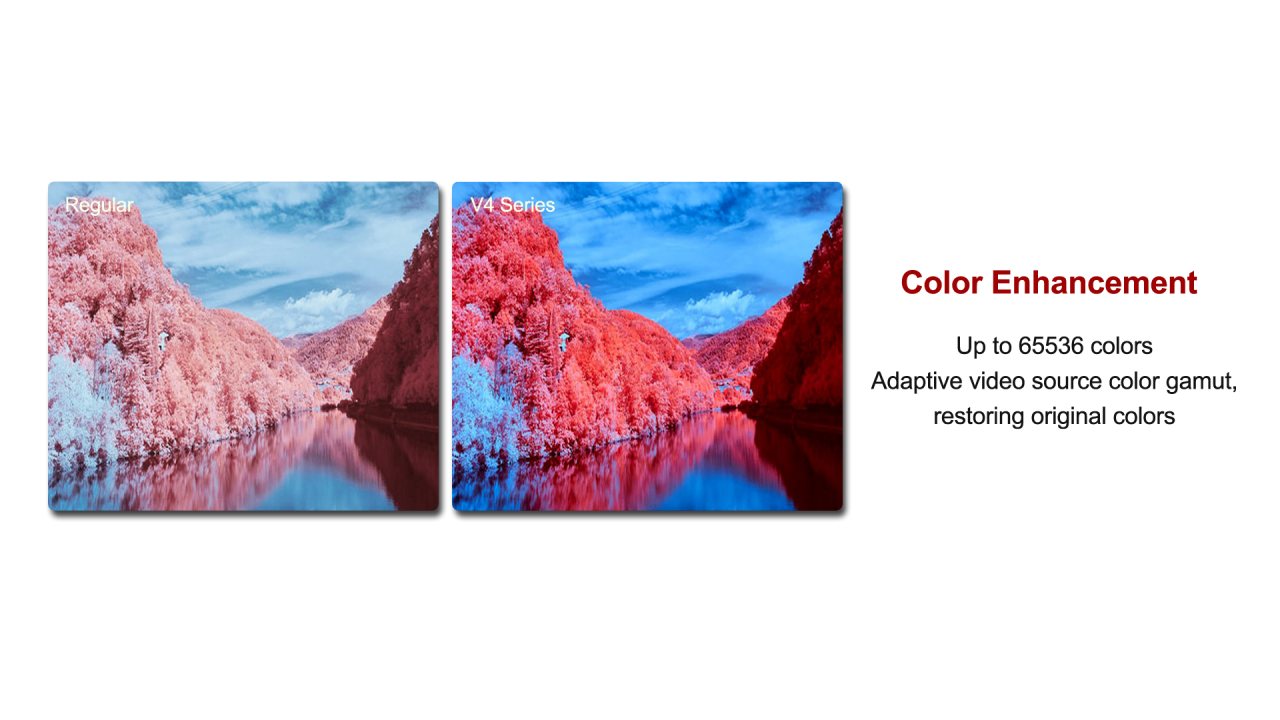

Color Enhancement Yes

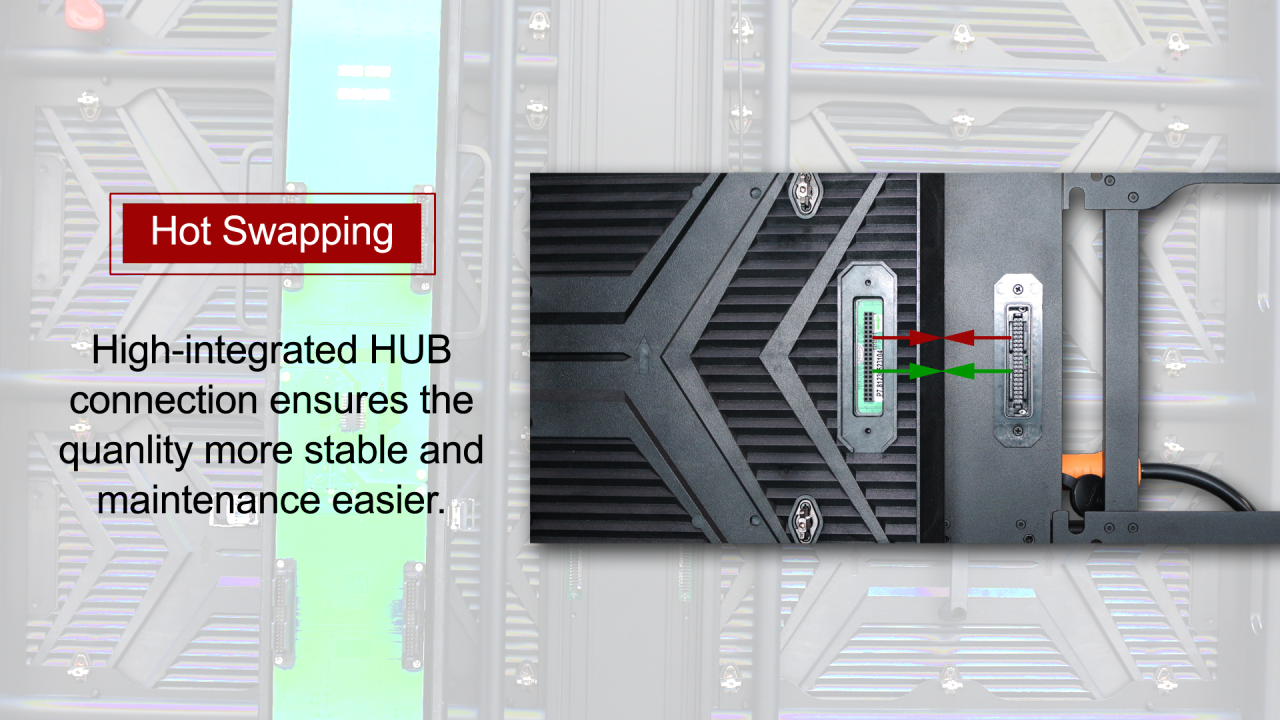

Hot swapping Yes

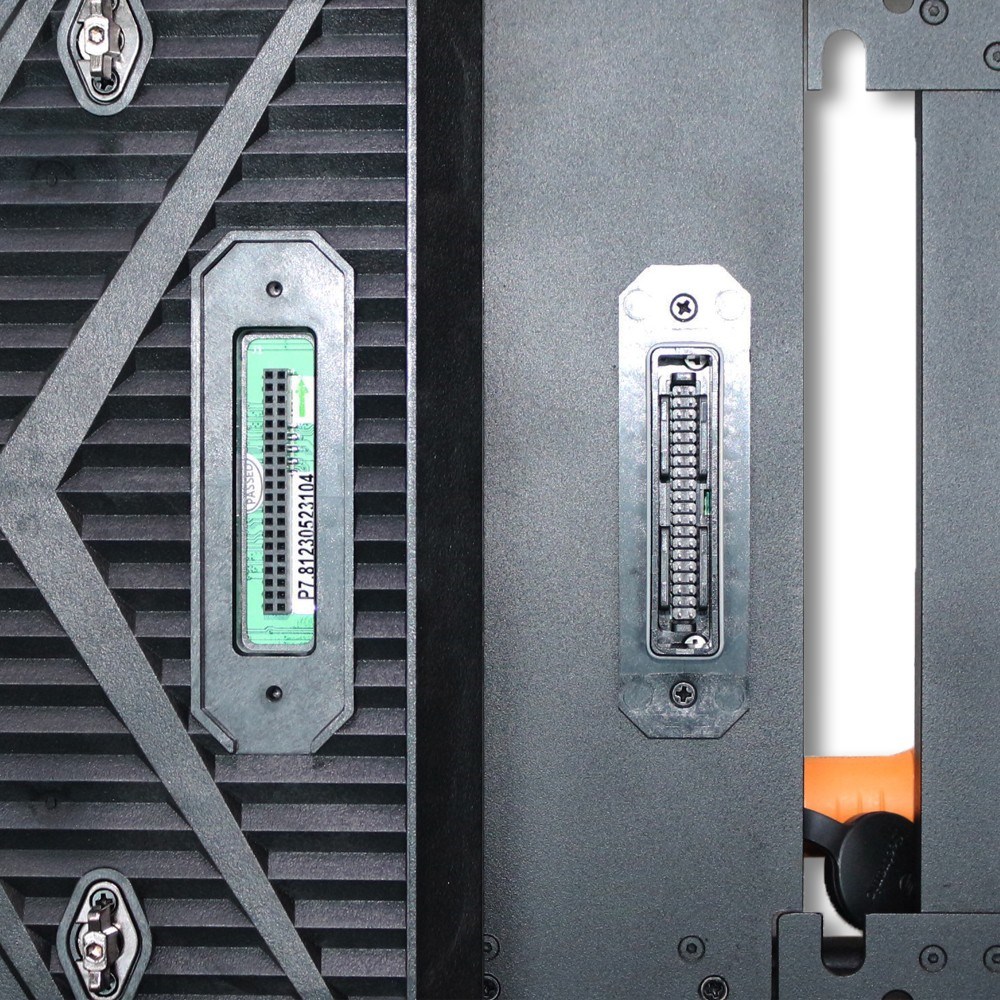

HUB connection Yes
Modulization Yes



Applications

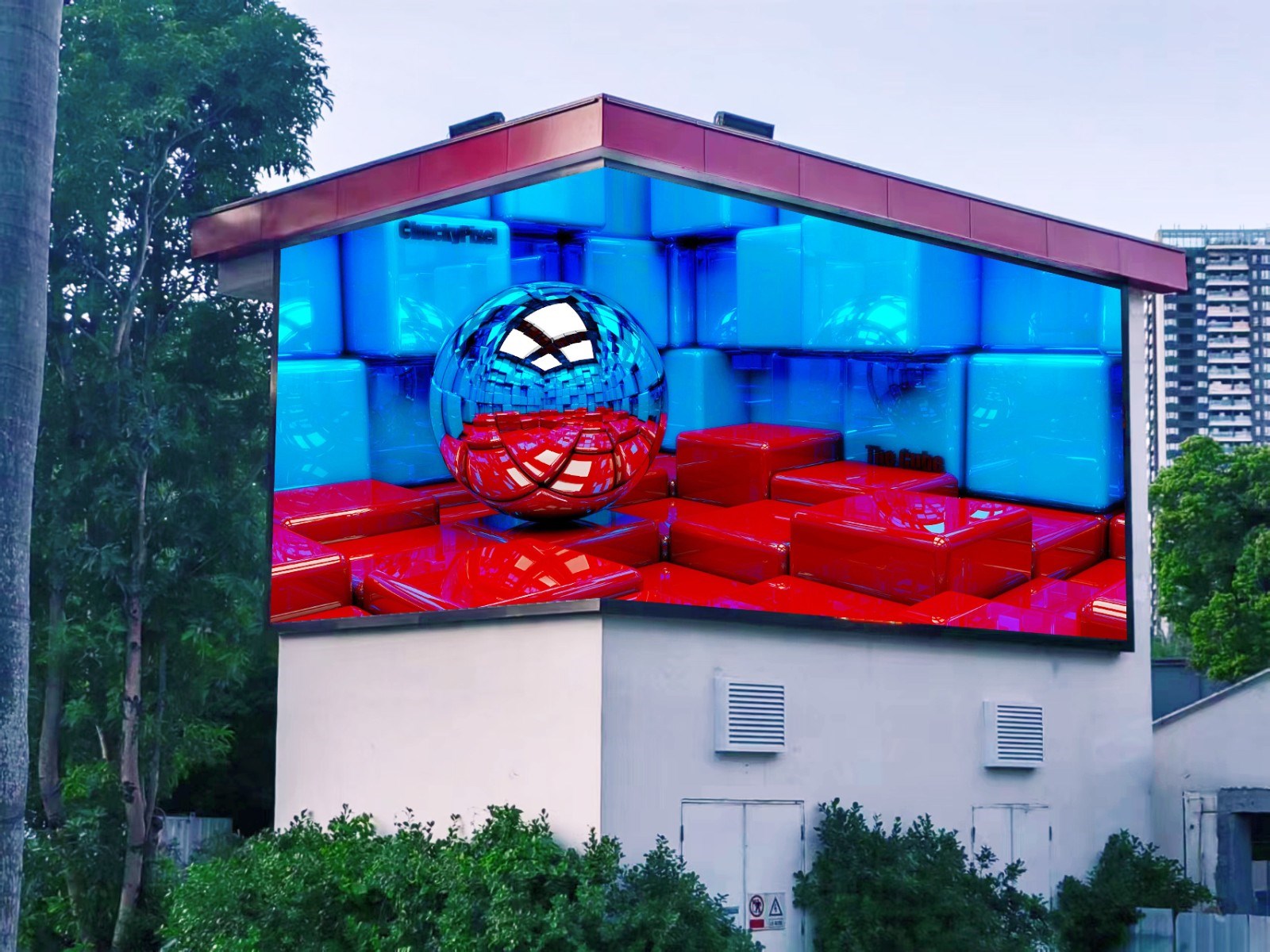

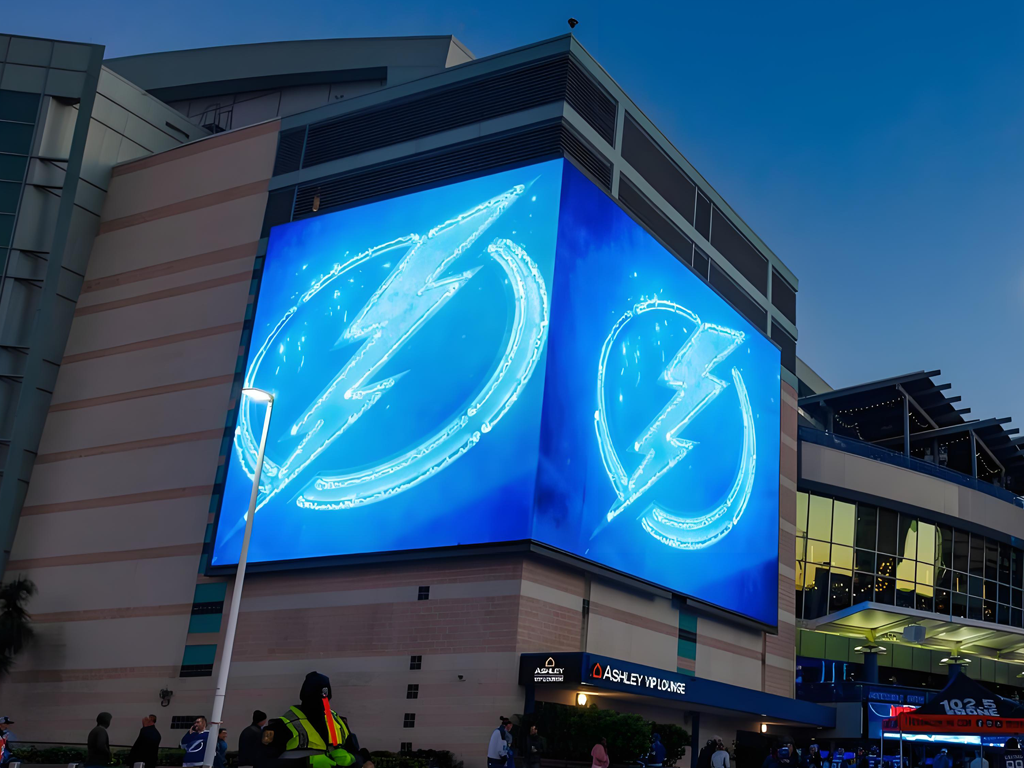

V4 Series in Naked-eye 3D application

V4 Series in Naked-eye 3D application

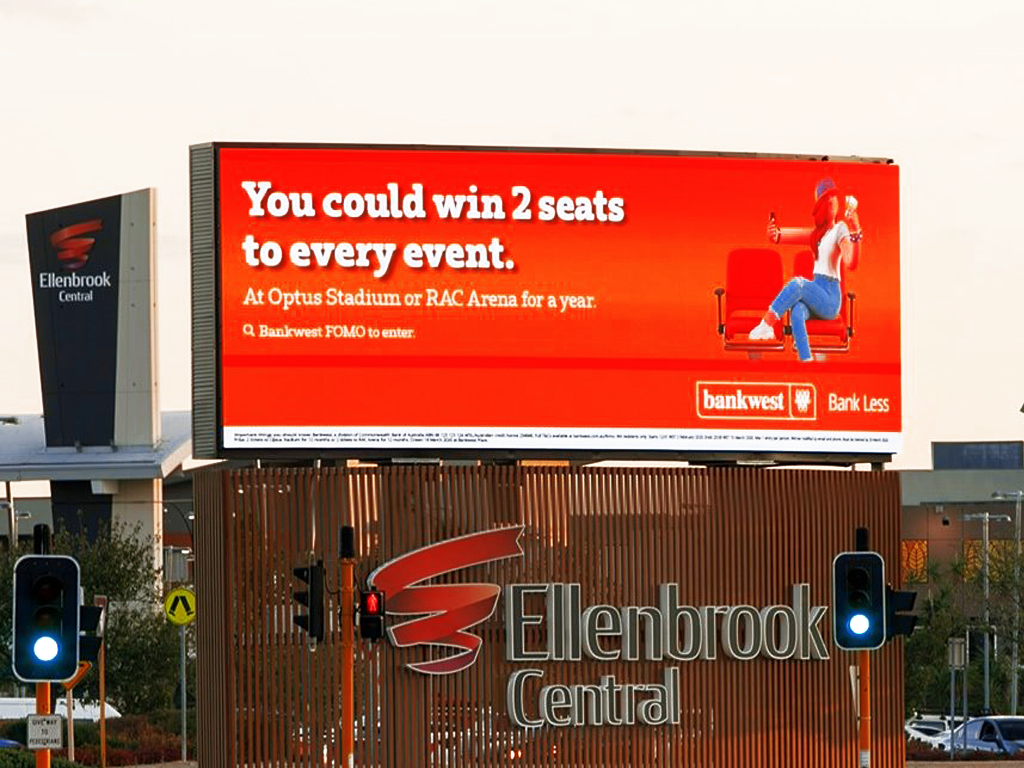

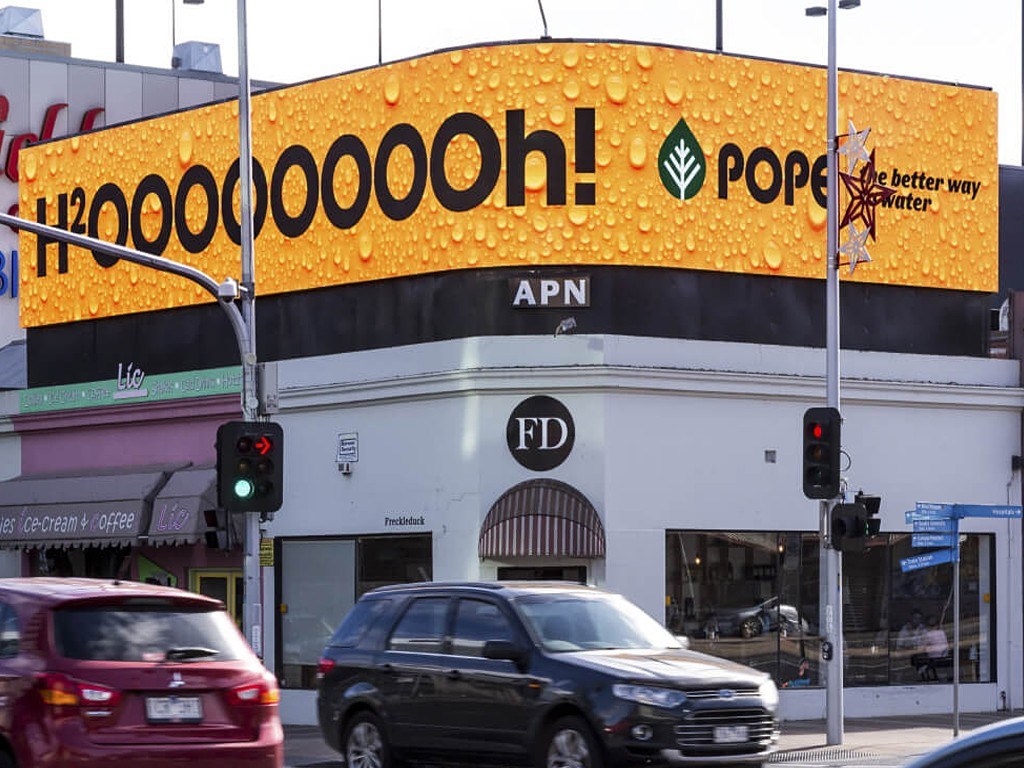

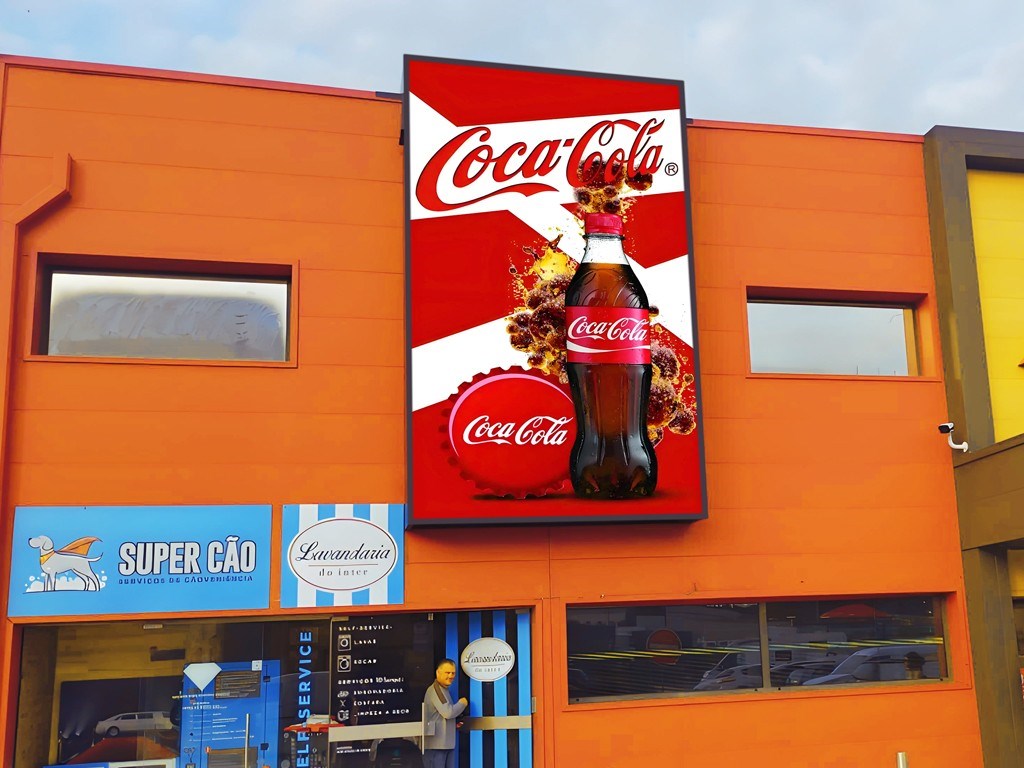

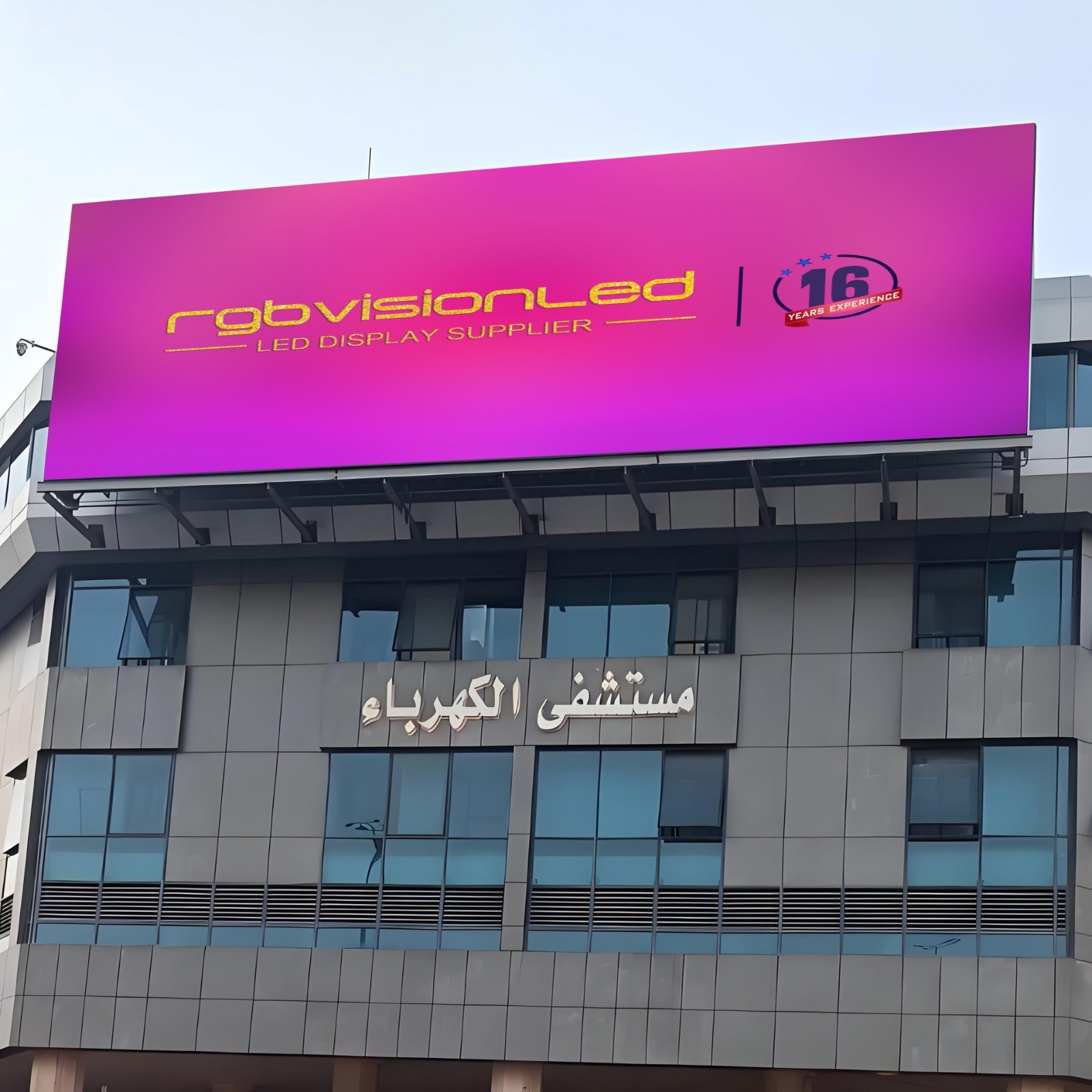

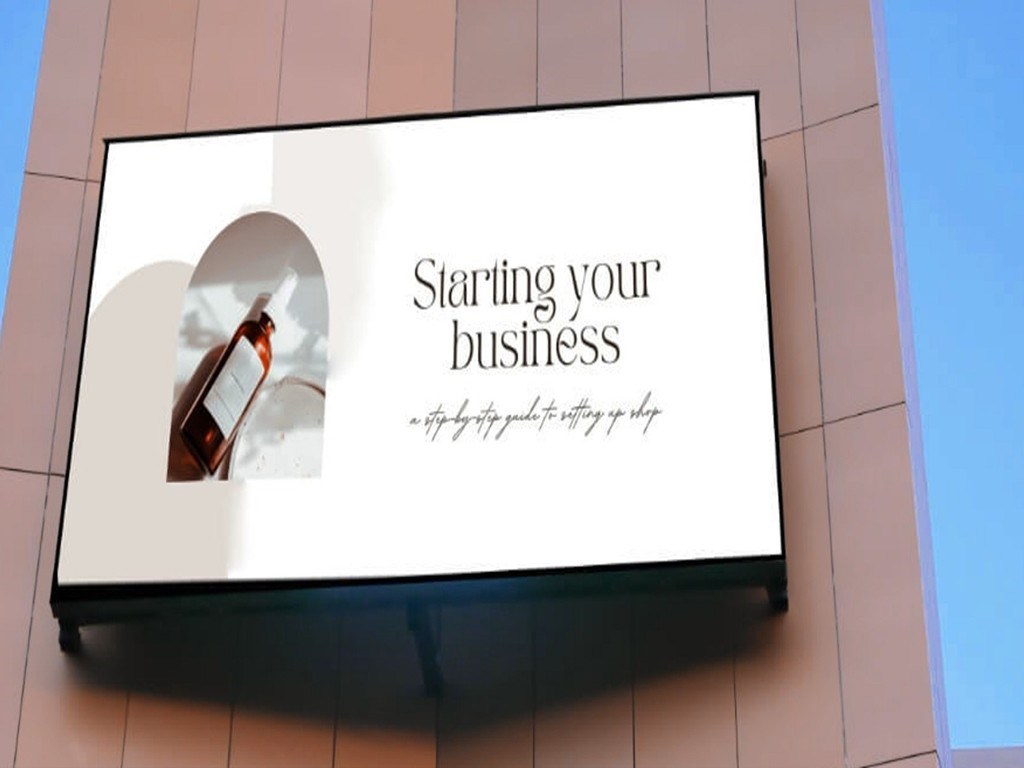

V4 series in outdoor digital media application

V4 series in outdoor digital media application
