U3 Series
Commercial LED Solution
P1.25 / P1.56 / P1.95 / P2.5 / P2.6 / P2.9 / P3.9
Commercial LED Solution
P1.25 / P1.56 / P1.95 / P2.5 / P2.6 / P2.9 / P3.9
| U3 Series Commercial Screen | |||||||
| Model | U3-1.2 | U3-1.5 | U3-1.9 | U3-2.5 | U3-2.6 | U3-2.9 | U3-3.9 |
| Pixel Pitch | 1.25 mm | 1.56 mm | 1.95 mm | 2.5 mm | 2.604 mm | 2.976 mm | 3.91 mm |
| Pixel Density | 640000 dots/sq.m | 409600 dots/sq.m | 262144 dots/sq.m | 160000 dots/sq.m | 147456 dots/sq.m | 112896 dots/sq.m | 65536 dots/sq.m |
| LED Type | SMD1010 | SMD1212 | SMD 1515 | SMD2020 | |||
| Scan Mode | 1/50 S | 1/40 S | 1/32 S | 1/25 S | 1/32 S | 1/28 S | 1/16 S |
| Refresh Rate | ≥ 3840Hz | ||||||
| Module Size | 250x250 mm | ||||||
| Module Resolution | 200x200 pxl | 160x160 pxl | 128x128 pxl | 100x100 pxl | 96x96 pxl | 84x84 pxl | 64x64 pxl |

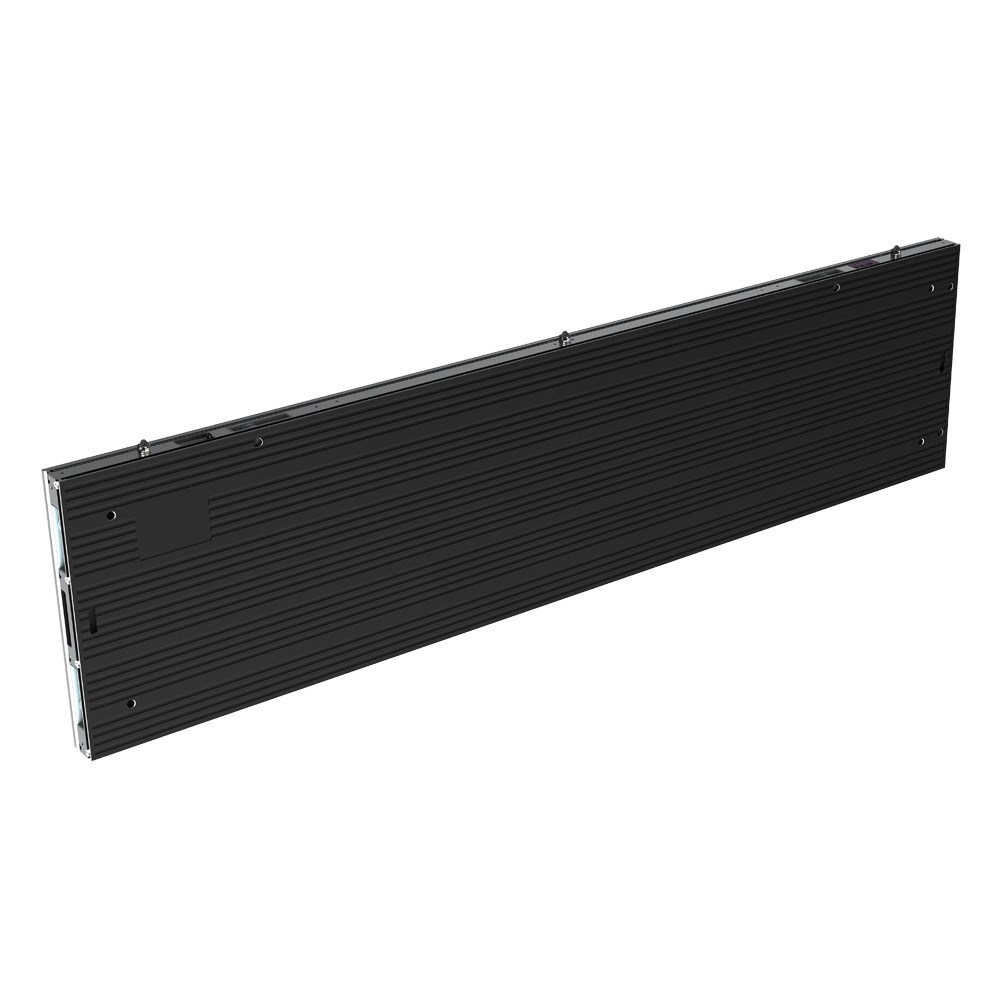

| Cabinet Size | 1000x250x33 mm / 750x250x33mm / 500x250x33mm | ||||||
| Cabinet Resolution | 800x200 pxl | 640x160 pxl | 512x128 pxl | 400x100 pxl | 384x96 pxl | 334x84 pxl | 256x64 pxl |
| Brightness | 400-900 Nits optional | ||||||
| Viewing Angle: (H/V) | 170/170 Degree | ||||||
| Cabinet Material | Aluminum | ||||||
| Cabinet Weight | 5.7 KG | ||||||
| Input Voltage: | AC100-240V/50-60Hz | ||||||
| Max Power C. | 800 W/sq.m | ||||||
| Average Power C. | 150-250 W/sq.m | ||||||
| Life Span | ≥ 100,00 Hrs | ||||||
| IP Rate | IP63 | ||||||

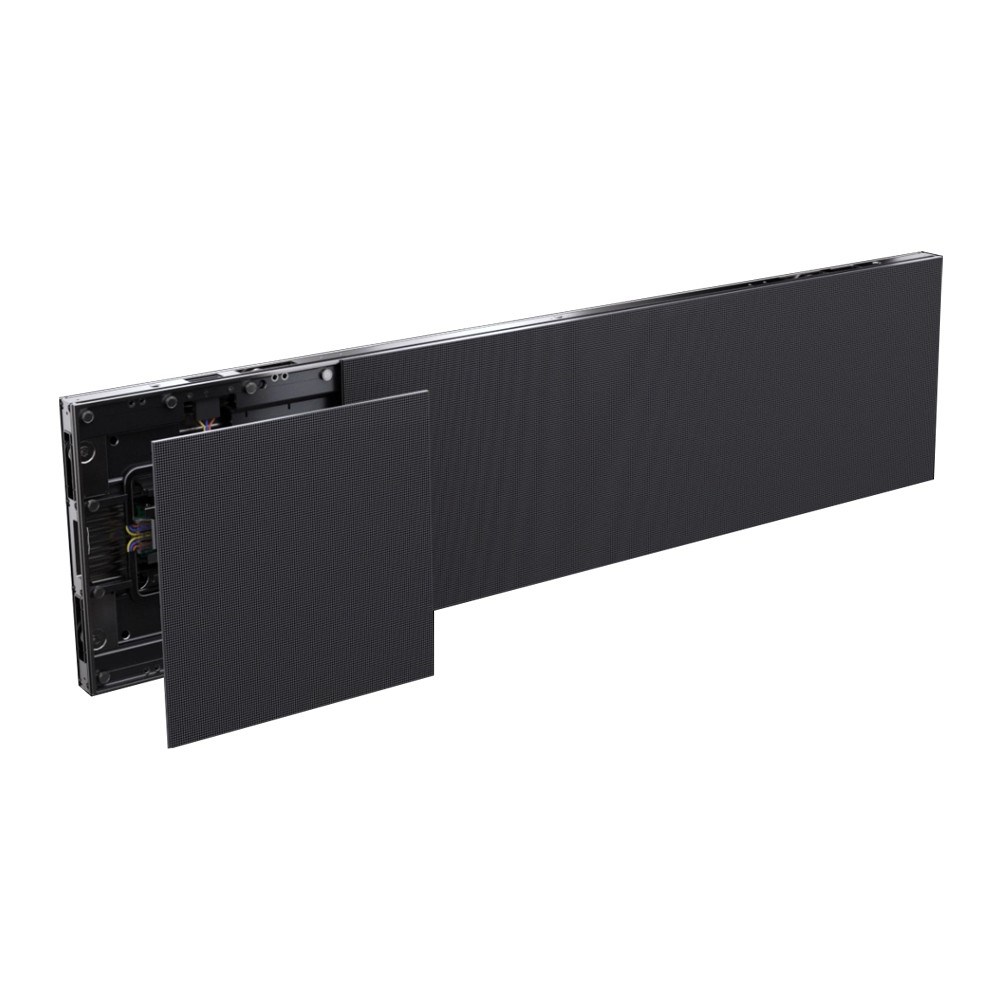

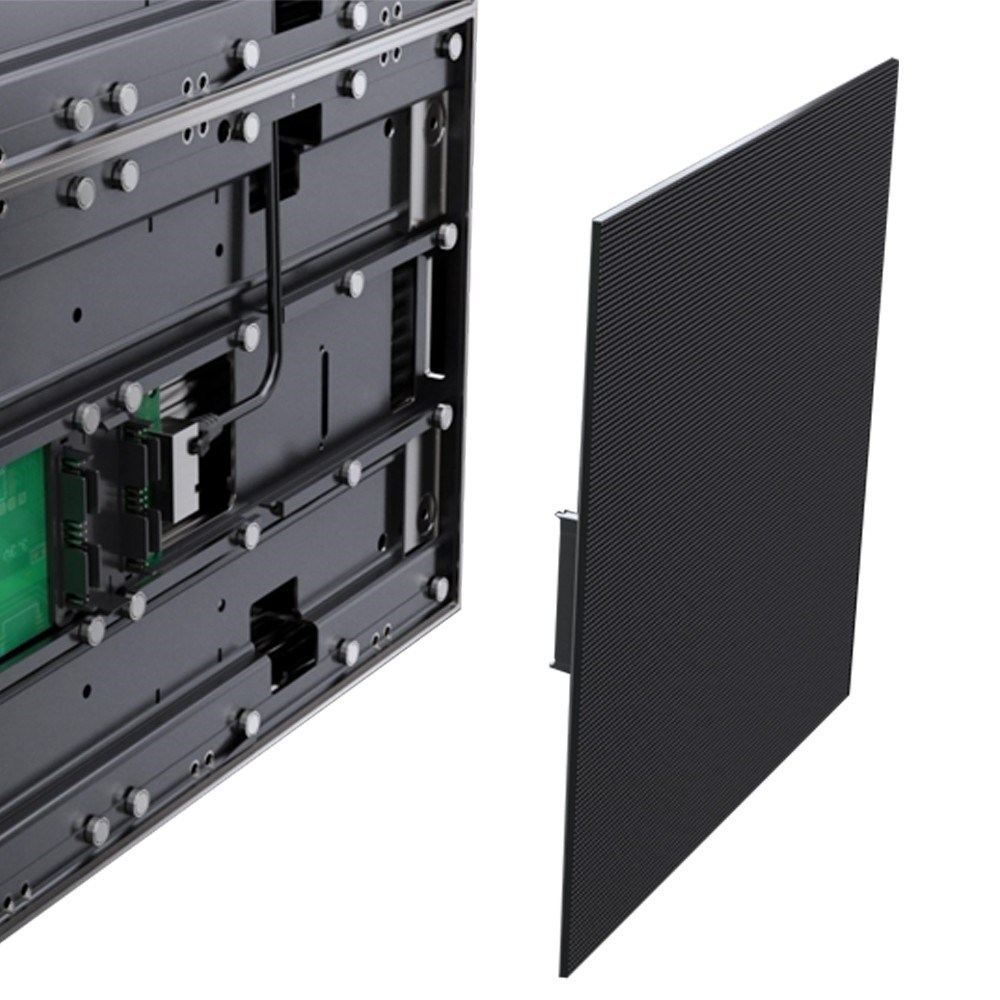

| Maintenance Access | Front access maintenance | ||||||
| Max Stacking | 30 panels | ||||||
| Installation | Wall-mounting / Stacking / Hanging installations | ||||||
| Screen Shape | straight / Right angle optional | ||||||
| Color Enhancement | Yes | ||||||
| Hot swapping | Yes | ||||||
| HUB connection | Yes | ||||||
| Modulization | Yes | ||||||
Applications
Rgbvisionled U3 in right angle application

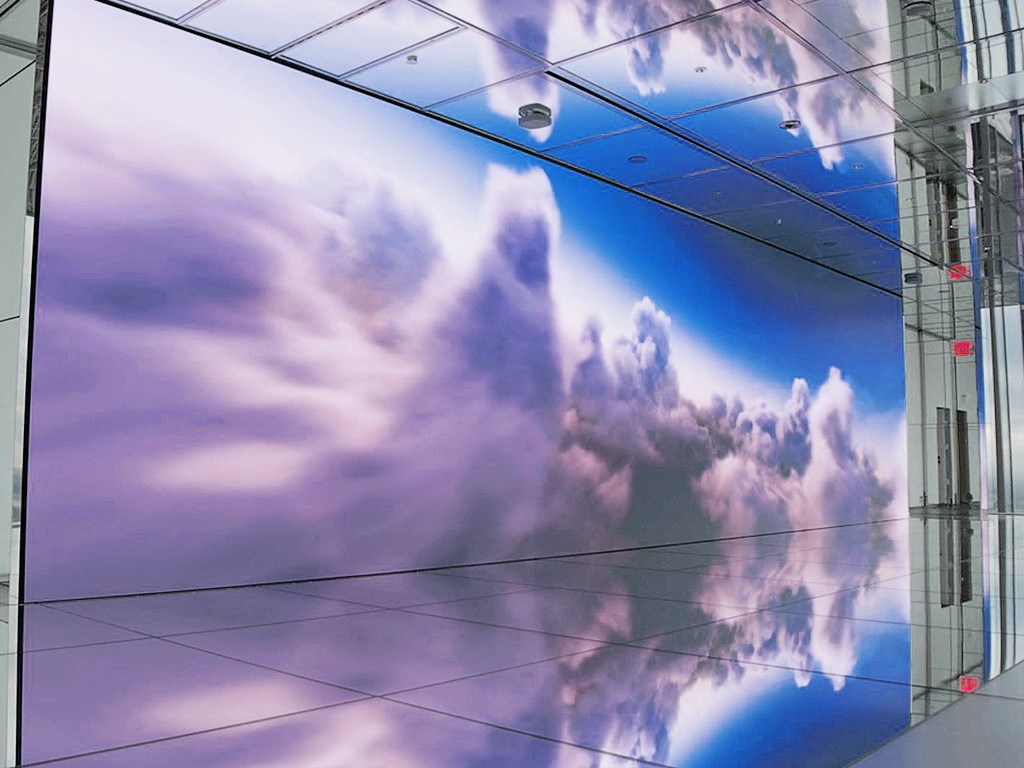

Rgbvisionled U3 in indoor commercail application
Rgbvisionled U3 in creative LED application

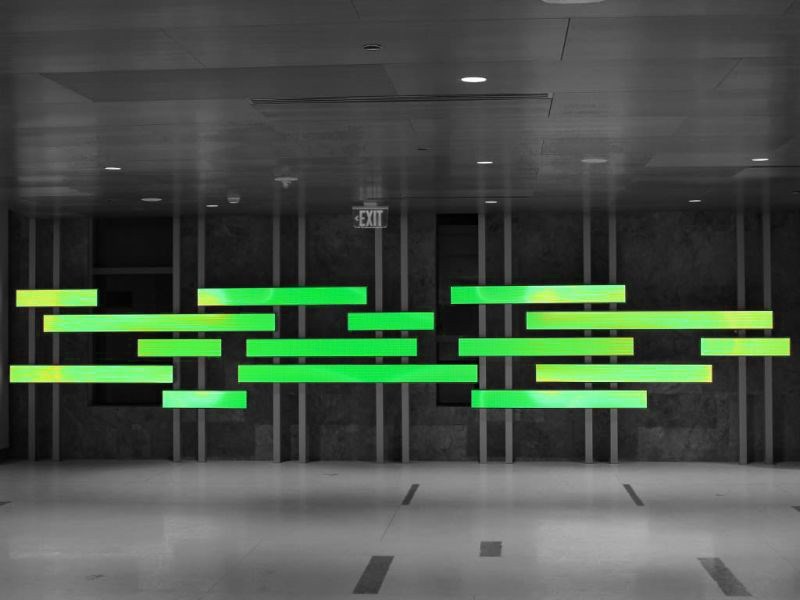

Rgbvisionled U3-1.95-1000x250 with dislocated installation
