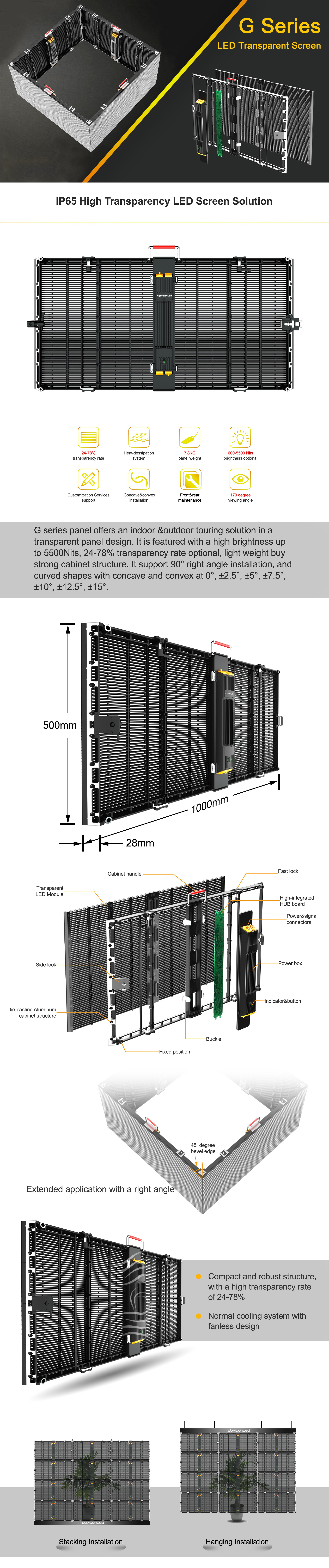

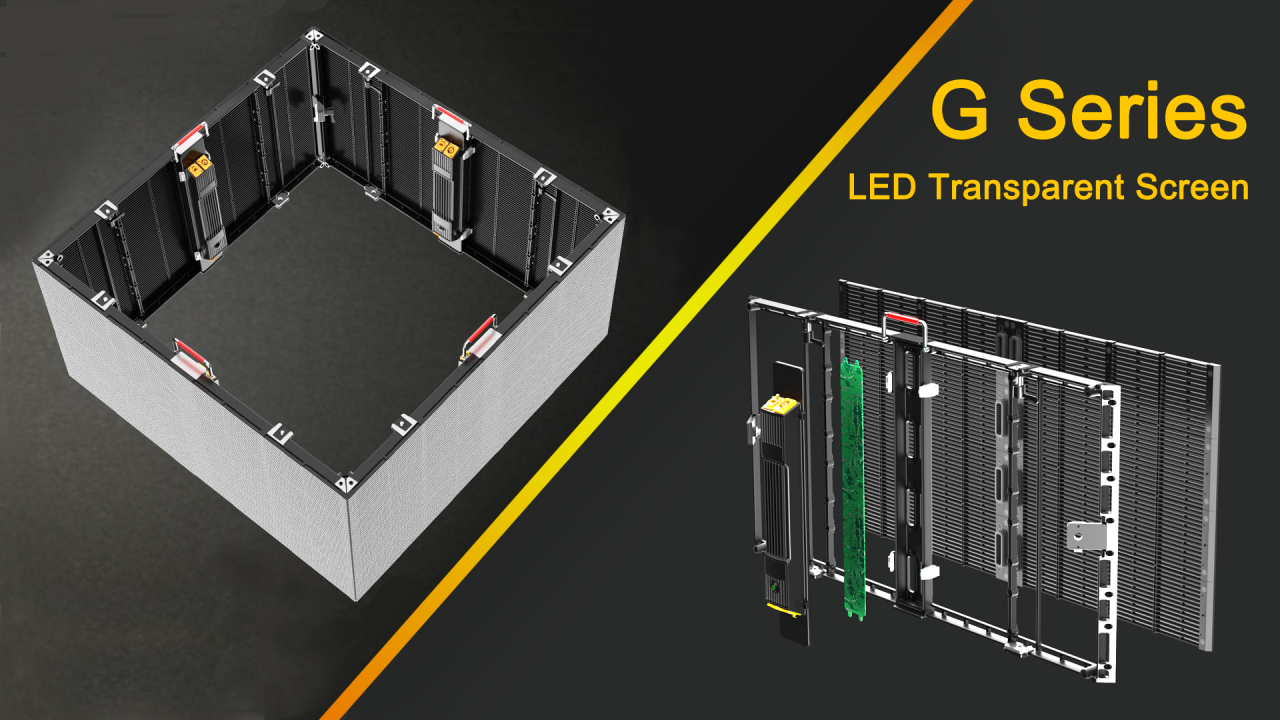

G Series

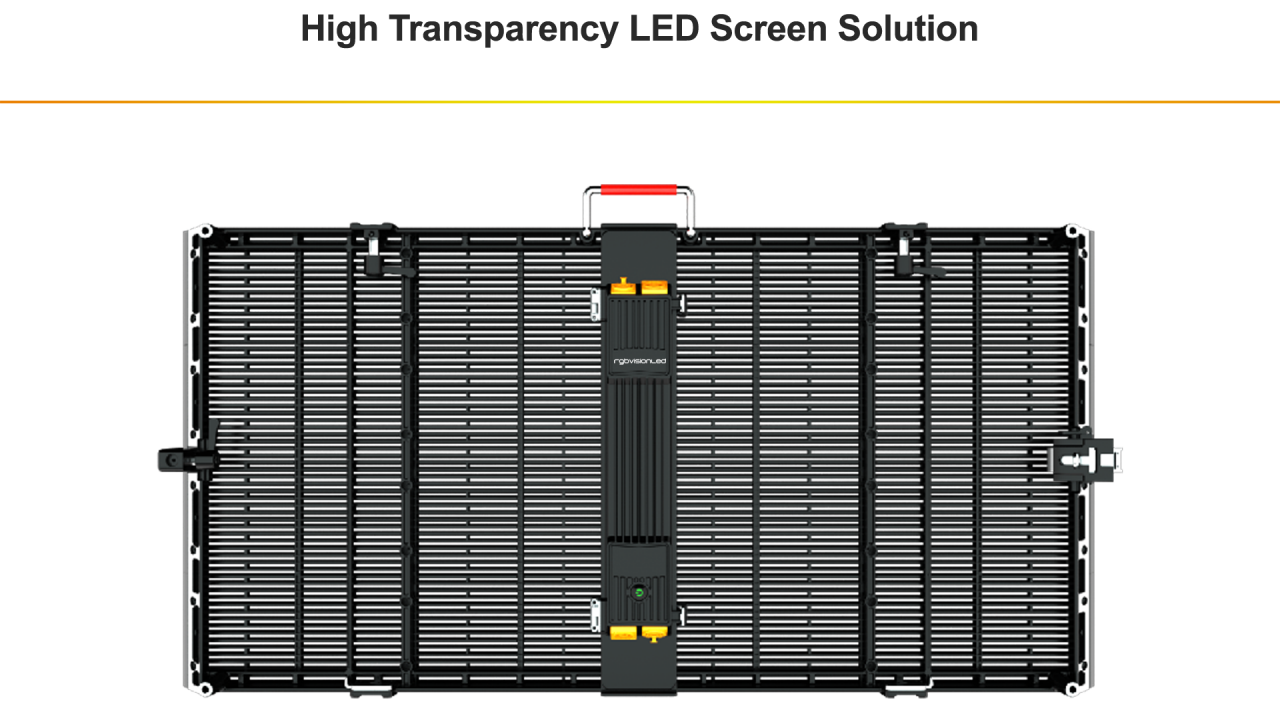

Transparent LED Solution
P3.9-7.8
Transparent LED Solution
P3.9-7.8

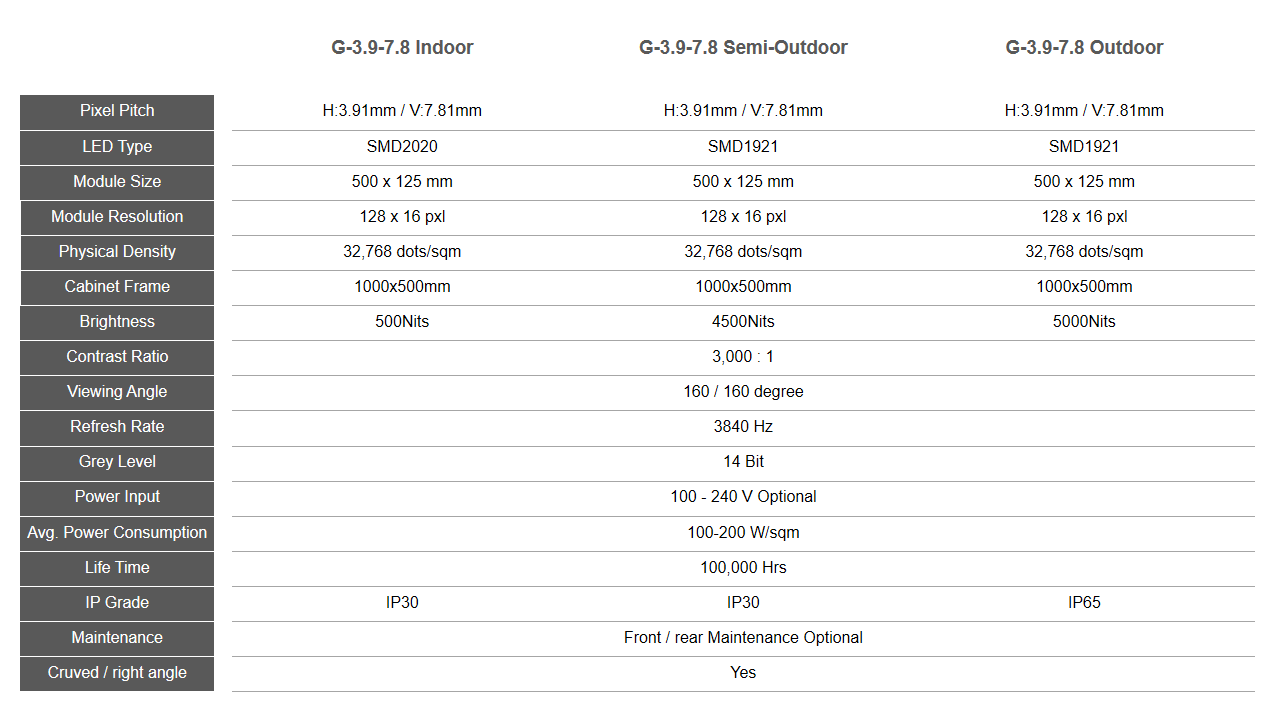

G Series Transparent Screen | |||
Model | G-3-I | G-3-S | G-3-O |
Pixel Pitch | Horizontal: 3.91mm / Vertical: 7.82mm | ||
Pixel Density | 32768 dots/sq.m | ||
LED Type | SMD2020 | SMD1921 | |
Scan Mode | 1/8 S | ||
Refresh Rate | ≥ 3840Hz | ||
Module Size | 500x250 mm | ||
Module Resolution | 128x16 pxl | ||

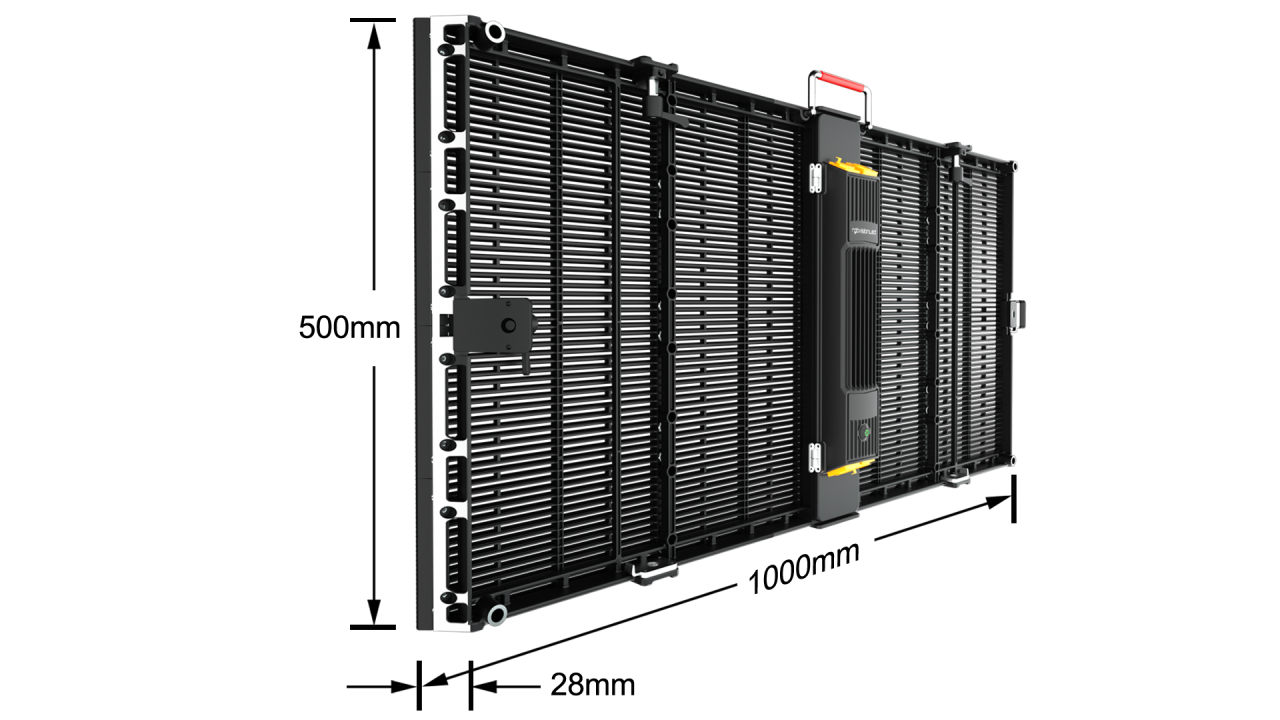

Cabinet Size | 1000x500 mm | ||
Cabinet Resolution | 256x128 pxl | ||
Brightness | 600-800 Nits | 4000-5000 Nits | 4500-5500 Nits |
Transparecy Rate | 45% | 24% | |
Viewing Angle: (H/V) | 170/170 Degree | ||

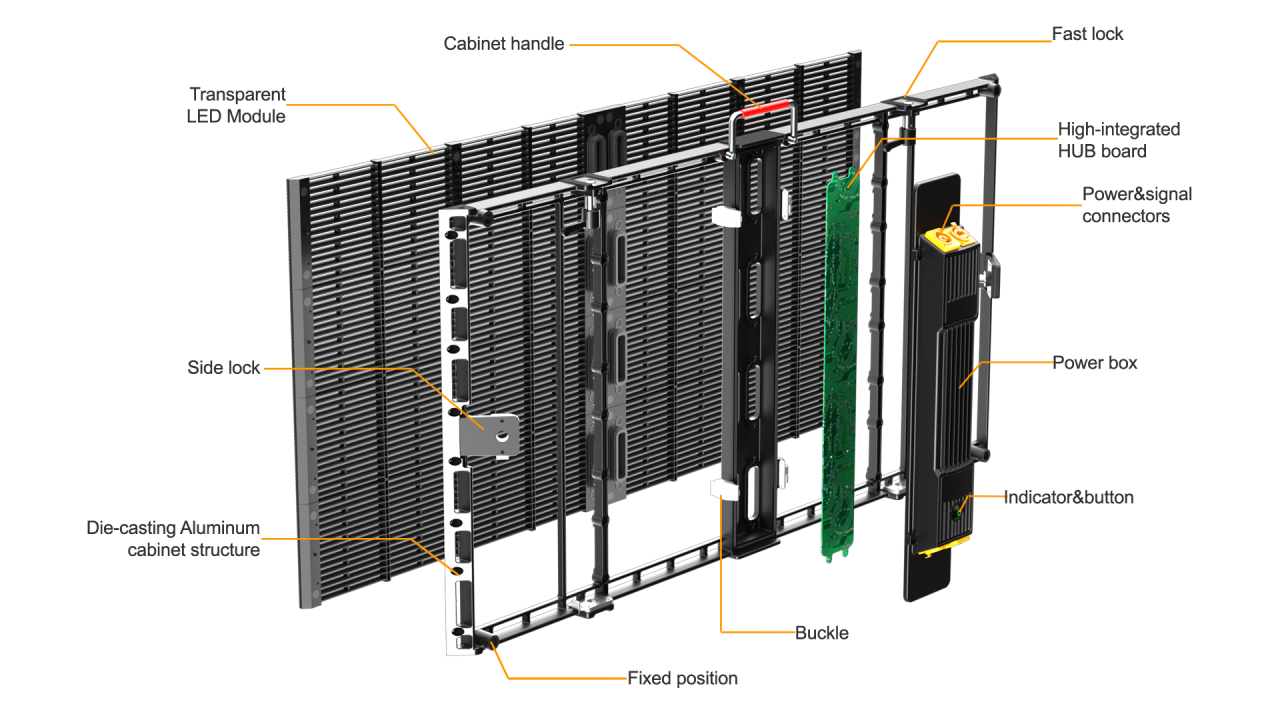

Cabinet Material | Die-casting Aluminum | ||
Cabinet Weight | 7.9 KG | ||
Input Voltage: | AC100-240V/50-60Hz | ||
Max Power C. | 800 W/sq.m | ||
Average Power C. | 150-250 W/sq.m | ||
Life Span | ≥ 100,00 Hrs | ||
IP Rate | IP63 | IP65 | |
Maintenance Access | Rear access maintenance (Front access maintenance optional) | ||
Max Stacking | 30 panels | ||
Installation | Wall-mounting / Stacking / Hanging installations | ||

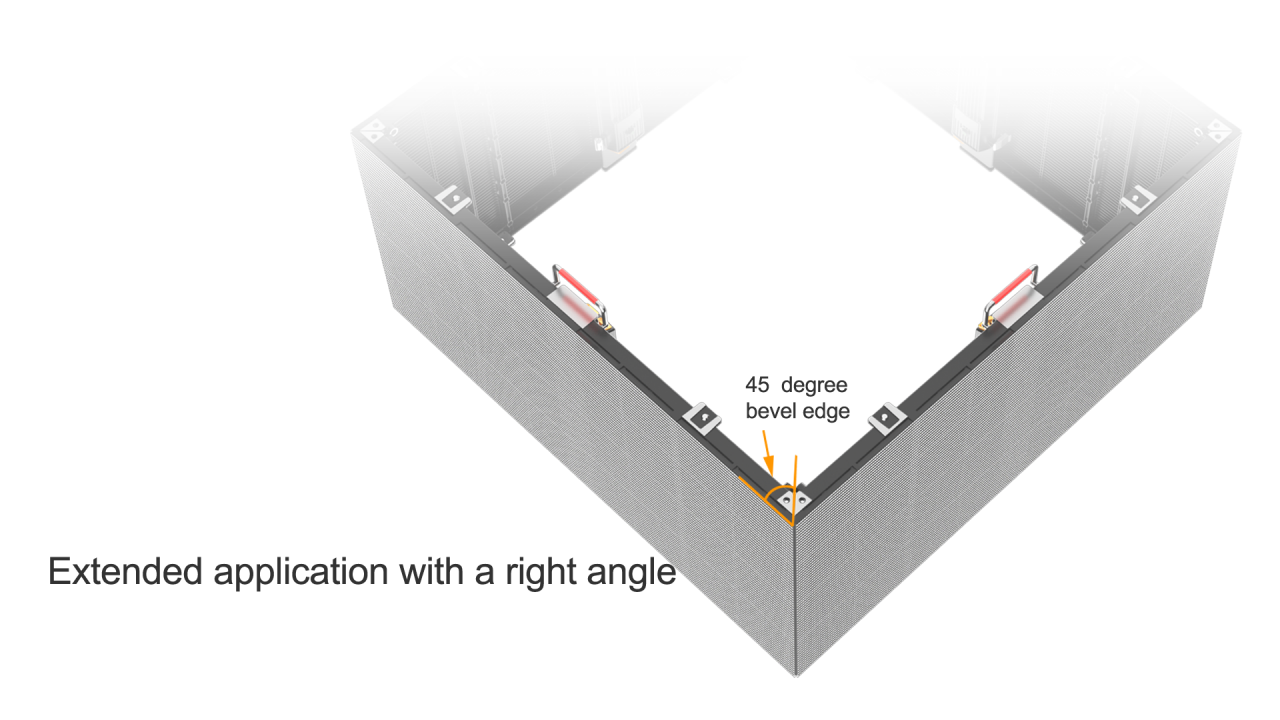

Screen Shape | Straight / Curved / Right angle optional | ||
Color Enhancement | Yes | ||
Hot swapping | Yes | ||
HUB connection | Yes | ||
Modulization | Yes |
