E-con DOOH
LED Display Solution

P3.123 / P4.16 / P5 / P6.25 / P1.81 / P10
Quantity
-
+
Stock:
0
1
Product Description

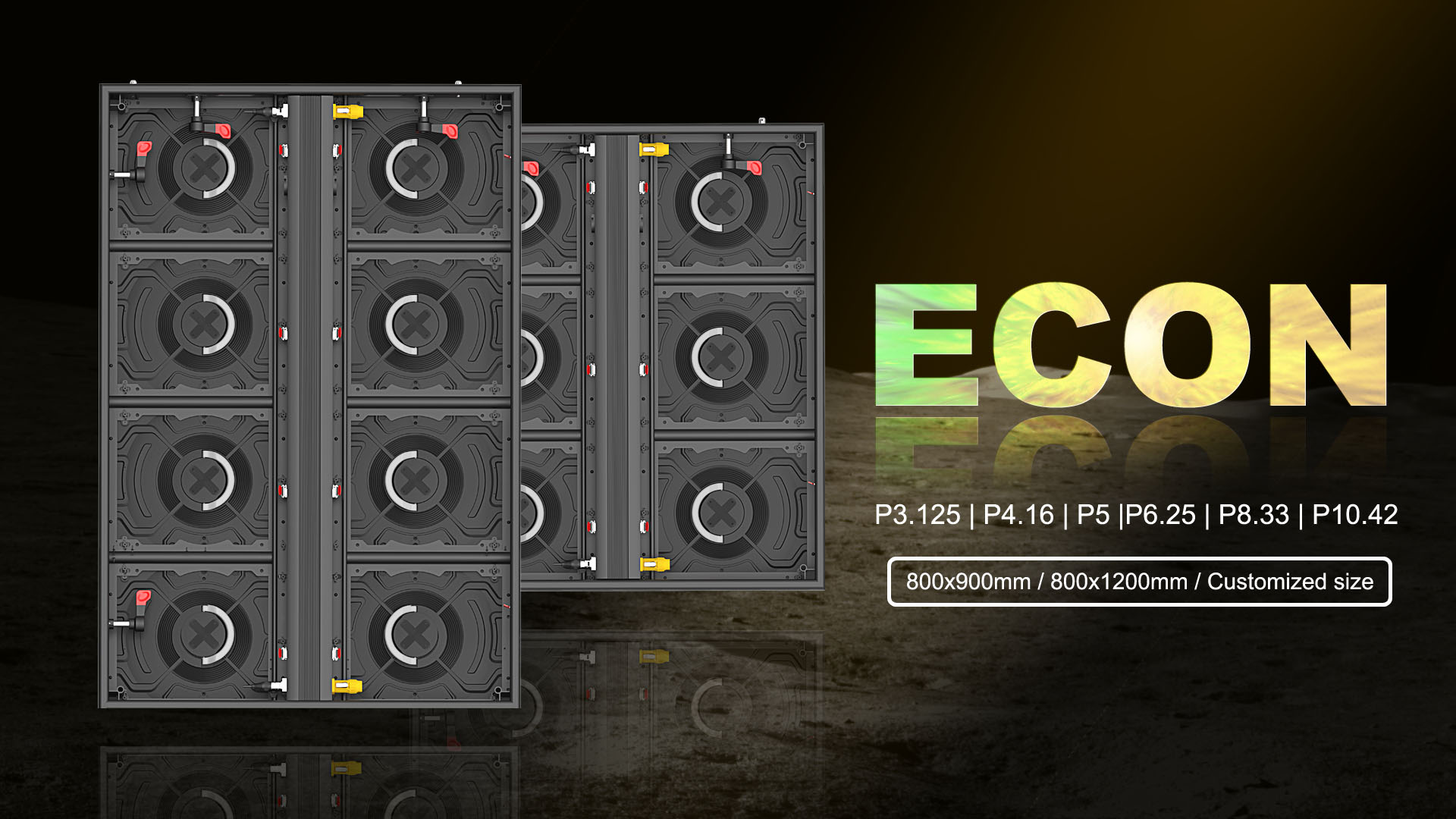

   ECON

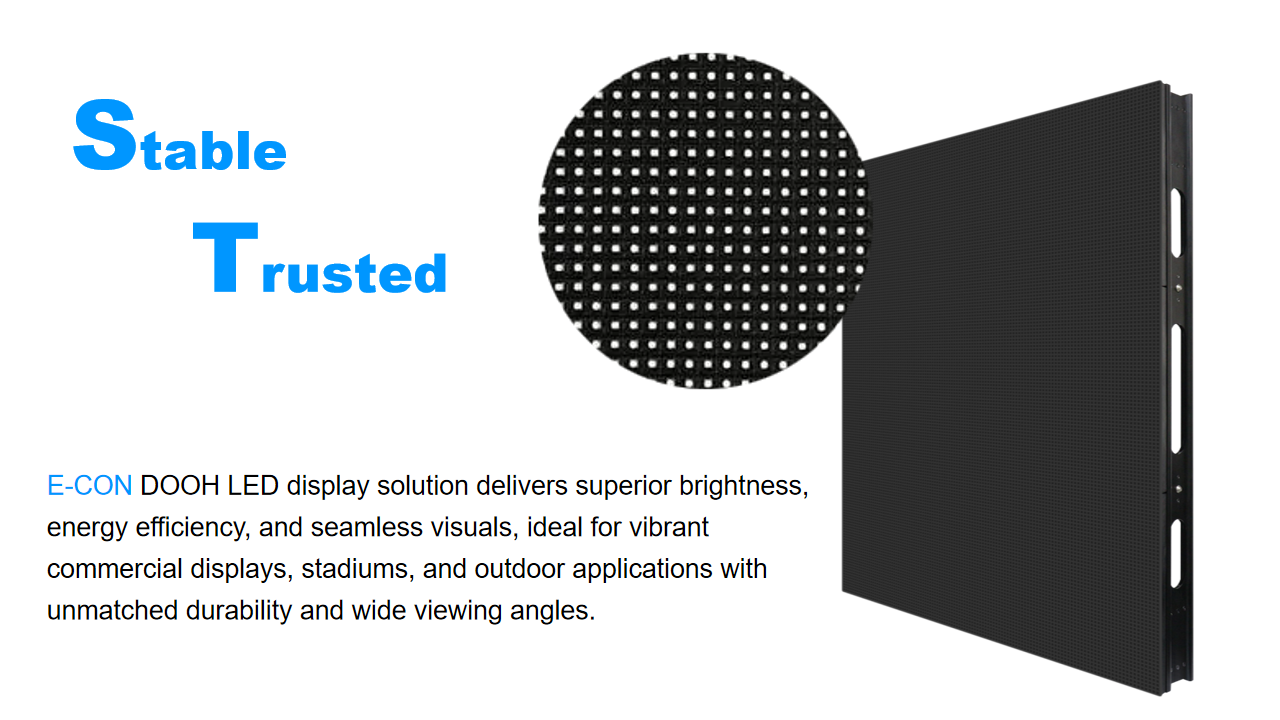

The RGBVISIONLED ECON is an outdoor ultra-high-definition

small pitch display, suitable for arc splicing at any angle with a

radius greater than 0.5m. It is especially designed for outdoor

glasses-free 3D projects. With seamless stitching, the screen

will be smooth without gaps.

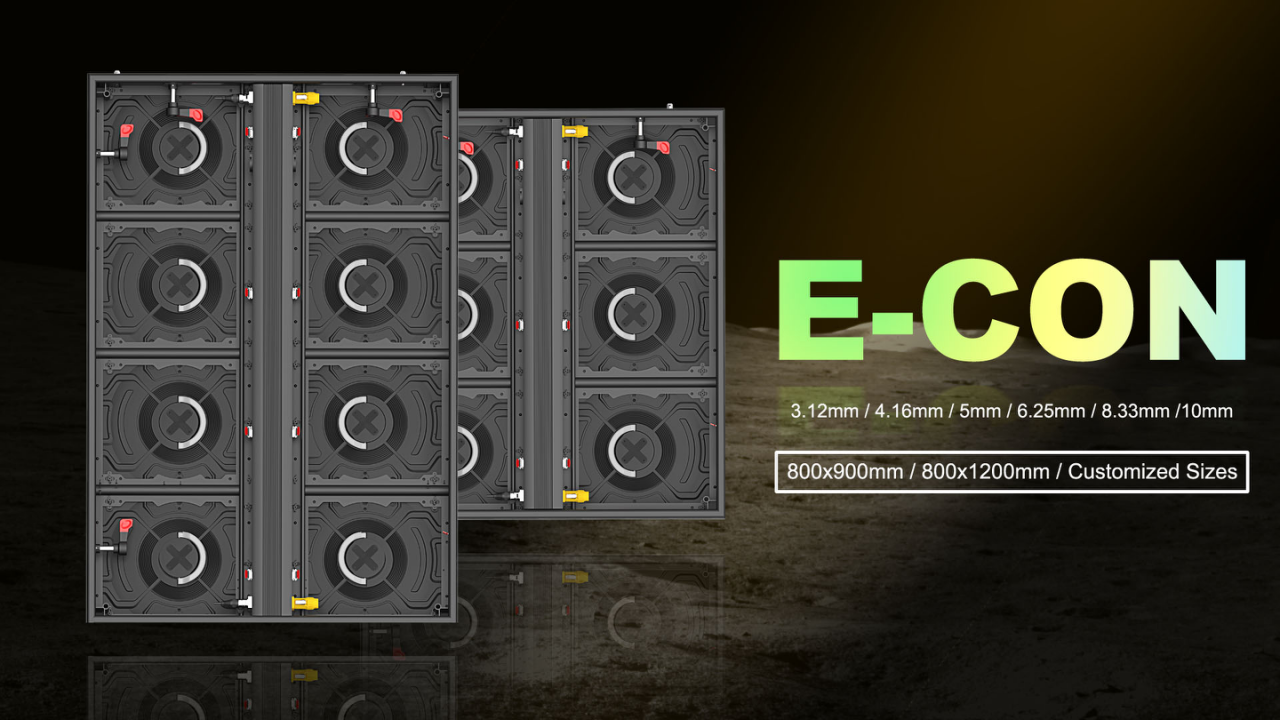

Panel Size (mm):800x900mm / 800x1200mm(W*H) / Customized

Pixel Pitch (mm):3.125 / 4.16 / 5 / 6.25 / 8.33 / 10.416

Brightness (nits):5000-10000 Optional

Weight (kg/Panel):28.5

Operating Temperature Range:-30℃ – 50℃






Curved Corner Available

High brightness

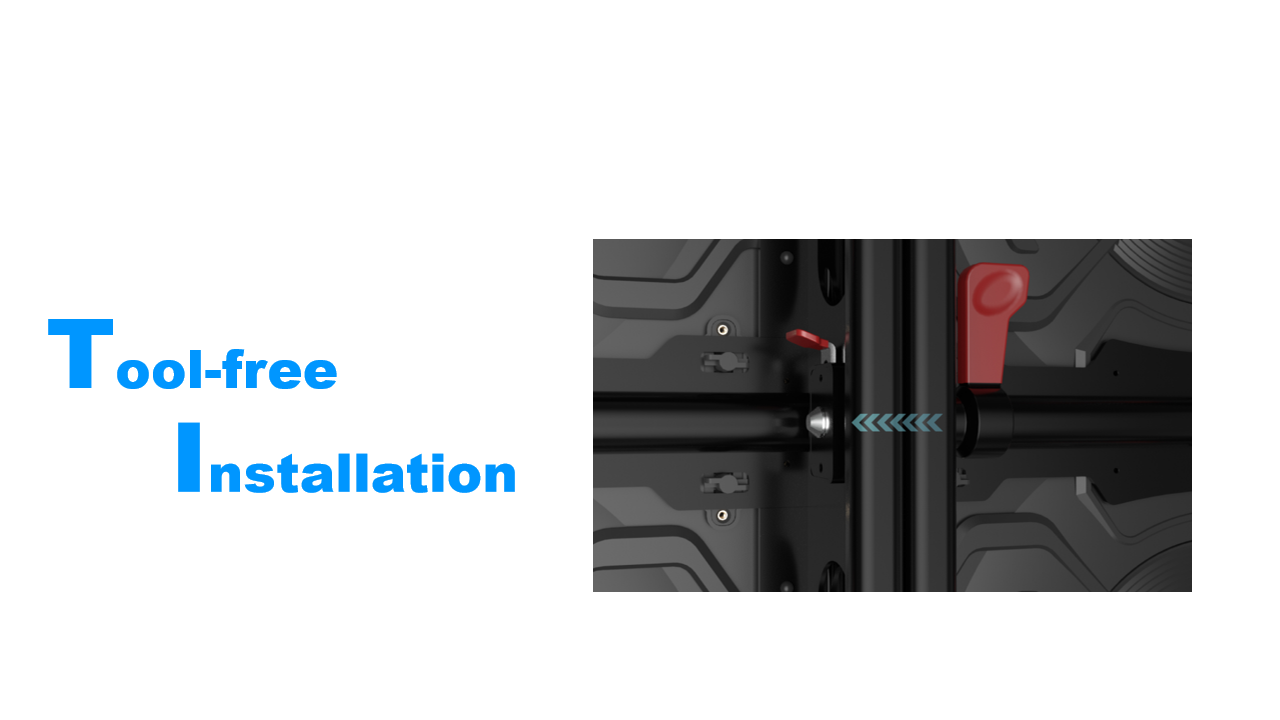

Easy Install & Maintenance

curved 90 degree panel available

Standard 7,500nits brightness;

10,000nits brightness available

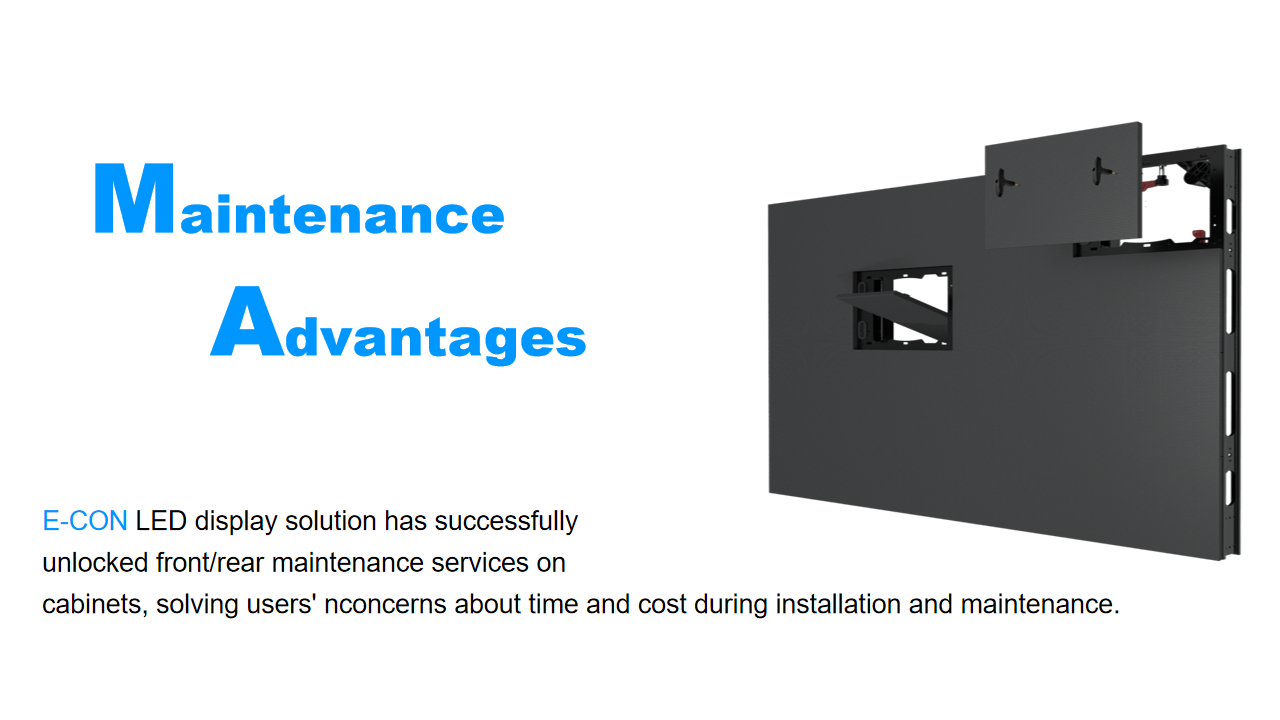

Can be installed and maintained

from both front and rear

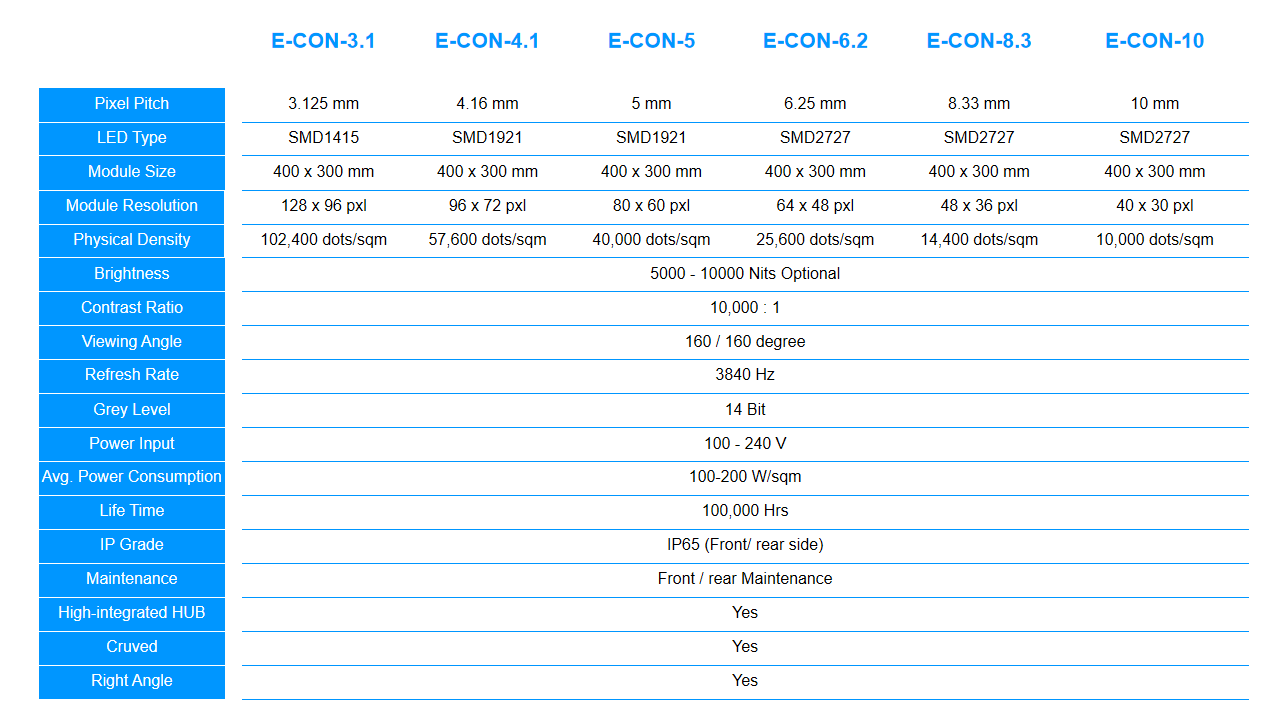

E-con Series DOOH LED Screen
Model E-con-3.1 E-con-4.1 E-con-5 E-con-6.2 E-con-8.3 E-con-10
Pixel Pitch 3.125 mm 4.16 mm 5 mm 6.25 mm 8.33 mm 10 mm
Pixel Density 102400 dots/sq.m 43264 dots/sq.m 40000 dots/sq.m 25600 dots/sq.m 14400 dots/sq.m 10000 dots/sq.m
LED Type SMD1921 SMD 2727
Scan Mode 1/16 S 1/6 S 1/6 S 1/6 S 1/3 S 1/2S
Refresh Rate ≥ 3840Hz
Module Size 400x300 mm
Module Resolution 128x96 pxl 96x72 pxl 80x60 pxl 64x48 pxl 48x36 pxl 40x30 pxl

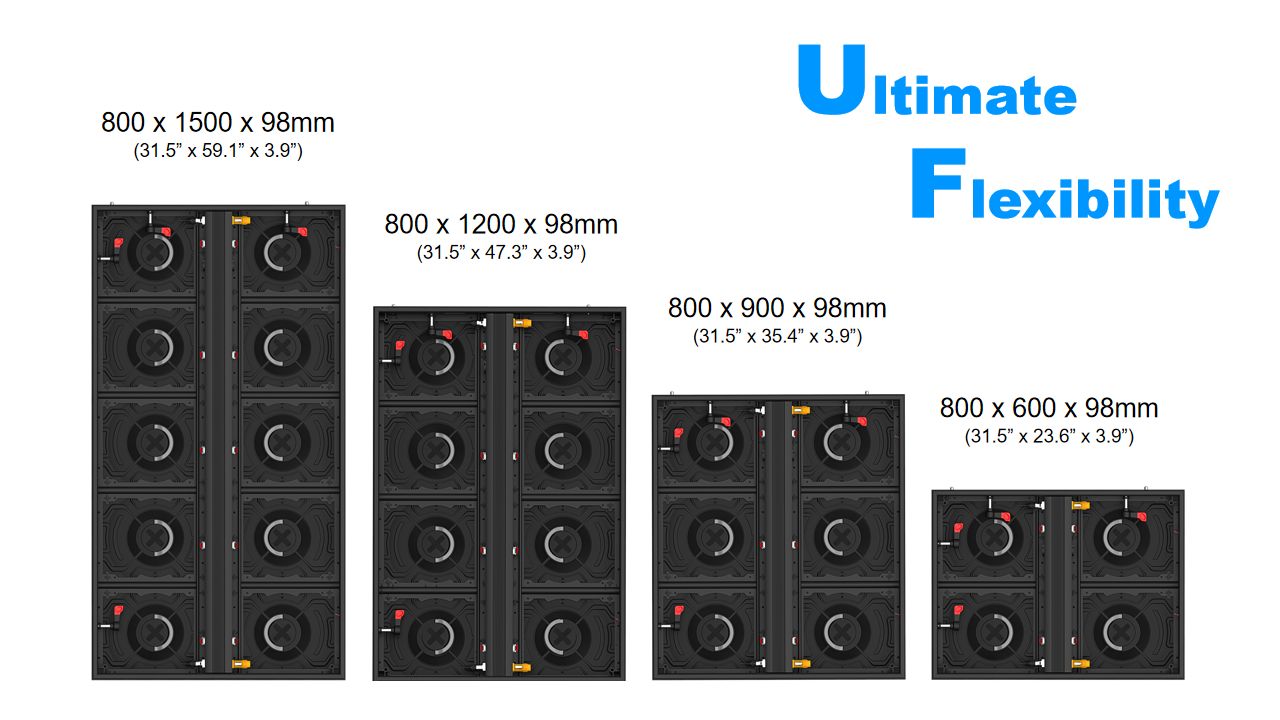

Cabinet Size 800x1200x100 mm (800x900x100mm optional) / Customized
Cabinet Resolution 256x384 pxl 192x288 pxl 160x240 pxl 128x192 pxl 96x144 pxl 80x120 pxl
Brightness 5000-10000 Nits optional
Viewing Angle: (H/V) 170/170 Degree
Cabinet Material Aluminum
Cabinet Weight 28.5 KG
Input Voltage:  AC100-240V/50-60Hz

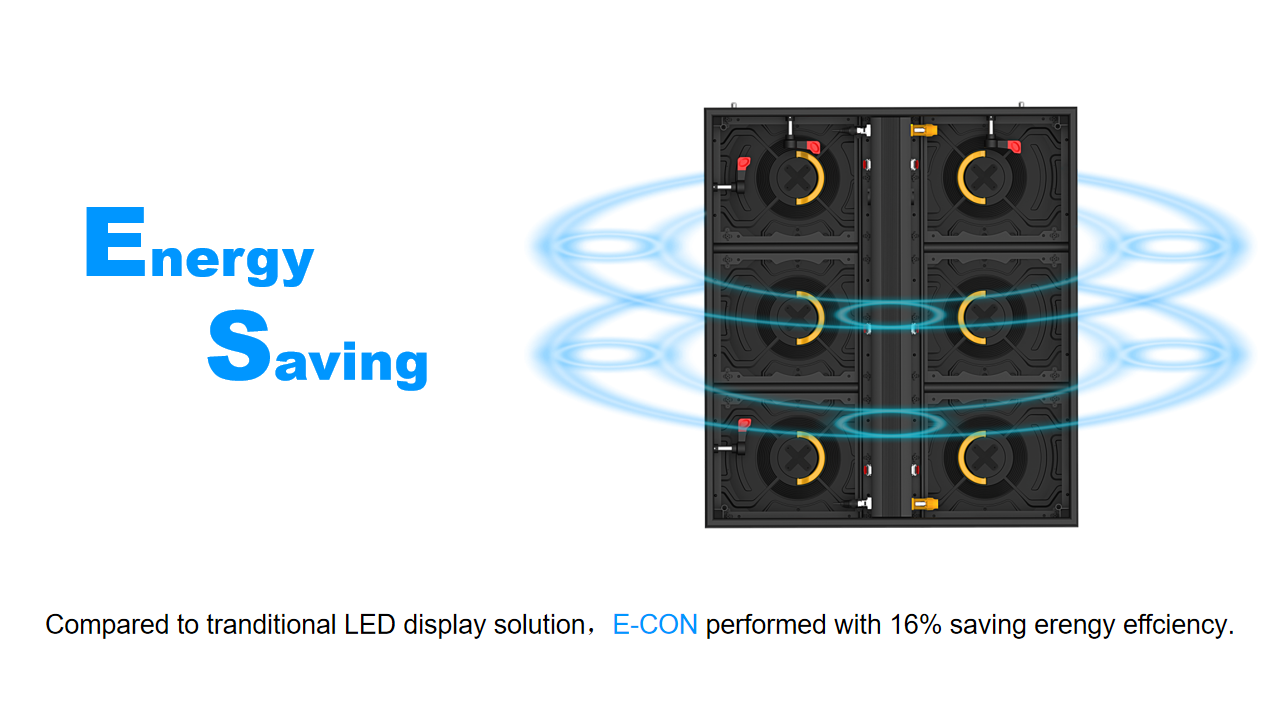

Max Power C. 800 W/sq.m
Average Power C. 150-250 W/sq.m
Life Span ≥ 100,00 Hrs

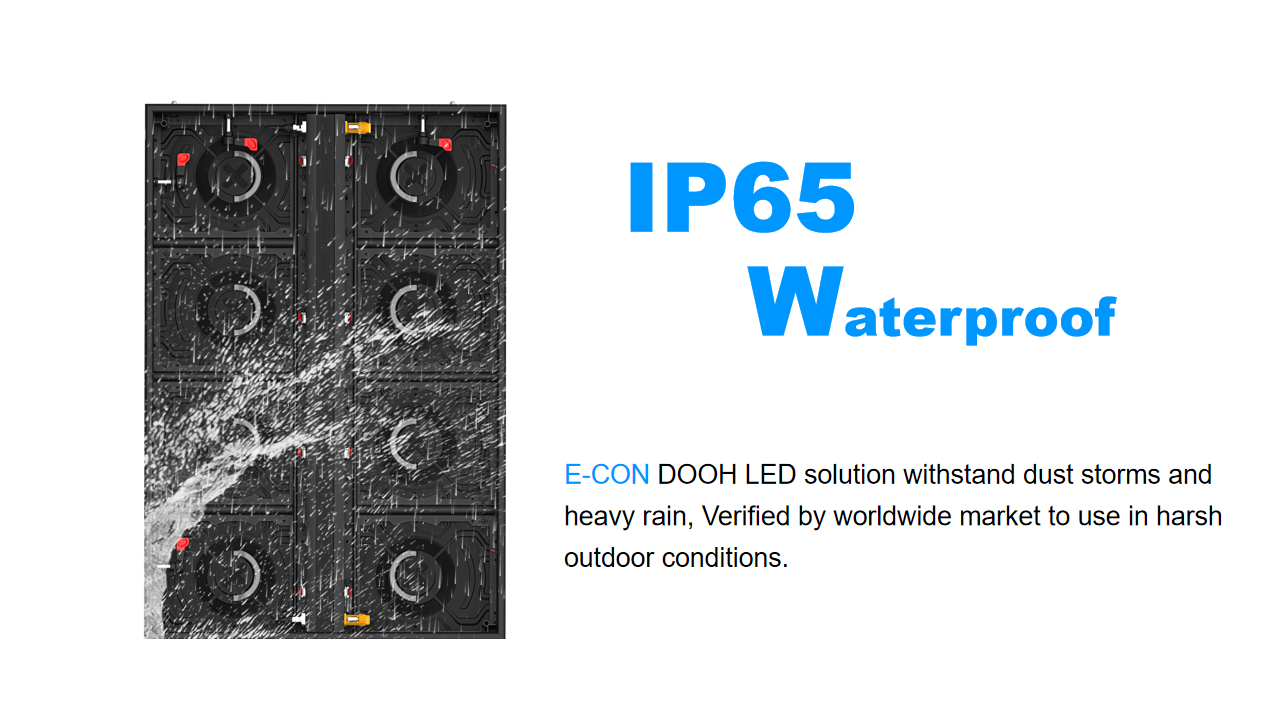

IP Rate IP65
Maintenance Access Front / rear access maintenance
Max Stacking 30 panels

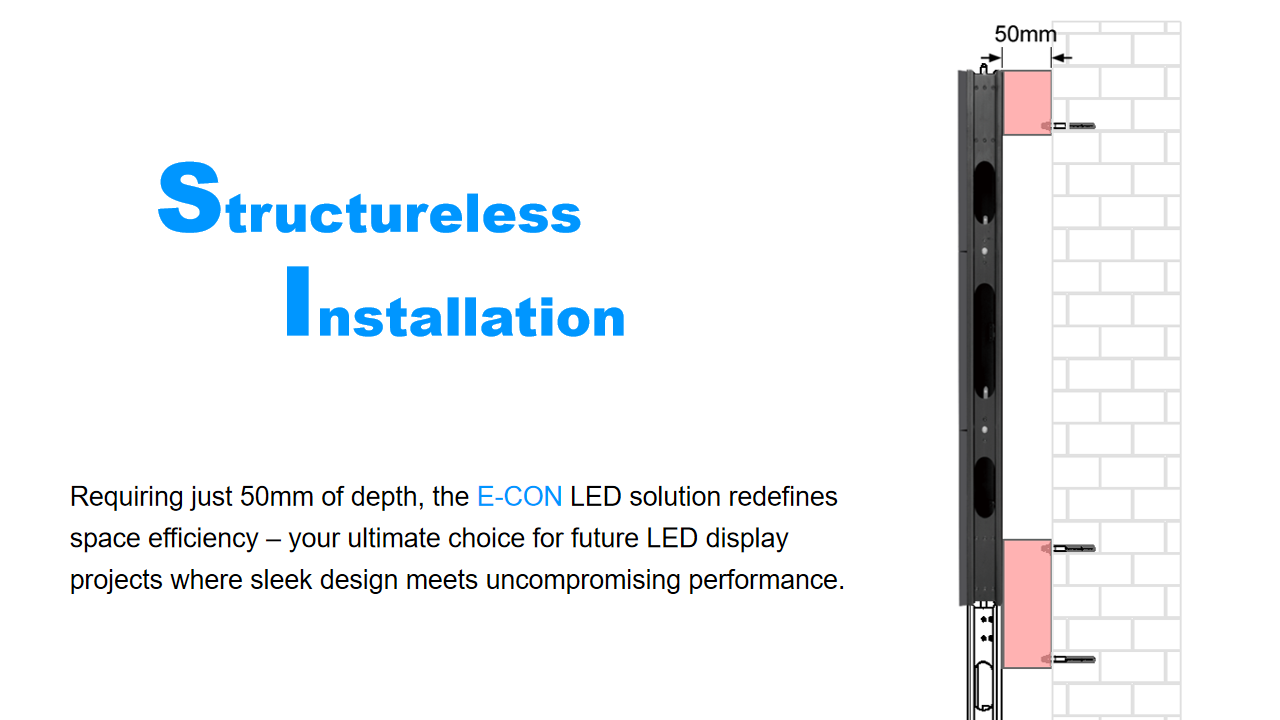

Installation Wall-mounting / Stacking / Hanging installations
Screen Shape straight
Color Enhancement Yes

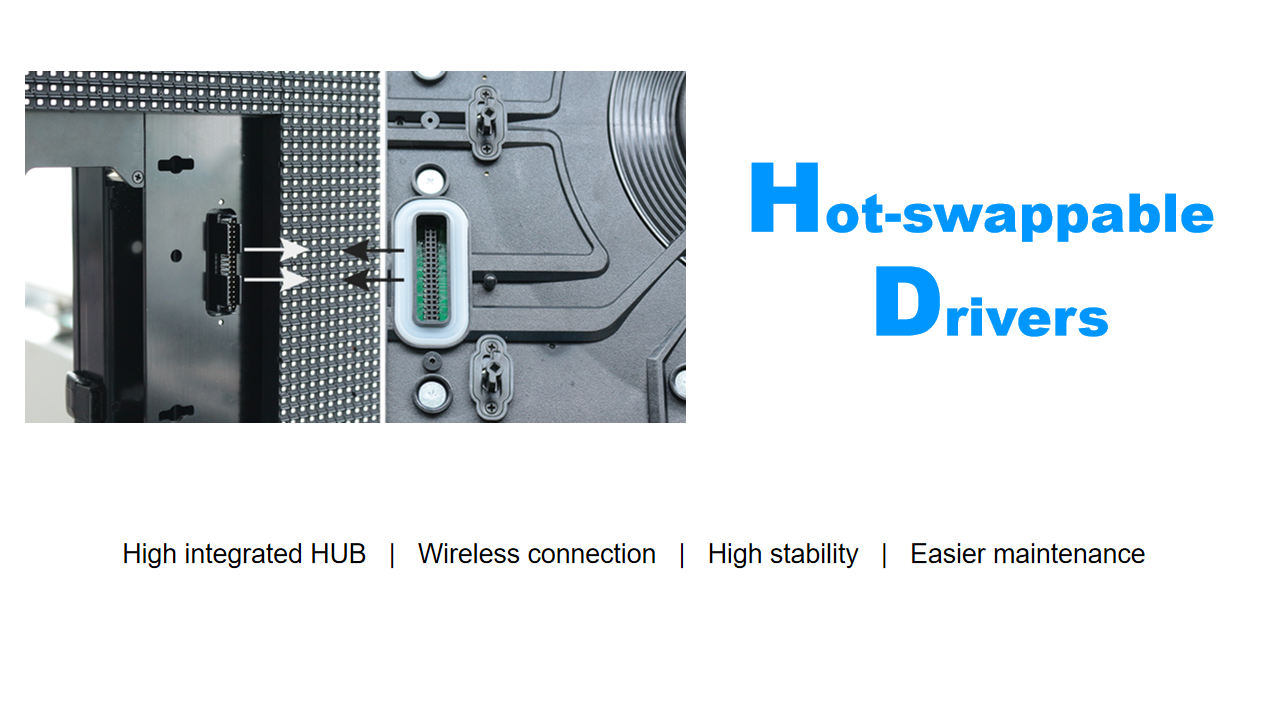

Hot swapping Yes
HUB connection Yes
Modulization Yes
