UTV Series
Fine Pitch HD Solution

P0.9 / P1.2 / P1.5 / P1.8

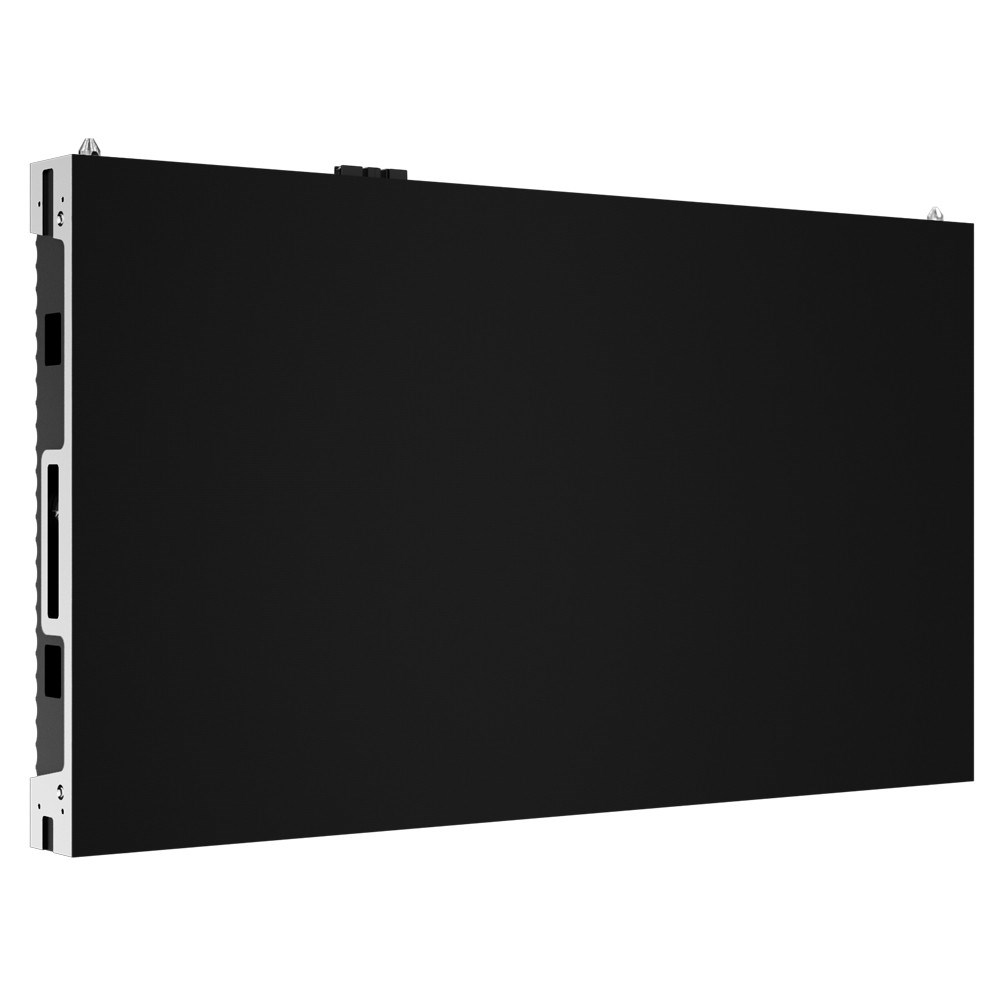

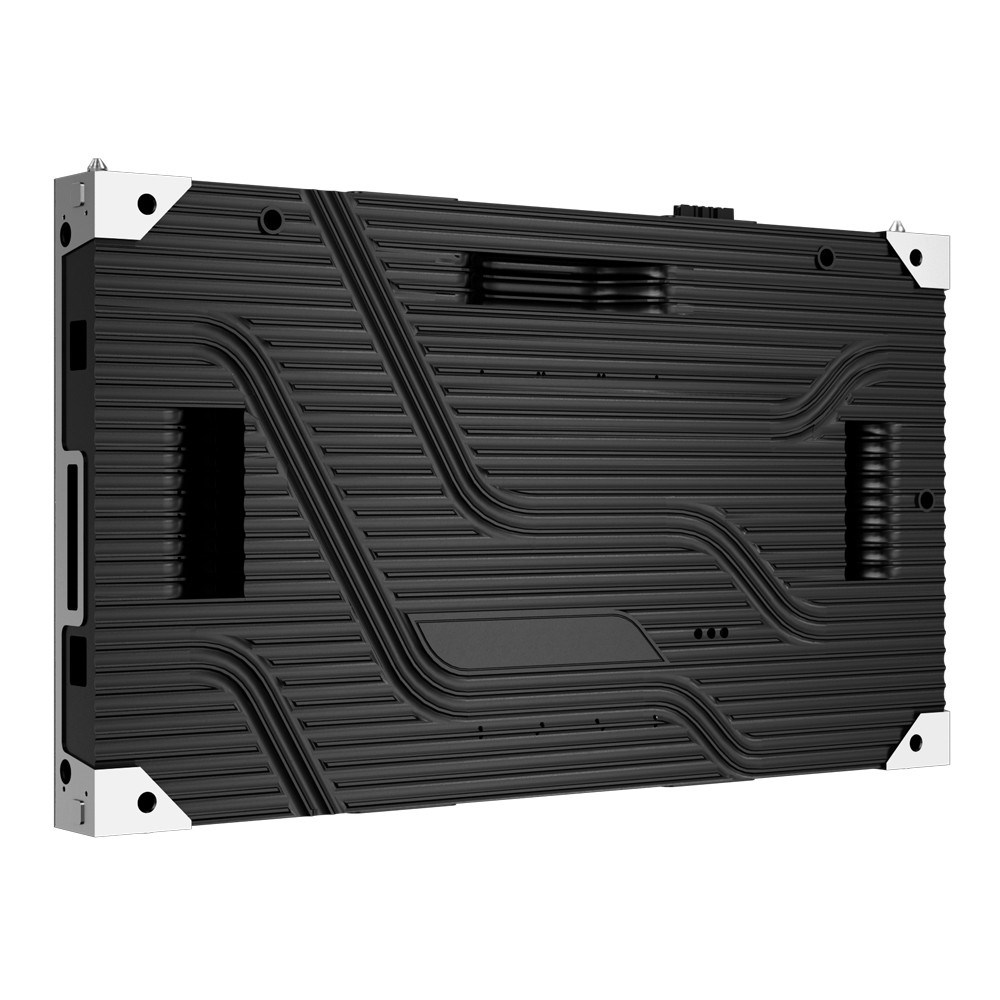

UTV Series LED Small Pixel Pitch Screen

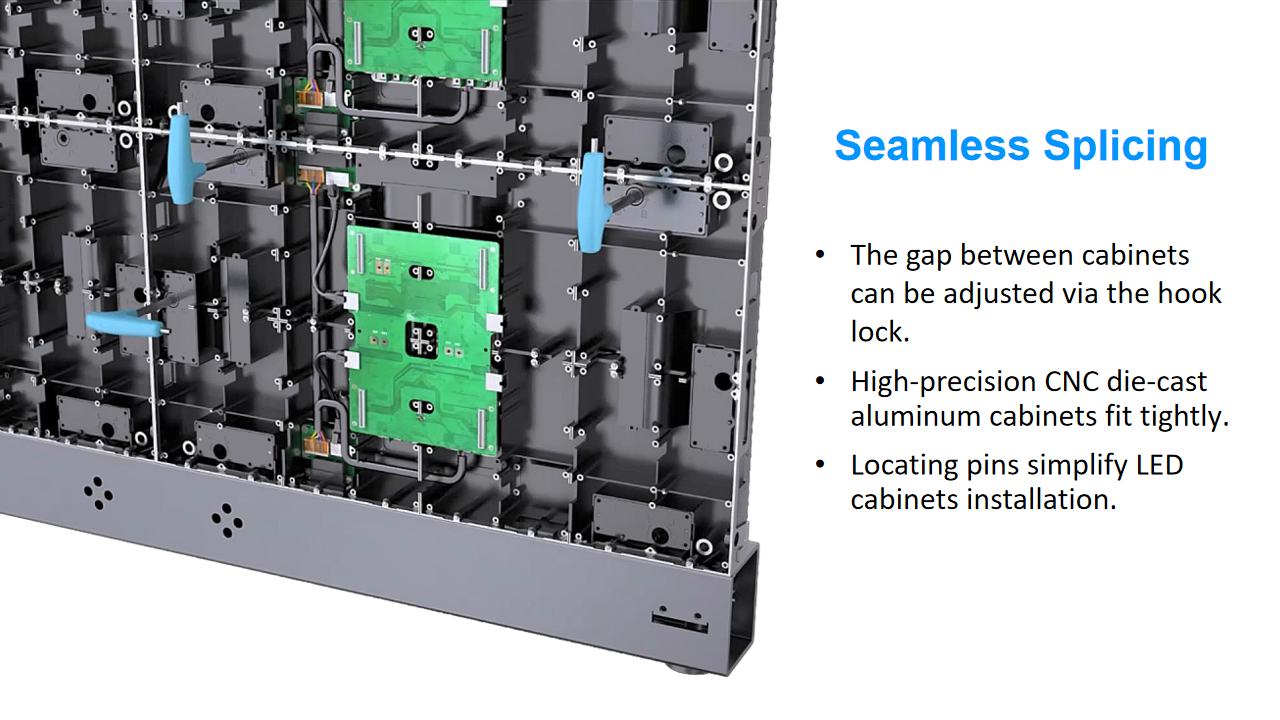

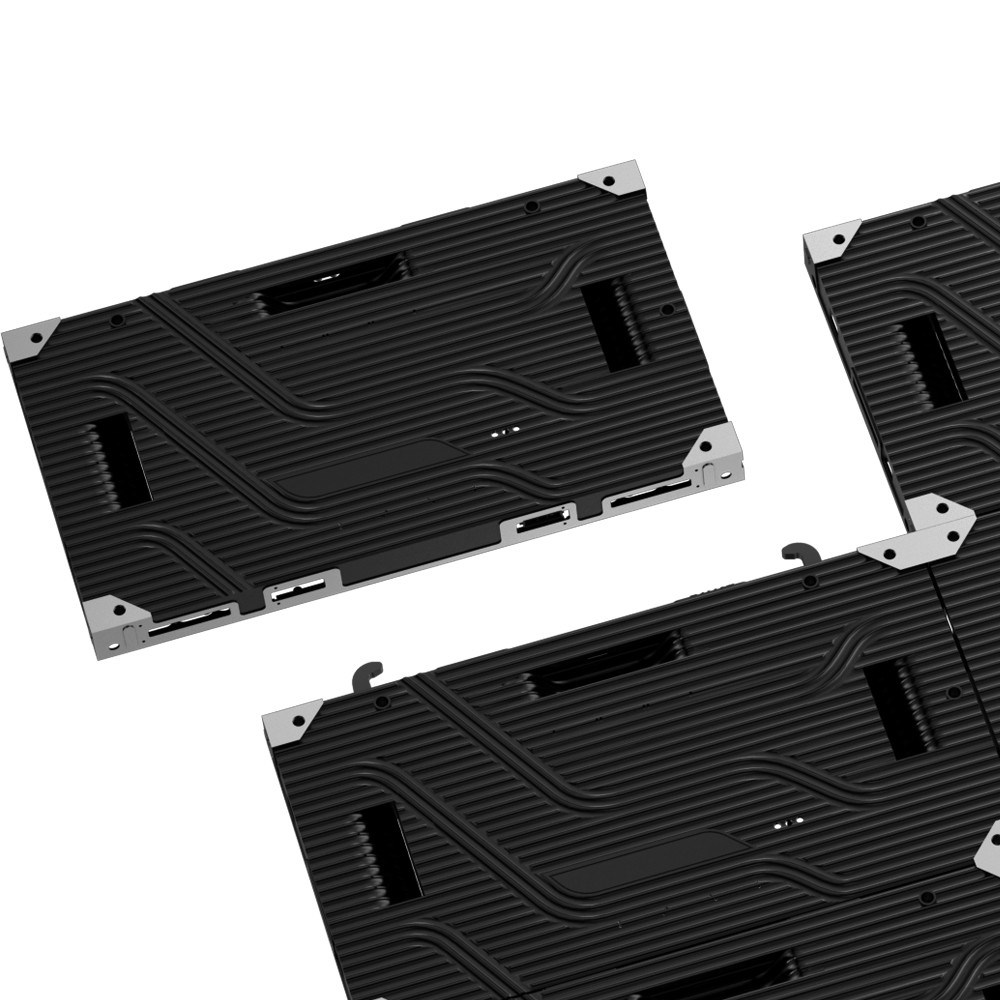

48mm streamlined cabinet structure

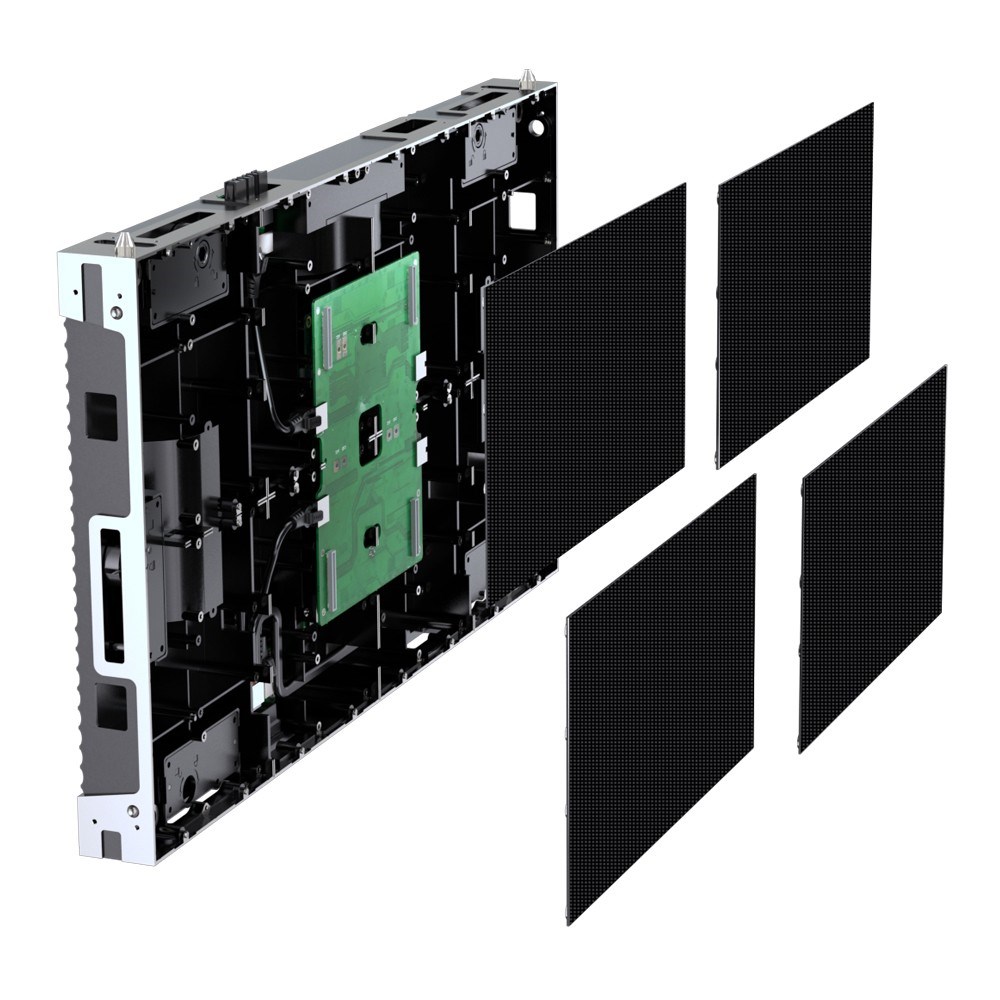

full front accessories miantenance

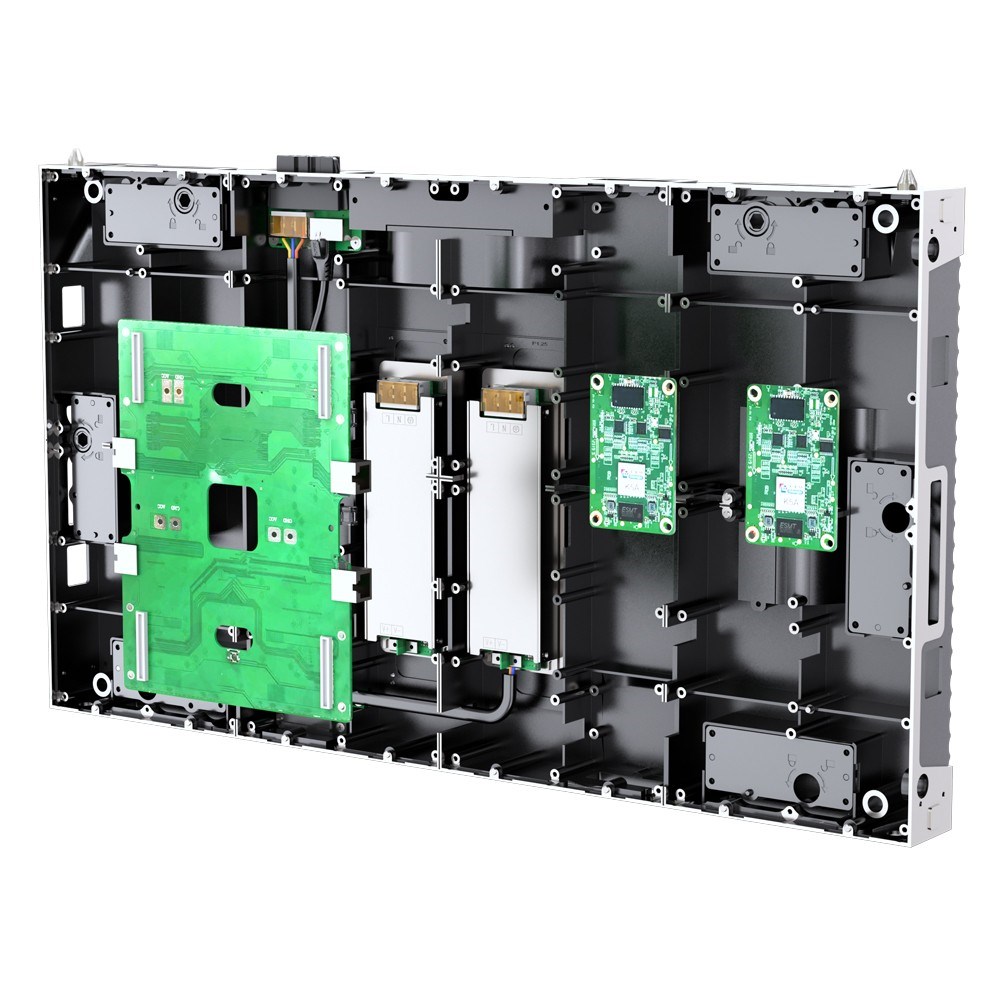

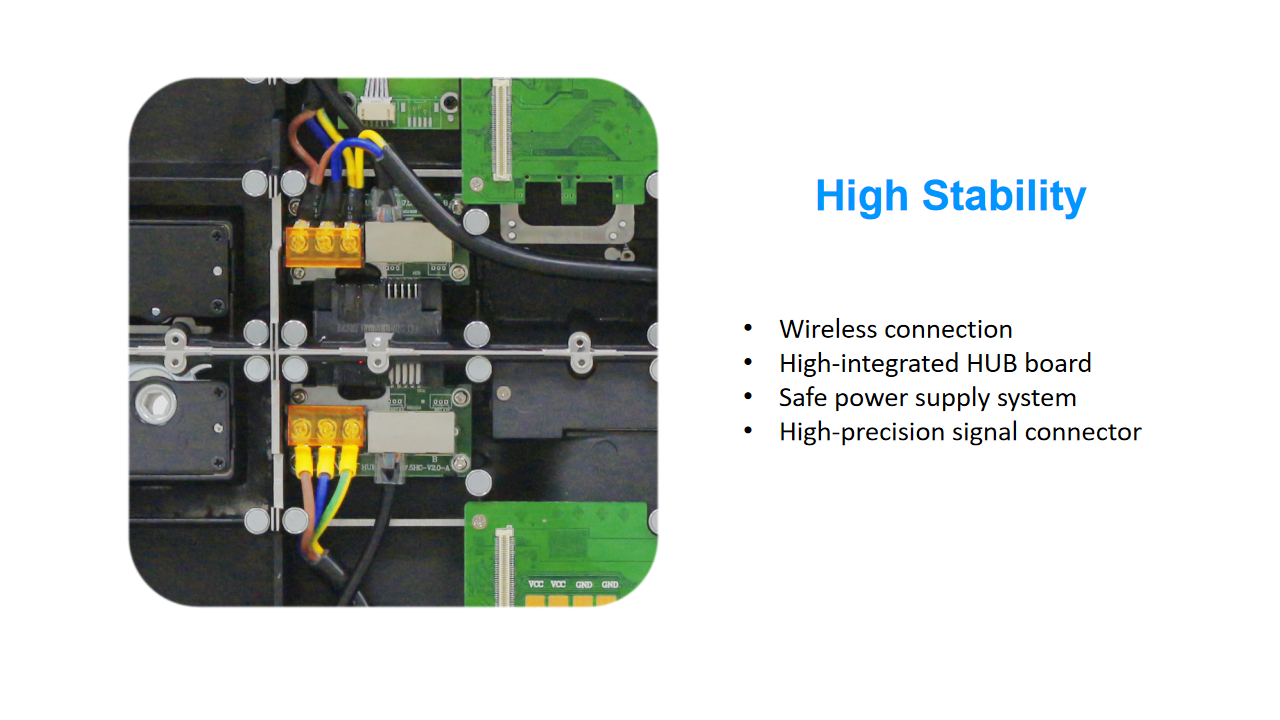

High-integrated HUB board connection
Quantity
-
+
Stock:
0
1
Product Description




Specification download:







BTV Series LED Small Pixel Pitch Screen
Model UTV-0.9 UTV-1.2 UTV-1.5 UTV-1.8
Pixel Pitch 0.9375 mm 1.25 mm 1.5625 mm 1.875 mm
Pixel Density 1137778 dots/sq.m 640000 dots/sq.m 409600 dots/sq.m 284444 dots/sq.m
LED Type MINI 4-in-1 SMD1010 SMD1212 SMD1515
Scan Mode 1/46 S 1/45 S 1/48 S 1/45 S

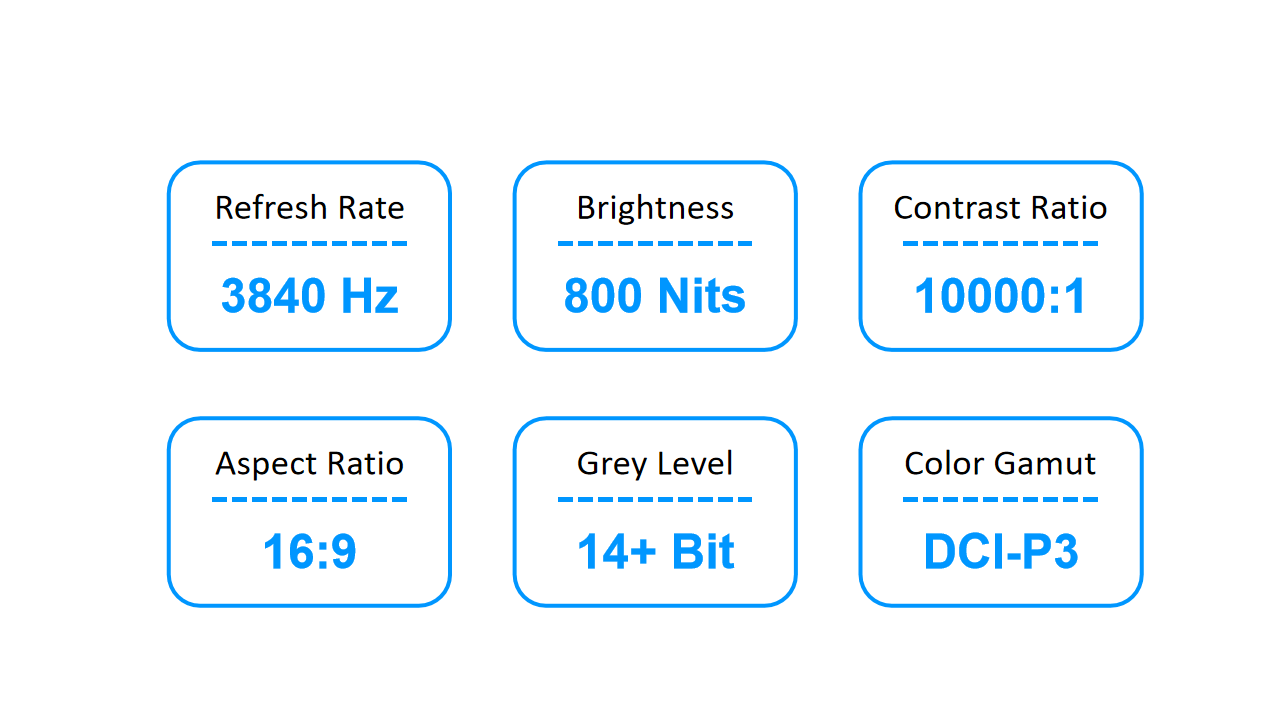

Refresh Rate ≥ 3840Hz
Module Size 300x168.75 mm 300x168.75 mm 300x168.75 mm 300x168.75 mm
Module Resolution 320x180 pxl 240x135 pxl 192x108 pxl 160x90 pxl

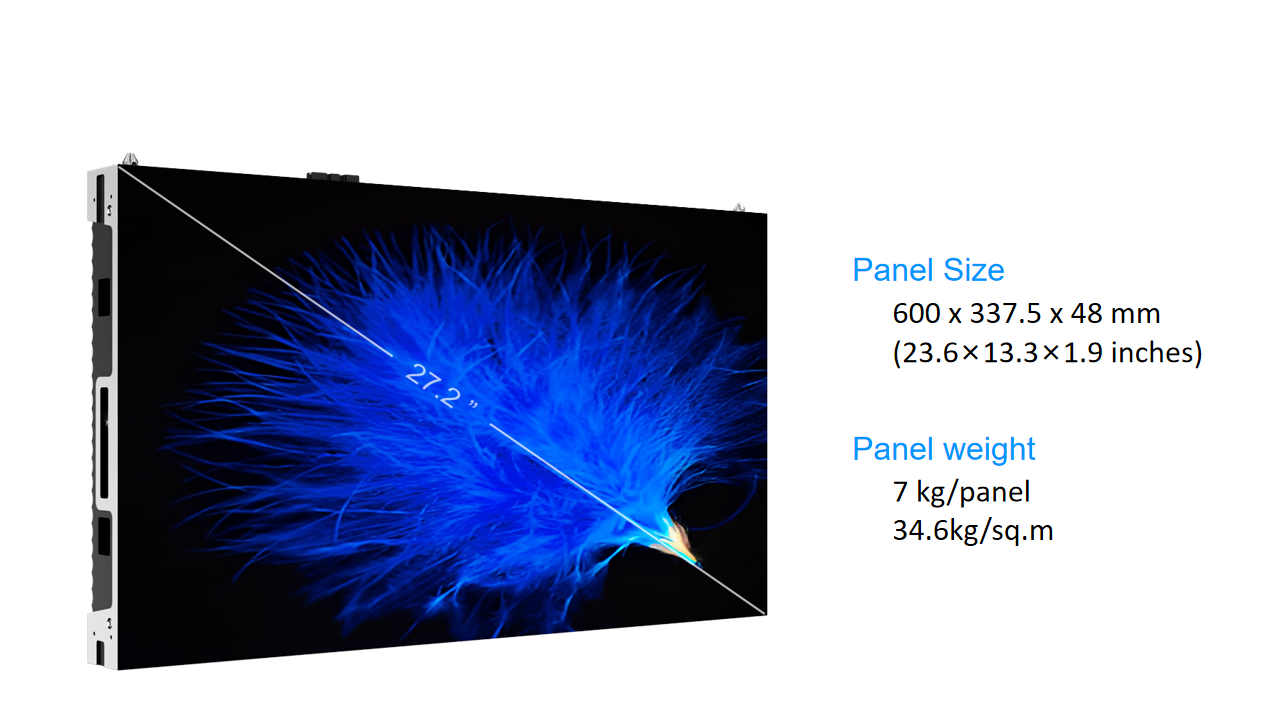

Cabinet Size 600x337.5x48 mm
Cabinet Resolution 640x360 pxl 480x270 pxl 384x216 pxl 320x180 pxl
Brightness 300-500 Nits 400-600 Nits 400-600 Nits 500-700 Nits
Viewing Angle: (H/V) 160/160 Degree

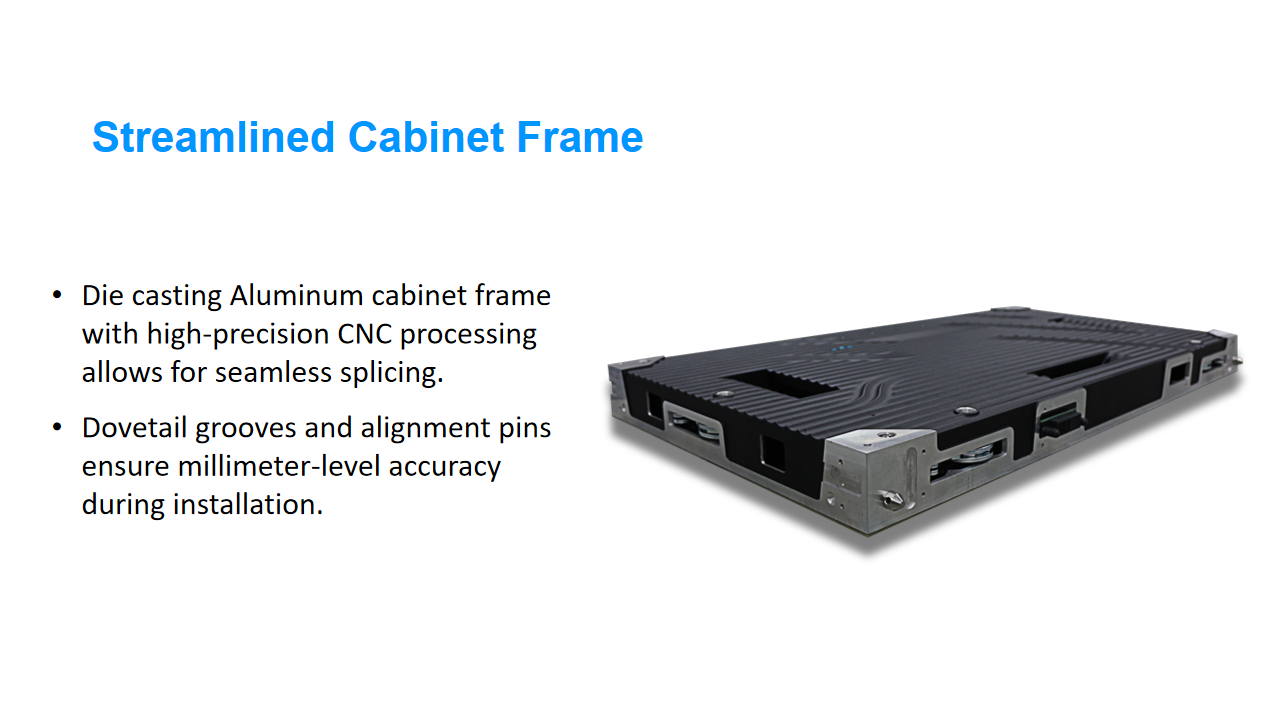

Cabinet Material Die-casting Aluminum
Cabinet Weight 9.5 KG
Input Voltage:  AC100-240V/50-60Hz
Max Power C. 800 W/sq.m
Average Power C. 150-250 W/sq.m
Life Span ≥ 100,00 Hrs
IP Rate IP63

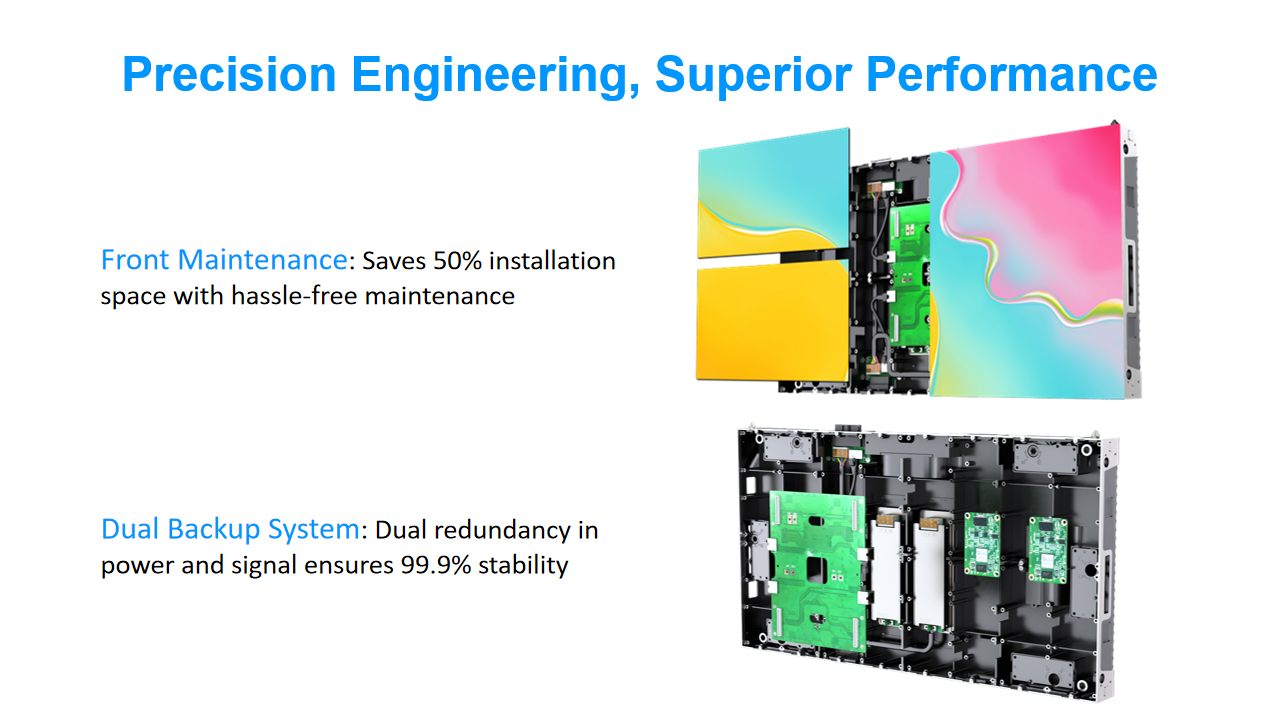

Maintenance Access Front access maintenance
Max Stacking 30 panels

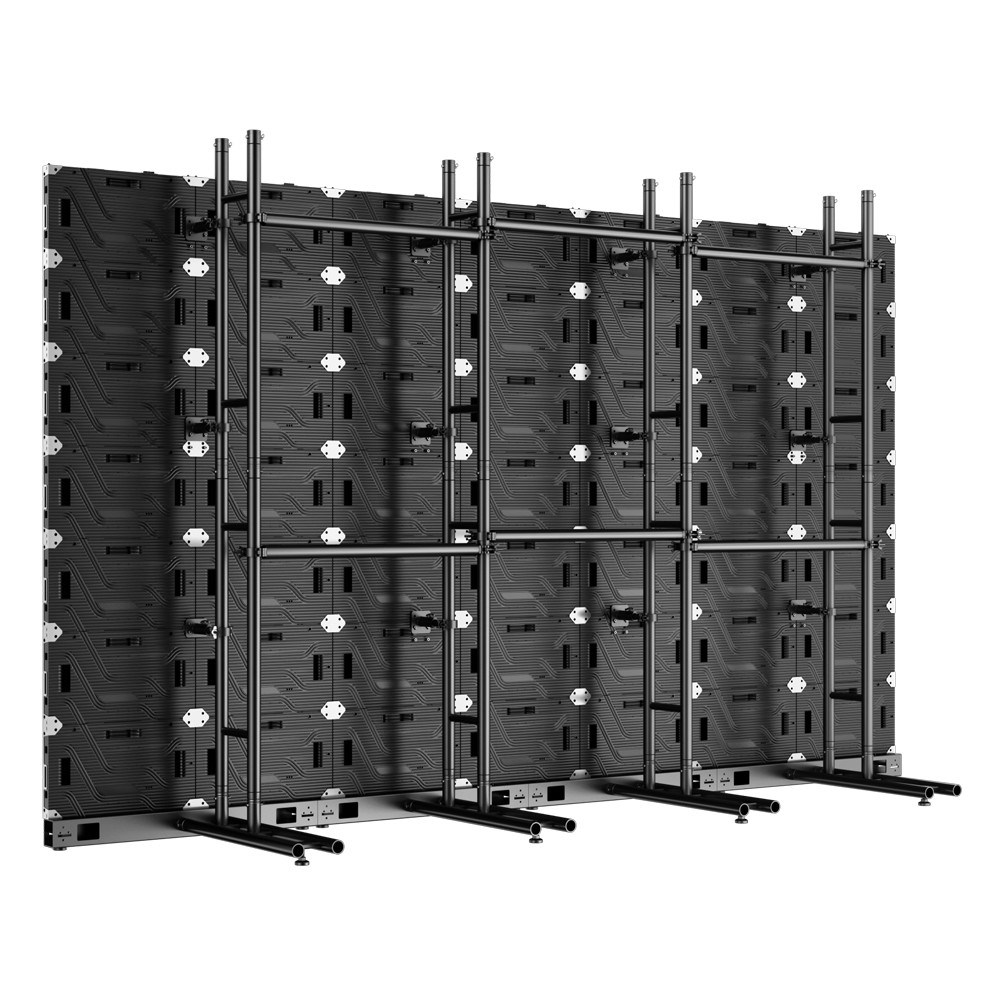

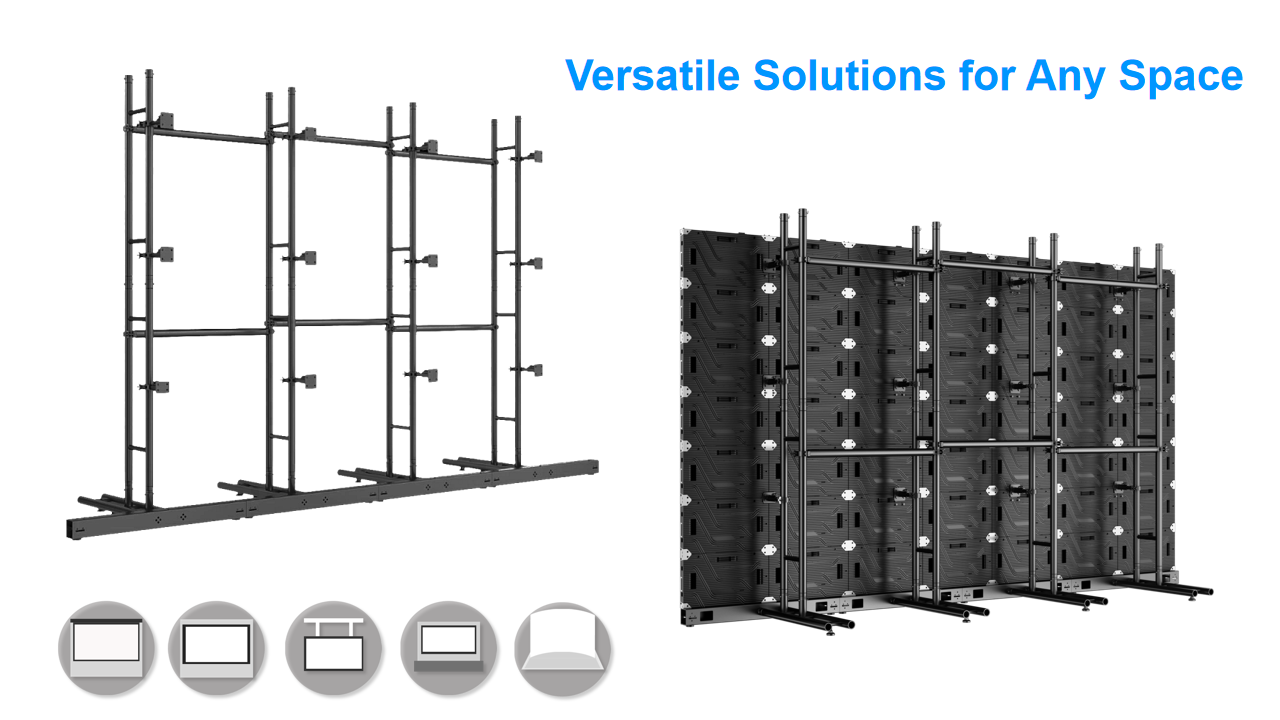

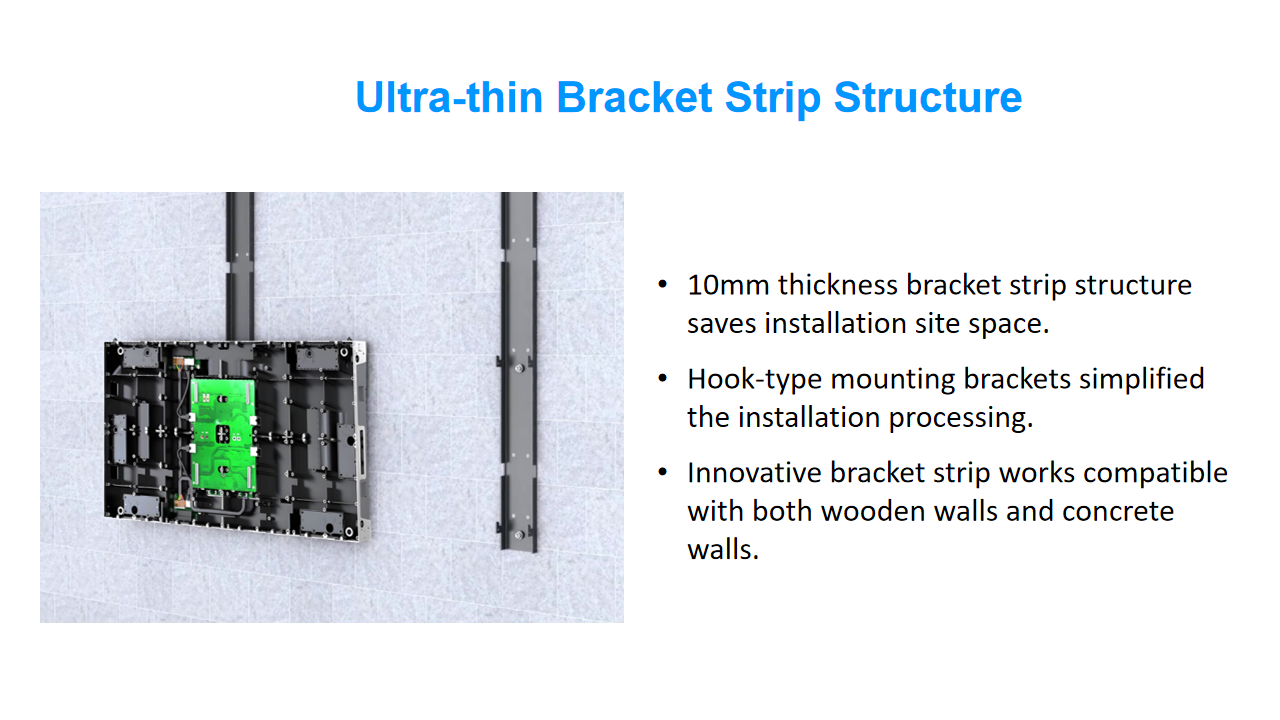

Installation Wall-mounting / Stacking / Hanging installations
Screen Shape Straight
Color Enhancement Yes
Brightness calibration Yes
Hot swapping Yes
Wireless connection Yes
Modulization Yes


Applications

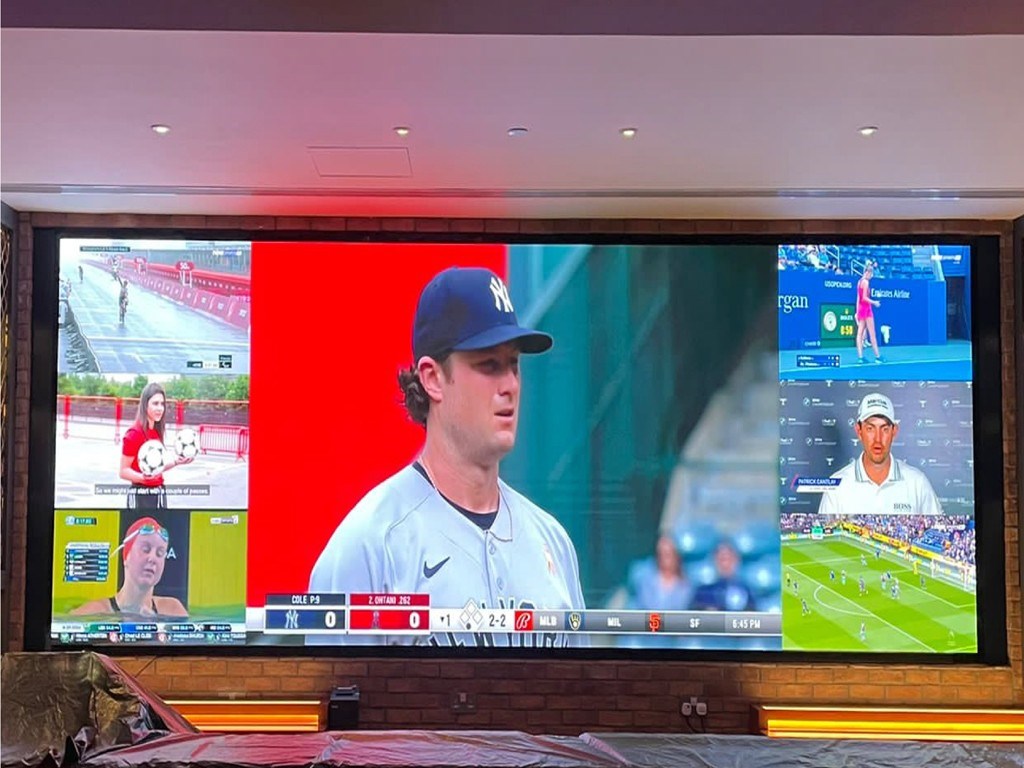

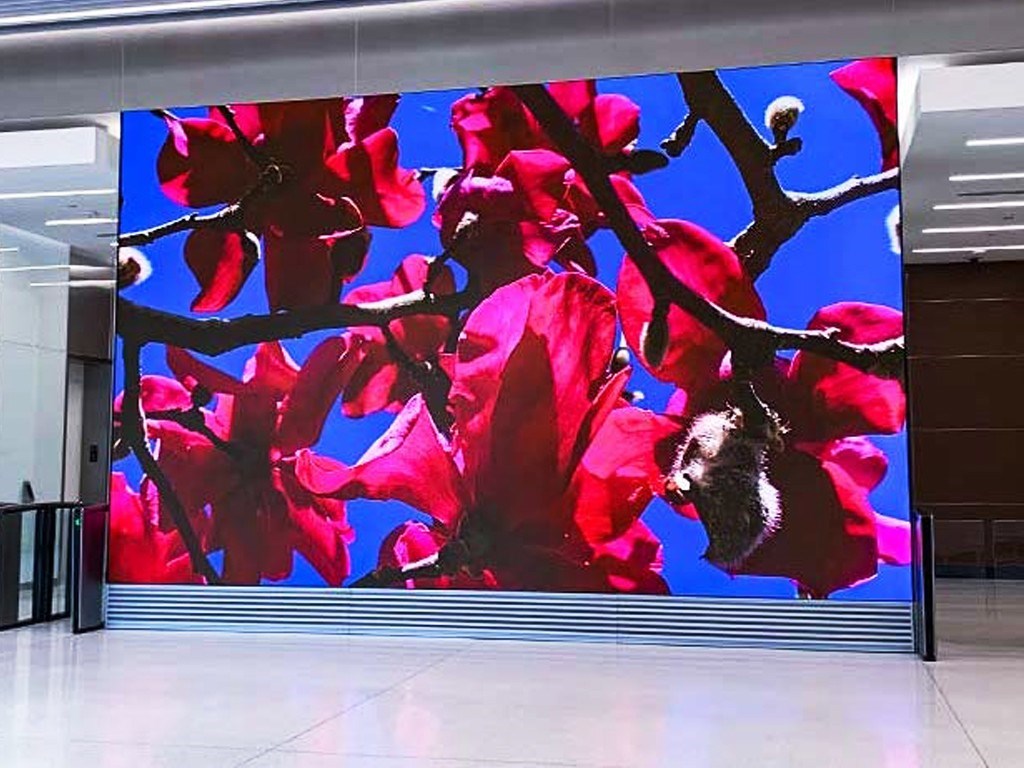

RGBVISIONLED UTV LED Small Pixel Pitch Screen in Monitoring Application

RGBVISIONLED UTV LED Small Pixel Pitch Screen in Monitoring Application

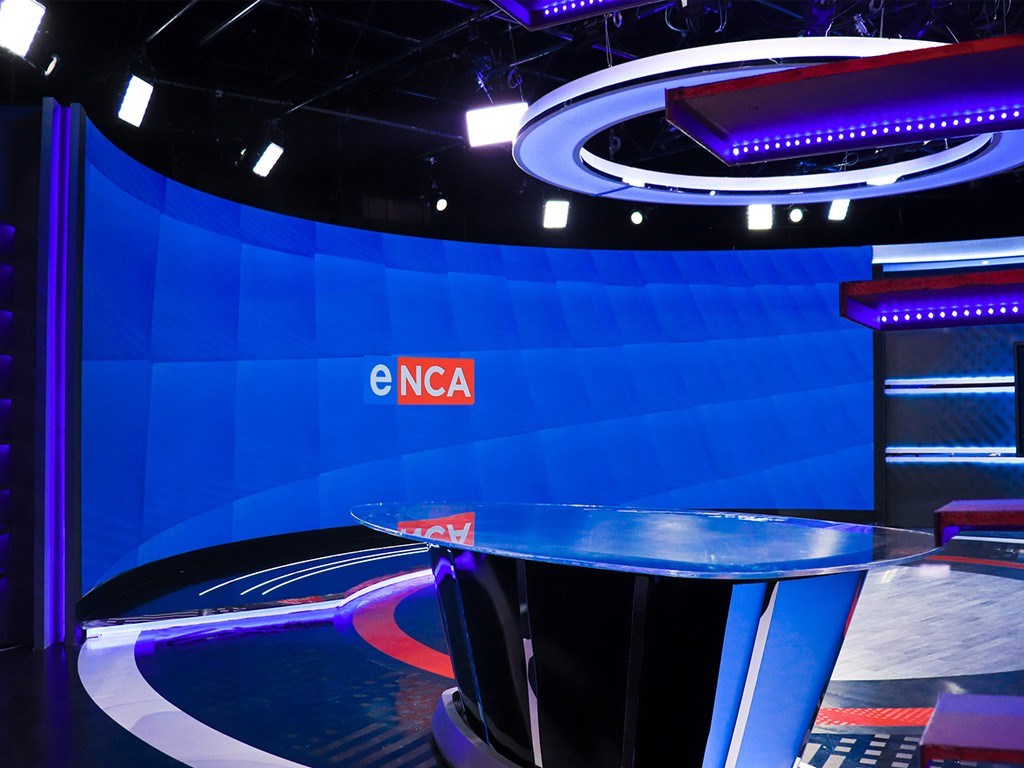

RGBVISIONLED UTV LED Small Pixel Pitch Screen in Brodcasting Application

RGBVISIONLED UTV LED Small Pixel Pitch Screen in Brodcasting Application

RGBVISIONLED UTV LED Small Pixel Pitch Screen in Commercial Application

RGBVISIONLED UTV LED Small Pixel Pitch Screen in Commercial Application
