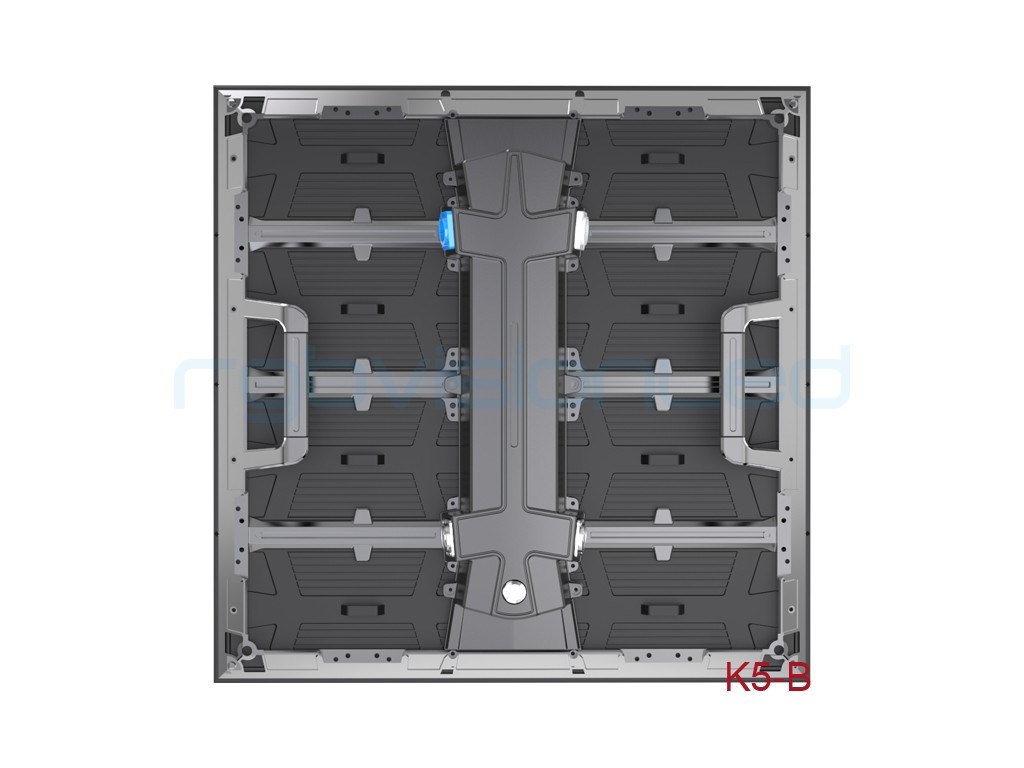

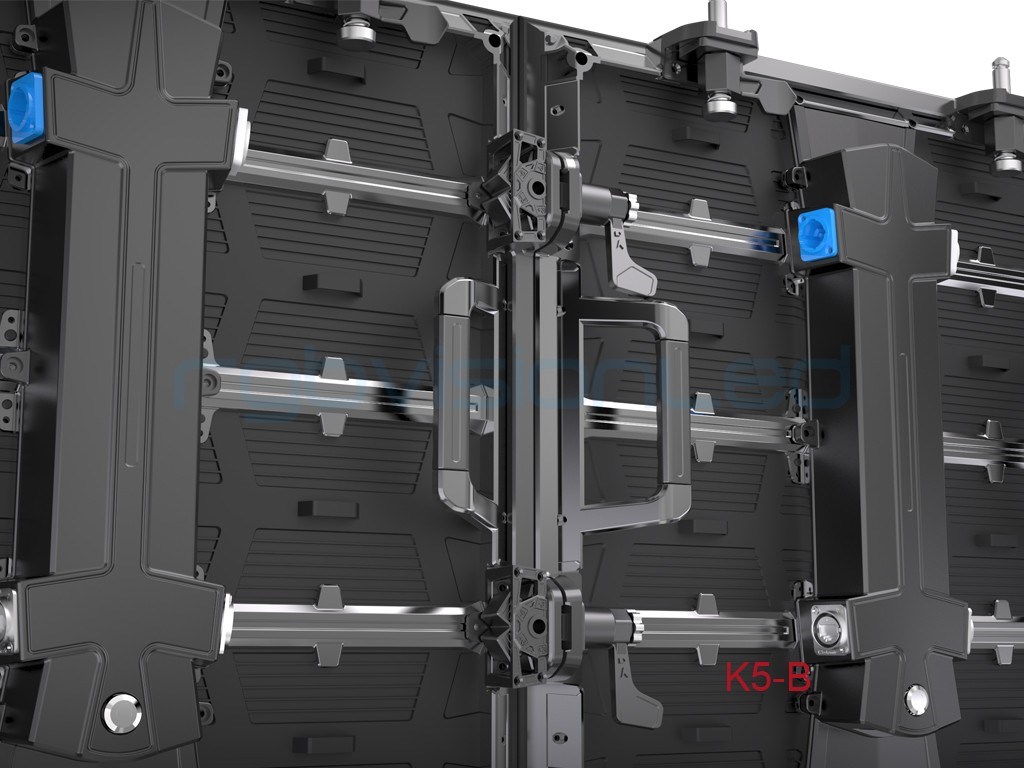

K5-B Series
Right Angle LED Rental Screen Solution

* 500x500mm Cabinet with 45 degree bevel edge
* P2.6 / P2.9 / P3.9 indoor&outdoor

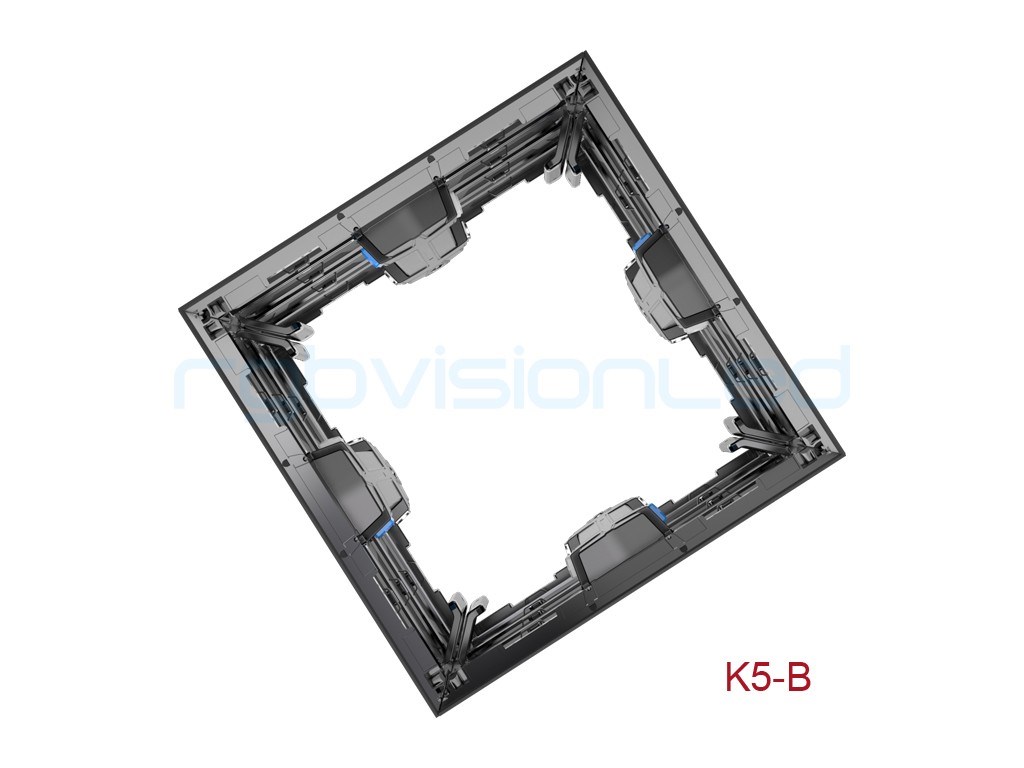

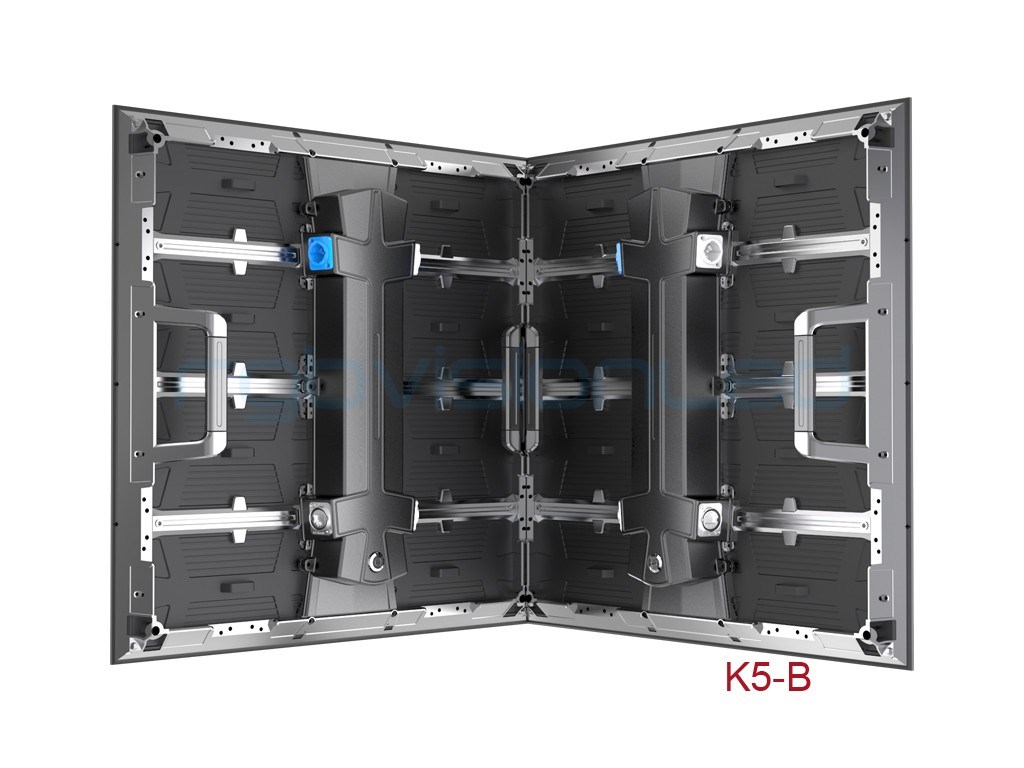

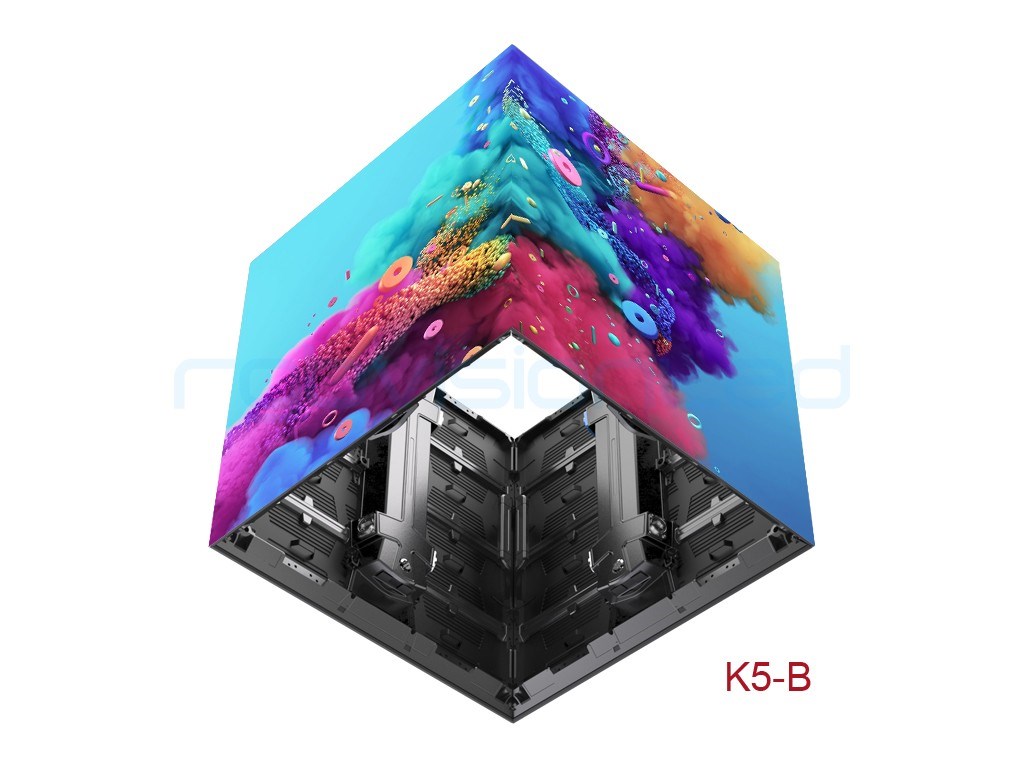

* Straight & 90 degree right angle shape available
* High-integrated power engine
Quantity
-
+
Stock:
0
1
Product Description

King Series Rental Screen
Indoor Outdoor
Model K-1.9 K-2.6 K-2.9 K-3.9 K-3.9 K-4.8
Pixel Pitch 1.95 mm 2.6 mm 2.9 mm 3.9 mm 3.9 mm 4.8 mm
Pixel Density 262144 dots/sq.m 147456 dots/sq.m 112896 dots/sq.m 65536 dots/sq.m 65536 dots/sq.m 43264 dots/sq.m
LED Type SMD1515 SMD1515 SMD1515 SMD 2020 SMD 1921
Scan Mode 1/32 S 1/24 S 1/21 S 1/16 S 1/16 S 1/13 S
Refresh Rate ≥ 3840Hz
Module Size 500x125 mm
Module Resolution 256x64 pxl 192x48 pxl 168x42 pxl 128x32 pxl 128x32 pxl 104x26 pxl
Cabinet Size
500x500x65 mm (K5 / K5-B / K5-C / K5-S)
500x1000x65 mm (K10)
Cabinet Resolution 256x256 pxl 192x192 pxl
168x168 pxl
168x336 pxl
128x128 pxl
128x256 pxl
128x128 pxl
128x256 pxl
104x104 pxl
104x208 pxl
Brightness 700-900 Nits optional 700-900 Nits optional 800-1100 Nits optional 900-1200 Nits optional 4000-5000 Nits optional 4000-5000 Nits optional
Viewing Angle: (H/V) 170+/170+ Degree
Cabinet Material Die-casting Aluminum
Cabinet Weight 6.8 KG 6.8 KG 6.8 KG / 11.6KG 6.8 KG / 11.6KG 6.8 KG / 11.6KG 6.8 KG / 11.6KG
Input Voltage:  AC100-240V/50-60Hz
Max Power C. 800 W/sq.m
Average Power C. 150-250 W/sq.m
Life Span ≥ 100,00 Hrs
IP Rate IP63 IP65
Maintenance Access Front / rear access maintenance
Max Stacking 30 panels
Installation Wall-mounting / Stacking / Hanging installations

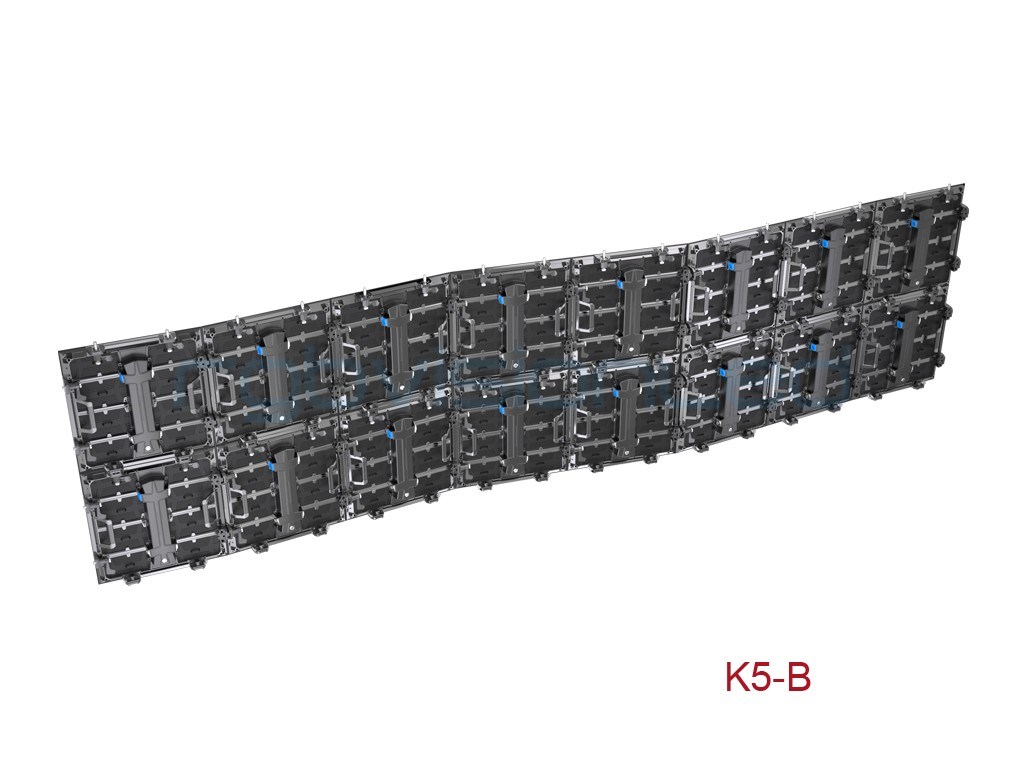

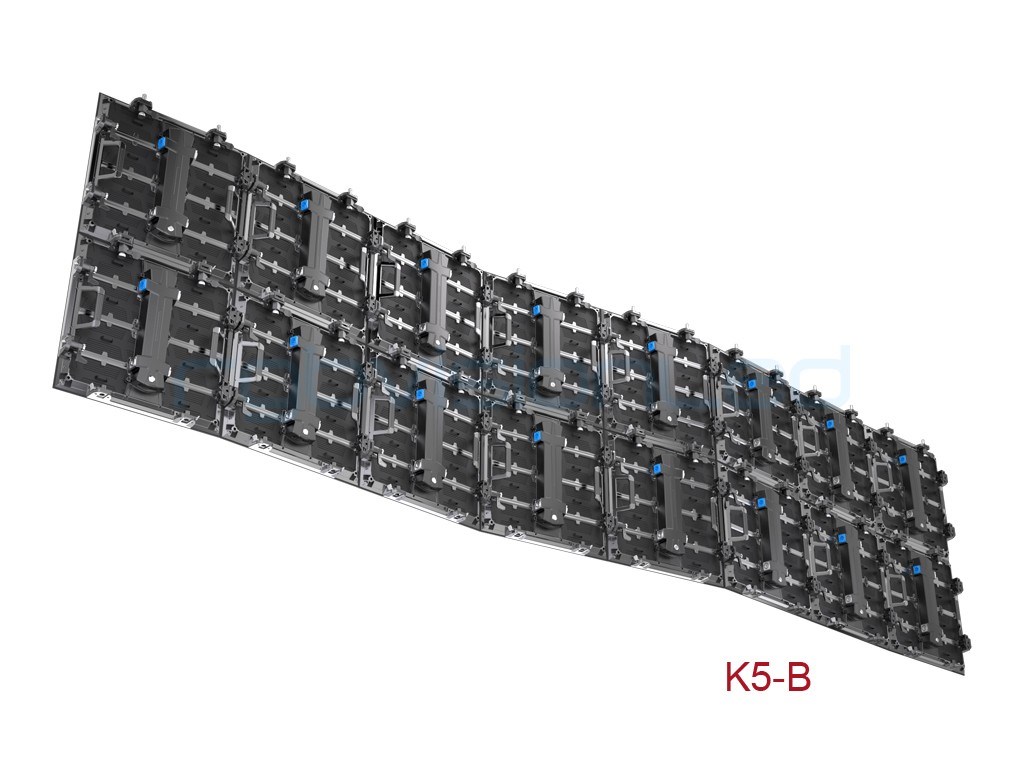

Screen Shape Straight / Curved / Flexible(K5-S only)
Color Enhancement Yes
Hot swapping Yes
Cable tie passing-hole design Yes
Corner protection Yes
